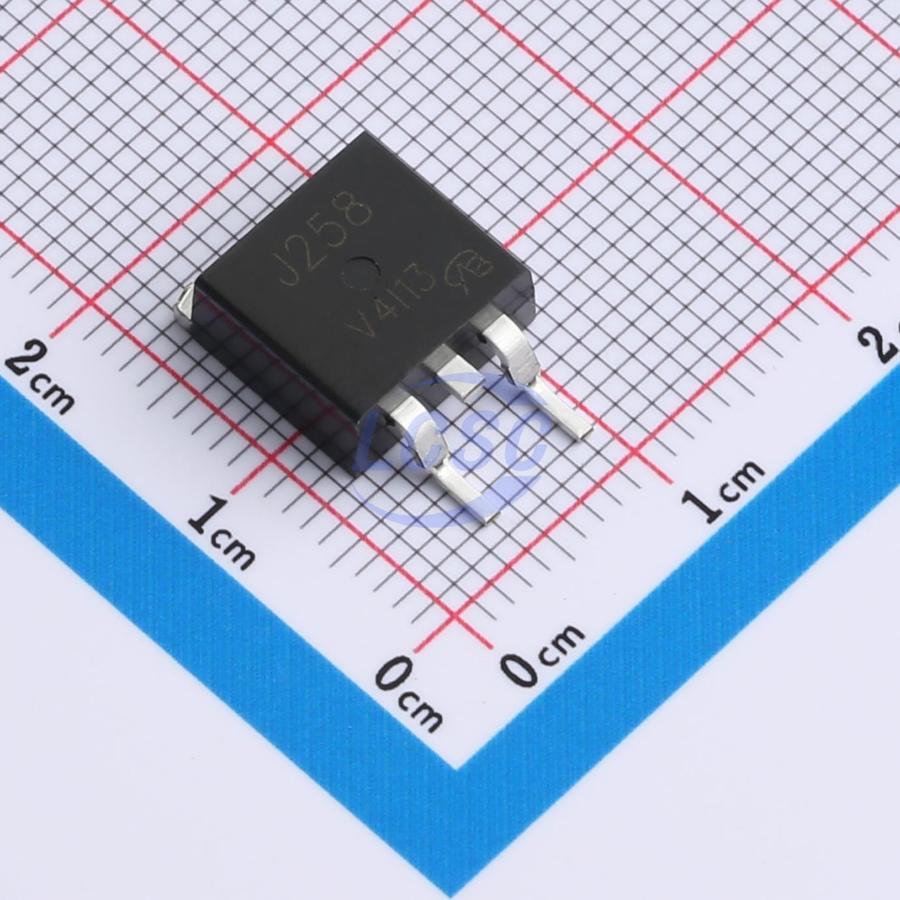

2SJ258-VB
P-Channel 60V 35A 6.1W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET P-CH 60V 35A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SJ258-VB
- Store part #
- C41369945
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C41369945
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹123.52 | ₹123.52 |
| 10+ | ₹99.36 | ₹993.60 |
| 50+ | ₹87.38 | ₹4,369.00 |
| 100+ | ₹75.41 | ₹7,541.00 |
| 500+ | ₹68.28 | ₹34,140.00 |
| 1,000+ | ₹64.71 | ₹64,710.00 |
1 × ₹123.52
₹123.52
excl. GST
₹145.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
2SJ258-VB
₹123.52 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+100℃
- Output Capacitance(Coss)
- 200pF
- Current - Continuous Drain(Id)
- 35A
- Ciss-Input Capacitance
- 1.65nF
- Pd - Power Dissipation
- 6.1W
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 48mΩ@10V;60mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
Applications
- Power Switch - Load Switch for High-Current Applications - DC/DC Converter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% tested for gate resistance (Rg) and unclamped inductive switching (UIS)
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | F9Z34NS-VB#C20417627VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 50 | ₹166.98 · 50 in stock | View |
 | 2SJ476-01S-VB#C29778752VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹123.52 · 10 in stock | View |
 | RF1S30P06SM-VB#C29779181VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 60 | ₹147.61 · 60 in stock | View |
 | F9Z24NS-VB#C20417751VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 7 | ₹123.52 · 7 in stock | View |
 | IRF9Z24NSPBF-VB#C18212476VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 13 | ₹150.81 · 13 in stock | View |
