VBsemi ElecDatasheet (PDF)

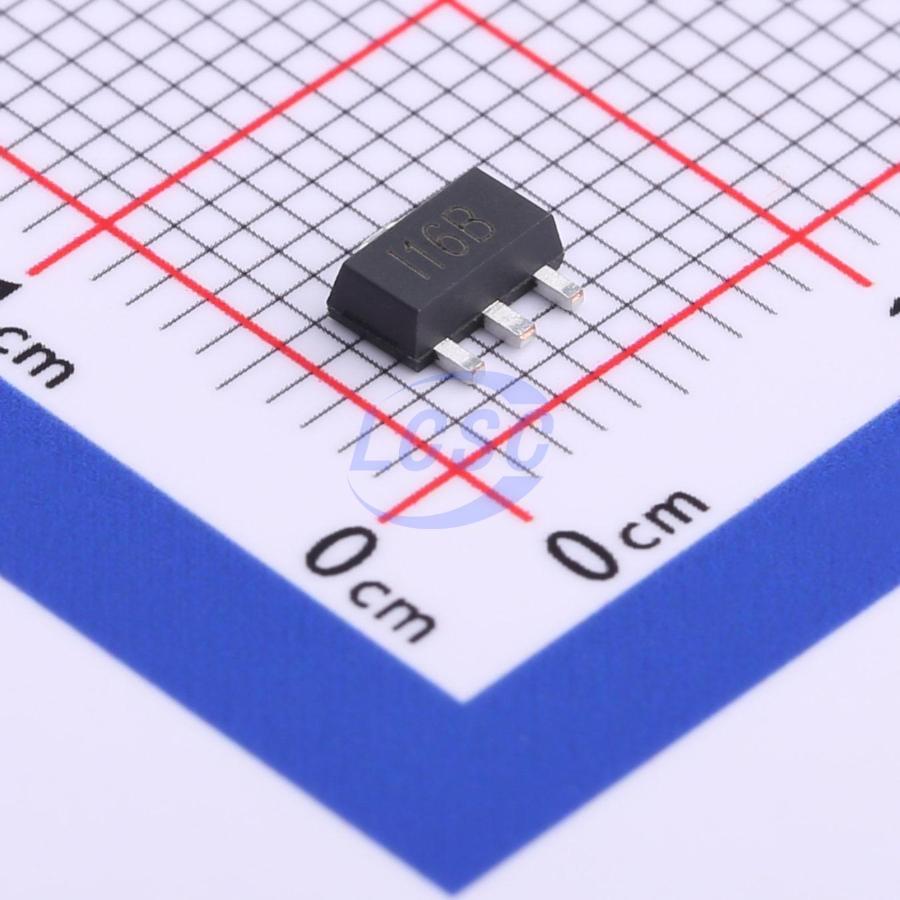

2SK1717-VB
N-Channel 60V 4.7A 5.3W Surface Mount SOT-89
SOT-89RoHSActive
MOSFET N-CH 60V 4.7A SOT-89
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK1717-VB
- Store part #
- C879078
- Package / case
- SOT-89
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C879078
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.43 | ₹177.15 |
| 50+ | ₹28.34 | ₹1,417.00 |
| 150+ | ₹25.30 | ₹3,795.00 |
| 1,000+ | ₹19.94 | ₹19,940.00 |
| 2,000+ | ₹18.24 | ₹36,480.00 |
| 5,000+ | ₹17.24 | ₹86,200.00 |
5 × ₹35.43
₹177.15
excl. GST
₹209.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
2SK1717-VB
₹177.15 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 120pF
- Ciss-Input Capacitance
- 800pF
- Pd - Power Dissipation
- 5.3W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 4.7A
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 76mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 22nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Overview
Applications
- Portable device load switch
Key features
- Halogen-free
- Trench power MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SK1273-VB#C557926VBsemi Elec · SOT-89 | VBsemi Elec | SOT-89 | 530 | ₹43.90 · 530 in stock | View |
 | 2SK1470-VB#C557927VBsemi Elec · SOT-89 | VBsemi Elec | SOT-89 | 30 | ₹35.52 · 30 in stock | View |
 | 2SK2463-VB#C20755285VBsemi Elec · SOT-89 | VBsemi Elec | SOT-89 | 30 | ₹34.38 · 30 in stock | View |
 | 2SK1764-VB#C5240589VBsemi Elec · SOT-89 | VBsemi Elec | SOT-89 | 180 | ₹42.97 · 180 in stock | View |
 | 2SK2857-VB#C724951VBsemi Elec · SOT-89 | VBsemi Elec | SOT-89 | 25 | ₹38.88 · 25 in stock | View |
