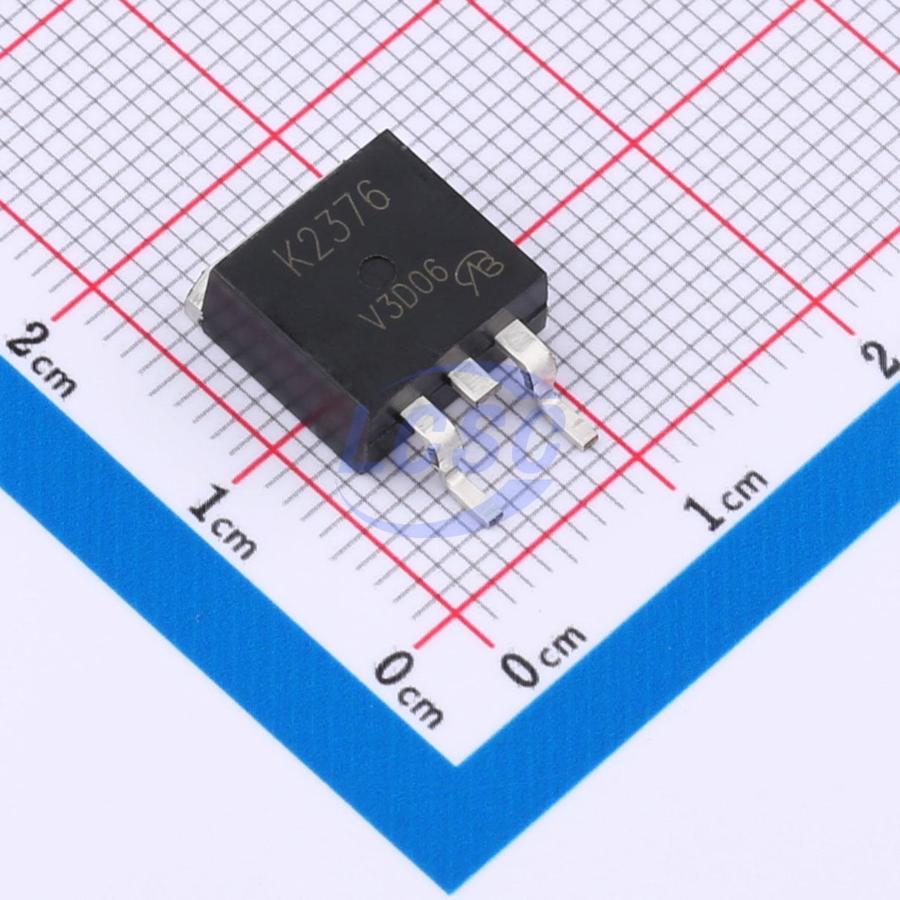

2SK2376-VB
N-Channel 60V 75A 136W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 60V 75A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK2376-VB
- Store part #
- C2680889
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44 in stock
#C2680889
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹128.19 | ₹128.19 |
| 10+ | ₹104.11 | ₹1,041.10 |
| 50+ | ₹92.16 | ₹4,608.00 |
| 100+ | ₹80.23 | ₹8,023.00 |
| 500+ | ₹73.11 | ₹36,555.00 |
| 1,000+ | ₹69.54 | ₹69,540.00 |
1 × ₹128.19
₹128.19
excl. GST
₹151.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
2SK2376-VB
₹128.19 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 75A
- Ciss-Input Capacitance
- 4.3nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 11mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.416 g
Overview
Applications
- Synchronous rectification
- Point-of-load (POL), intermediate bus converter (IBC)
- Secondary side
- N-channel MOSFET
Key features
- Junction temperature 175 °C
- TrenchFET power MOSFET
- RoHS compliant
- N-channel MOSFET
