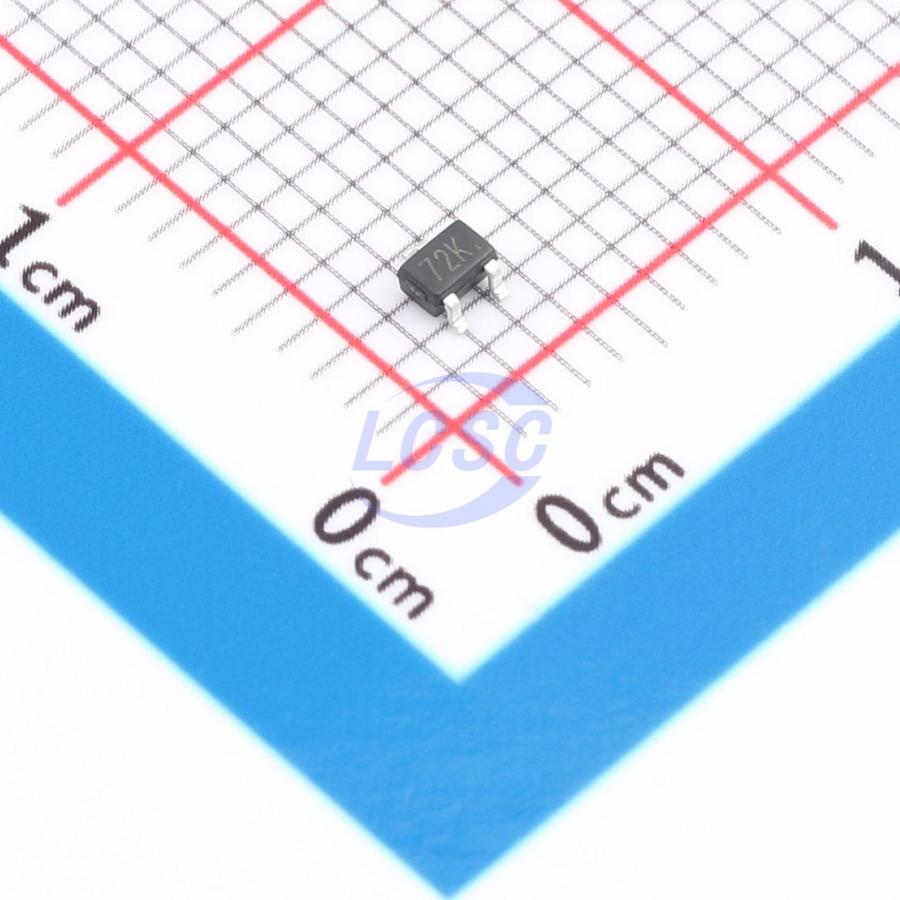

2SK2858-TP
250mW 60V 300mA 1.45Ω@10V 1 N-channel N-Channel SOT-323 Single FETs, MOSFETs
SOT-323RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 2SK2858-TP
- Store part #
- C51939518
- Package / case
- SOT-323
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,960 in stock
#C51939518
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.83 | ₹56.60 |
| 200+ | ₹2.20 | ₹440.00 |
| 600+ | ₹1.84 | ₹1,104.00 |
| 3,000+ | ₹1.63 | ₹4,890.00 |
| 9,000+ | ₹1.44 | ₹12,960.00 |
| 21,000+ | ₹1.34 | ₹28,140.00 |
20 × ₹2.83
₹56.60
excl. GST
₹66.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
2SK2858-TP
₹56.60 for 20 + GST
Specifications
- Output Capacitance(Coss)
- 7.3pF
- Ciss-Input Capacitance
- 47.2pF
- Pd - Power Dissipation
- 250mW
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 300mA
- Reverse Transfer Capacitance (Crss)
- 4.7pF
- RDS(on)
- 1.45Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 440pC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
Applications
- Switching applications
Key features
- Low on-resistance
- Gate ESD protection up to 2kV HBM
- High-speed switching
- Simple drive circuit
- Easy parallel operation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMBF2202PT1G-TP#C52098261TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,995 | ₹17.49 · 2,995 in stock | View |
 | RU1L002SN-TP#C51886148TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,750 | ₹2.55 · 2,750 in stock | View |
 | DMN65D8LW-TP#C51886149TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 1,950 | ₹2.41 · 1,950 in stock | View |
 | SN7002W#C51886150TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,250 | ₹2.41 · 2,250 in stock | View |
 | 2N7002BKW#C51886151TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 8,200 | ₹2.58 · 8,200 in stock | View |
