VBsemi ElecDatasheet (PDF)

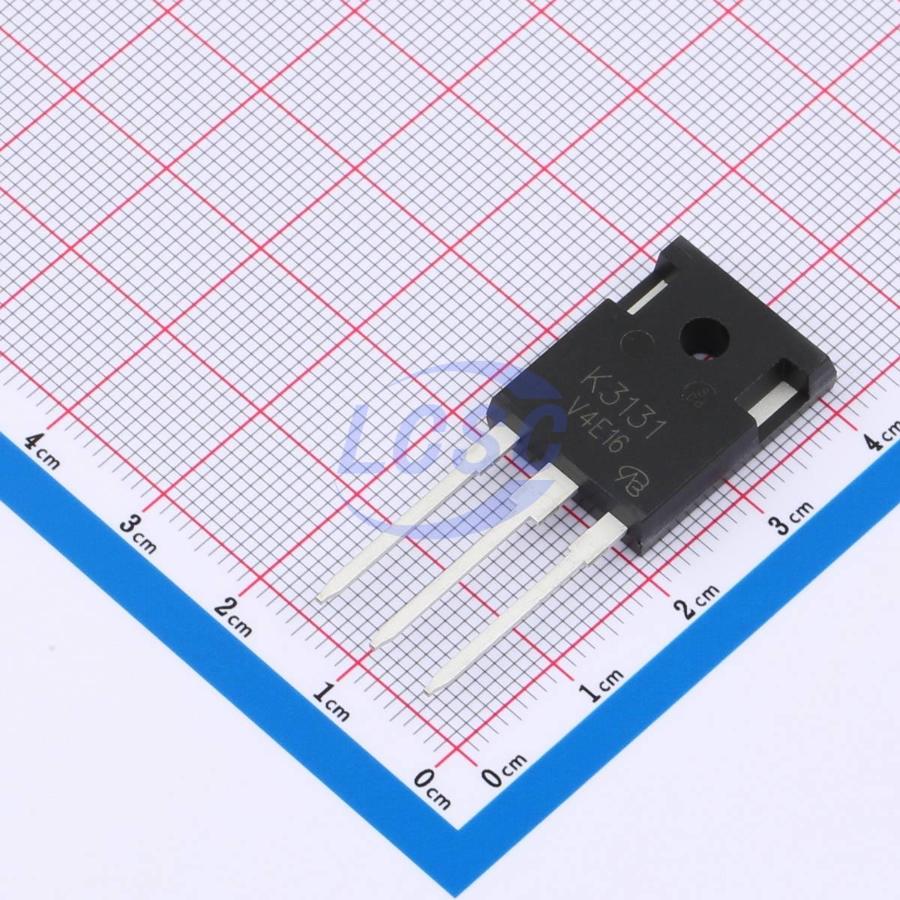

2SK3131-VB
N-Channel 600V 47A 415W Through Hole TO-3P
TO-3PRoHSActive
MOSFET N-CH 600V 47A TO-3P
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK3131-VB
- Store part #
- C22389385
- Package / case
- TO-3P
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22389385
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹729.73 | ₹729.73 |
| 10+ | ₹627.01 | ₹6,270.10 |
| 30+ | ₹564.42 | ₹16,932.60 |
| 90+ | ₹511.91 | ₹46,071.90 |
1 × ₹729.73
₹729.73
excl. GST
₹861.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
2SK3131-VB
₹729.73 for 1 + GST
Specifications
- Drain to Source Voltage
- 600V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 47A
- Output Capacitance(Coss)
- 251pF
- Pd - Power Dissipation
- 415W
- Reverse Transfer Capacitance (Crss)
- 1pF
- RDS(on)
- 60mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 273nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 9.96 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial - Welding - Induction heating - Motor drives - Battery chargers - Renewable energy - Solar (PV inverters)
Key features
- Low figure-of-merit (FOM) Ron×Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra low gate charge (Qg)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IXTQ48N65X2M-VB#C46527466VBsemi Elec · TO-3P | VBsemi Elec | TO-3P | 5 | ₹659.29 · 5 in stock | View |
 | IXFQ28N60P3-VB#C54177234VBsemi Elec · TO-3P | VBsemi Elec | TO-3P | 10 | ₹595.18 · 10 in stock | View |
| FCA47N60-VB#C54176997VBsemi Elec · TO-3P | VBsemi Elec | TO-3P | On request | ₹1,365.04 · 0 in stock | View | |
| FCA47N60F-VB#C54176998VBsemi Elec · TO-3P | VBsemi Elec | TO-3P | On request | ₹1,365.04 · 0 in stock | View | |
| FQA44N30-VB#C54177045VBsemi Elec · TO-3P | VBsemi Elec | TO-3P | On request | ₹1,365.04 · 0 in stock | View | |
