VBsemi ElecDatasheet (PDF)

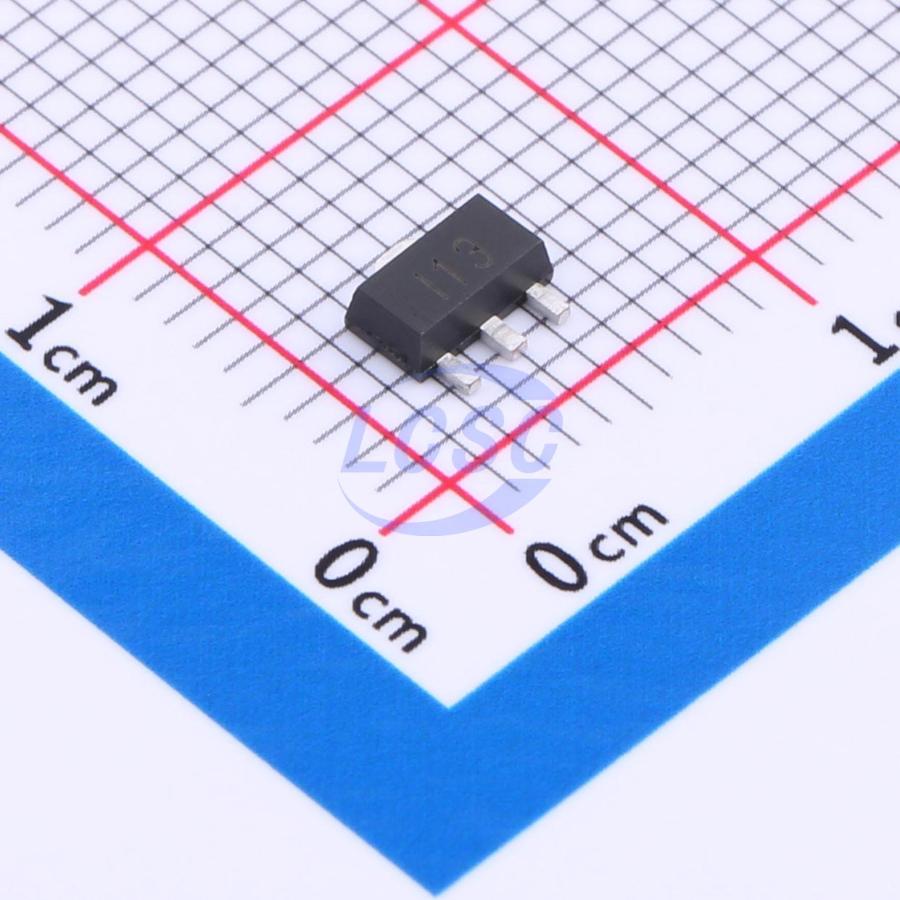

2SK680A-VB
N-Channel 30V 6.8A 4W Surface Mount SOT-89
SOT-89RoHSActive
MOSFET N-CH 30V 6.8A SOT-89
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK680A-VB
- Store part #
- C5179540
- Package / case
- SOT-89
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C5179540
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.11 | ₹170.55 |
| 50+ | ₹27.21 | ₹1,360.50 |
| 150+ | ₹24.25 | ₹3,637.50 |
| 1,000+ | ₹19.74 | ₹19,740.00 |
| 2,000+ | ₹18.10 | ₹36,200.00 |
| 5,000+ | ₹17.11 | ₹85,550.00 |
5 × ₹34.11
₹170.55
excl. GST
₹201.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
2SK680A-VB
₹170.55 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 220pF
- Ciss-Input Capacitance
- 1.2nF
- Pd - Power Dissipation
- 4W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 6.8A
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 30mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 22nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 600mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.14 g
Overview
Applications
- Load switch for portable devices
Key features
- Halogen-free
- Trench power MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CEA3252-VB#C724998VBsemi Elec · SOT-89 | VBsemi Elec | SOT-89 | 495 | ₹35.48 · 495 in stock | View |
 | APM3054NDC-TRLG-VB#C5355736VBsemi Elec · SOT-89 | VBsemi Elec | SOT-89 | 10 | ₹33.86 · 10 in stock | View |
 | RQA0009TXDQS-VB#C7568909VBsemi Elec · SOT-89 | VBsemi Elec | SOT-89 | 95 | ₹50.05 · 95 in stock | View |
 | 2SK2211-VB#C29778764VBsemi Elec · SOT-89 | VBsemi Elec | SOT-89 | 5 | ₹33.04 · 5 in stock | View |
 | RHP030N03T100-VB#C29779183VBsemi Elec · SOT-89 | VBsemi Elec | SOT-89 | 5 | ₹33.04 · 5 in stock | View |
