LittelfuseDatasheet (PDF)

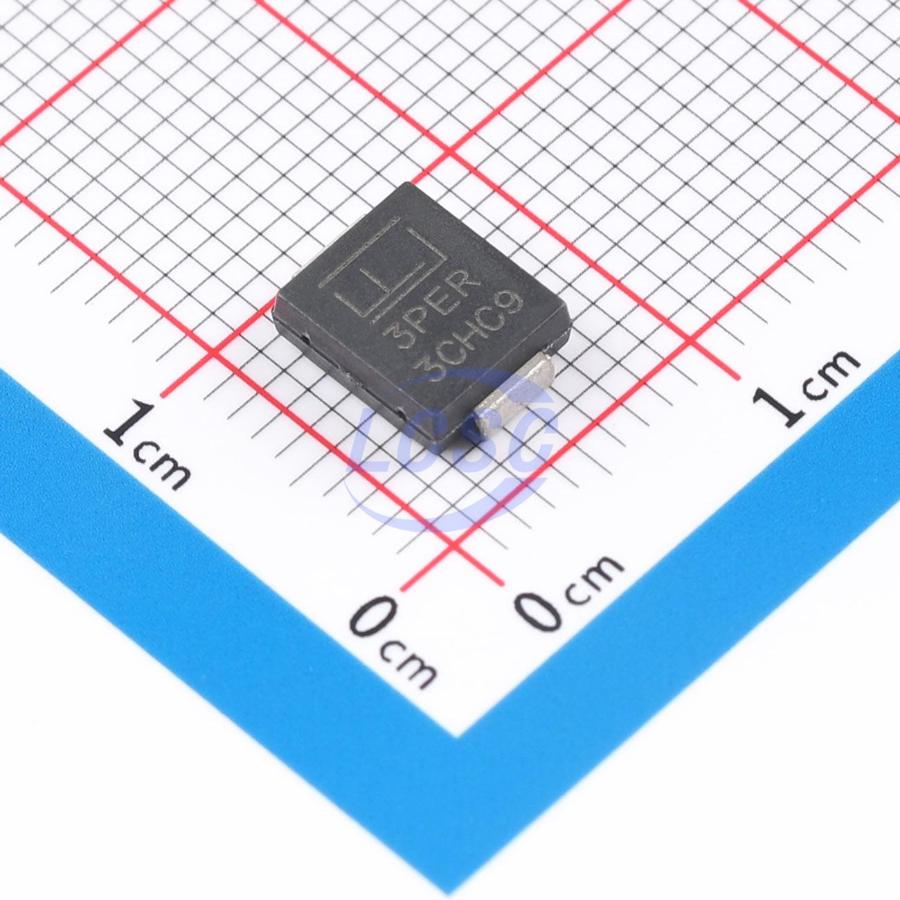

3.0SMCJ17A
27.6VC Clamp 108.7A Ipp TVS DIODE DO-214AB(SMC)
DO-214AB(SMC)ROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- 3.0SMCJ17A
- Store part #
- C3718462
- Package / case
- DO-214AB(SMC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C3718462
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.77 | ₹134.77 |
| 10+ | ₹132.62 | ₹1,326.20 |
| 30+ | ₹131.12 | ₹3,933.60 |
| 100+ | ₹129.61 | ₹12,961.00 |
1 × ₹134.77
₹134.77
excl. GST
₹159.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
3.0SMCJ17A
₹134.77 for 1 + GST
Specifications
- Clamping Voltage
- 27.6V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 108.7A
- Peak Pulse Power Dissipation (Ppp)
- 3kW
- Number of Channels
- 1
- Voltage - Breakdown
- 18.9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 17V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.27 g
Overview
The 3.0SMCJ Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Key features
- Excellent clamping capability
- Low incremental surge resistance
- High temperature to reflow soldering guaranteed: 260°C/40sec
- VBR@TJ = VBR@≥25°C × (1 + aT × (TJ - 25)) (aT: Temperature Coefficient, typical value is 0.1%)
- UL Recognized compound meeting flammability rating V-0.
- Meet MSL level1, per J-STD-020, LF maximun peak of 260°C
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.01)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMDJ17A#C438155Jingdao Microelectronics · SMC | Jingdao Microelectronics | SMC | 690 | ₹6.63 · 690 in stock | View |
 | SMDJ17A#C310108Brightking · SMC(DO-214AB) | Brightking | SMC(DO-214AB) | 3,005 | ₹35.23 · 3,005 in stock | View |
 | SMDJ17A#C2990192Liown · SMC(DO-214AB) | Liown | SMC(DO-214AB) | 30 | ₹29.23 · 30 in stock | View |
 | SMDJ17A#C3007584SUNMATE Elec · SMC(DO-214AB) | SUNMATE Elec | SMC(DO-214AB) | 490 | ₹27.99 · 490 in stock | View |
 | SMDJ17A#C4154719TWGMC · DO-214AB(SMC) | TWGMC | DO-214AB(SMC) | 365 | ₹32.44 · 365 in stock | View |
