DIODESDatasheet (PDF)

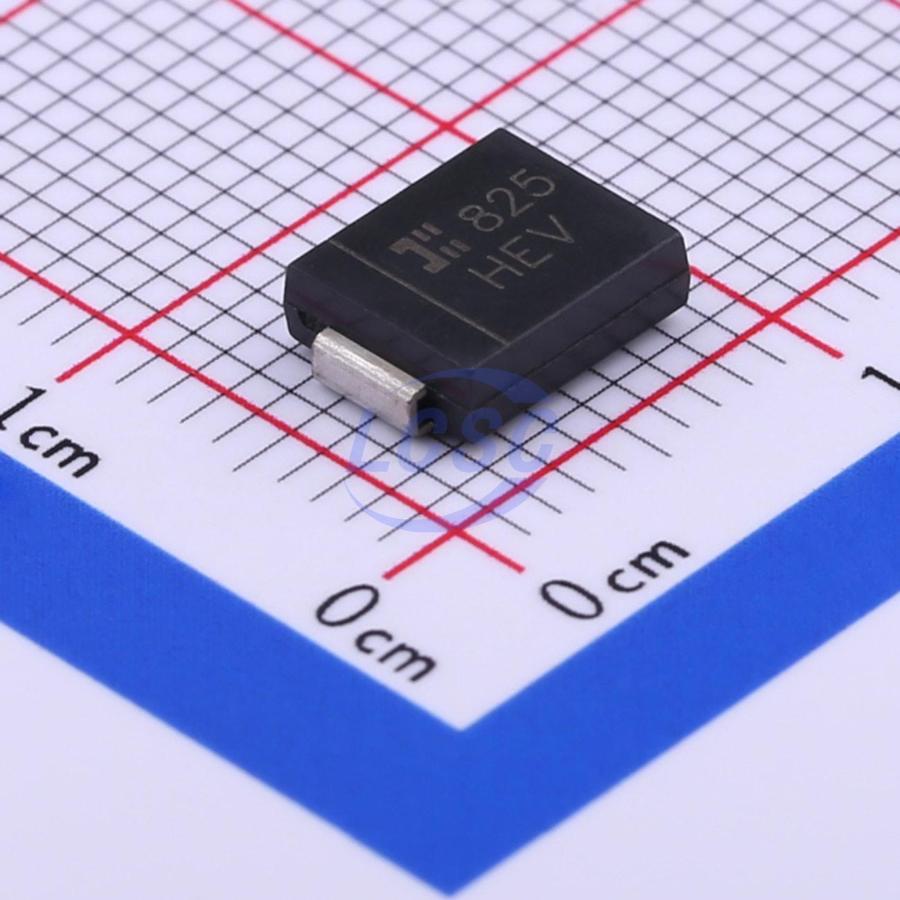

3.0SMCJ20A-13
32.4VC Clamp 62.6A Ipp TVS DIODE SMC
SMCROHS3 CompliantActive
TVS DIODE 20VWM 32.4VC SMC
- Manufacturer
- DIODES
- Manufacturer part #
- 3.0SMCJ20A-13
- Store part #
- C439733
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
136 in stock
#C439733
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹139.50 | ₹139.50 |
| 10+ | ₹137.14 | ₹1,371.40 |
| 30+ | ₹135.63 | ₹4,068.90 |
| 100+ | ₹134.13 | ₹13,413.00 |
1 × ₹139.50
₹139.50
excl. GST
₹164.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
3.0SMCJ20A-13
₹139.50 for 1 + GST
Specifications
- Clamping Voltage
- 32.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 62.6A
- Peak Pulse Power Dissipation (Ppp)
- 3kW
- Number of Channels
- 1
- Voltage - Breakdown
- 22.2V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.388 g
Overview
Key features
- 3000W Peak Pulse Power Dissipation
- 5V to 170V Standoff Voltages
- Uni - Directional and Bi - Directional
- IEC - 61000 - 4 - 2 ESD 30kV (Air), 30kV (Contact)
- Human Body Model (HBM) 8kV; Charged Device Model (CDM) 1kV; Machine Model (MM) 800V
- Glass Passivated Die Construction
- Excellent Clamping Capability
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- This part is qualified to JEDEC standards (as references in AEC - Q) for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMDJ20A#C3007586SUNMATE Elec · SMC(DO-214AB) | SUNMATE Elec | SMC(DO-214AB) | 475 | ₹27.99 · 475 in stock | View |
 | SMDJ20A#C2990194Liown · SMC(DO-214AB) | Liown | SMC(DO-214AB) | 535 | ₹20.74 · 535 in stock | View |
 | SMDJ20A#C2842375BORN · SMC(DO-214AB) | BORN | SMC(DO-214AB) | 2,750 | ₹47.15 · 2,750 in stock | View |
 | SMDJ20A#C3012600PAKER · SMC(DO-214AB) | PAKER | SMC(DO-214AB) | 100 | ₹23.67 · 100 in stock | View |
 | SMDJ20A#C438157Jingdao Microelectronics · SMC | Jingdao Microelectronics | SMC | 215 | ₹24.52 · 215 in stock | View |
