LittelfuseDatasheet (PDF)

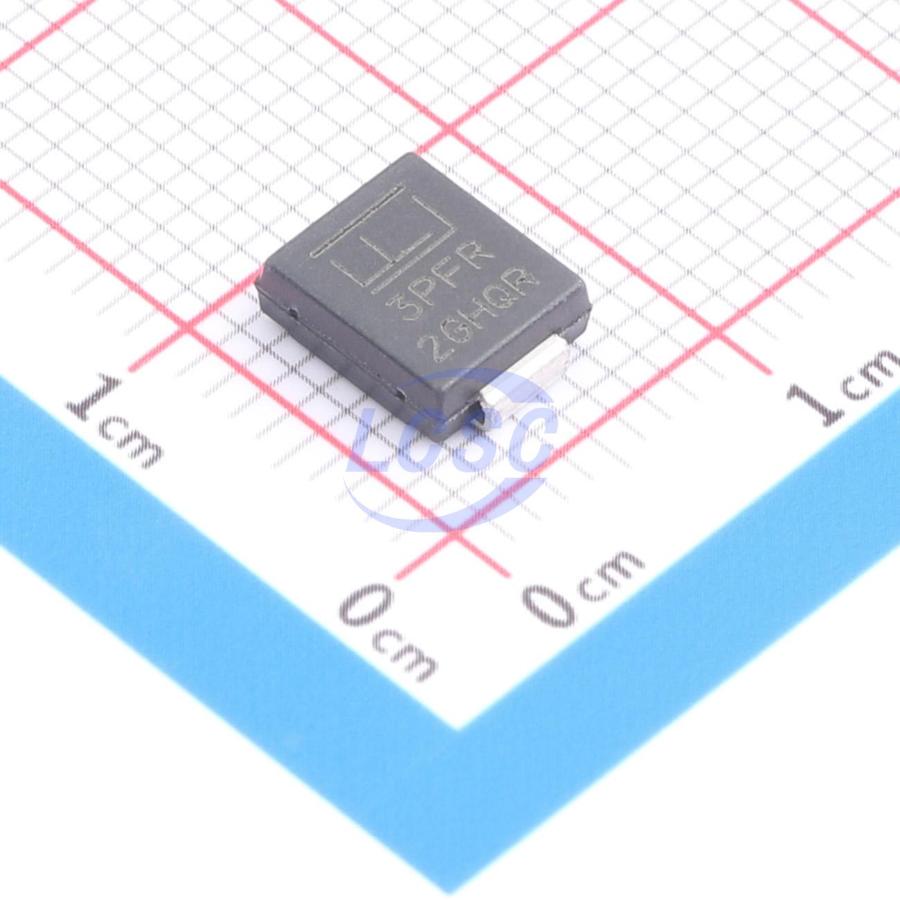

3.0SMCJ40A
64.5VC Clamp 46.5A Ipp TVS DIODE DO-214AB(SMCJ)
DO-214AB(SMCJ)ROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- 3.0SMCJ40A
- Store part #
- C3719153
- Package / case
- DO-214AB(SMCJ)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
84 in stock
#C3719153
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹185.35 | ₹185.35 |
| 10+ | ₹159.28 | ₹1,592.80 |
| 30+ | ₹144.93 | ₹4,347.90 |
| 100+ | ₹128.86 | ₹12,886.00 |
| 500+ | ₹121.69 | ₹60,845.00 |
| 1,000+ | ₹118.42 | ₹1,18,420.00 |
1 × ₹185.35
₹185.35
excl. GST
₹218.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
3.0SMCJ40A
₹185.35 for 1 + GST
Specifications
- Clamping Voltage
- 64.5V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 46.5A
- Peak Pulse Power Dissipation (Ppp)
- 3kW
- Number of Channels
- 1
- Voltage - Breakdown
- 44.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 40V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.496 g
Overview
The 3.0SMCJ Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Key features
- Excellent clamping capability
- Low incremental surge resistance
- High temperature to reflow soldering guaranteed: 260°C/40sec
- VBR@TJ = VBR@≥25°C × (1 + aT × (TJ - 25)) (aT: Temperature Coefficient, typical value is 0.1%)
- UL Recognized compound meeting flammability rating V-0.
- Meet MSL level1, per J-STD-020, LF maximun peak of 260°C
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.01)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPSMD40A#C1975821Littelfuse · DO-214AB(SMCJ) | Littelfuse | DO-214AB(SMCJ) | 83 | ₹149.78 · 83 in stock | View |
 | SMDJ40A#C2996934SETsafe | SETfuse · DO-214AB | SETsafe | SETfuse | DO-214AB | 2,250 | ₹16.62 · 2,250 in stock | View |
 | SMDJ40A#C438165Jingdao Microelectronics · SMC | Jingdao Microelectronics | SMC | 2,590 | ₹28.05 · 2,590 in stock | View |
 | SMDJ40A#C52204453GOODWORK · SMC | GOODWORK | SMC | 200 | ₹41.50 · 200 in stock | View |
 | SMDJ40A#C2828507ZHIDE · SMC(DO-214AB) | ZHIDE | SMC(DO-214AB) | 75 | ₹39.27 · 75 in stock | View |
