LittelfuseDatasheet (PDF)

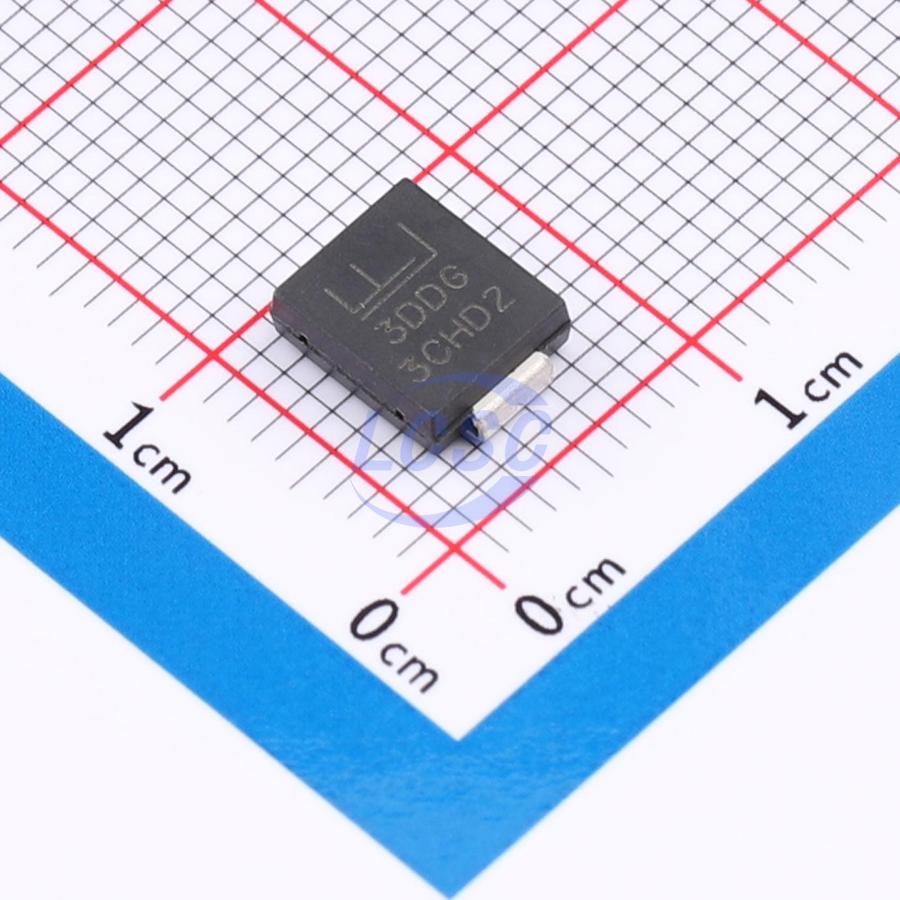

3.0SMCJ6.0CA
10.3VC Clamp 1456.5A@8/20us Ipp TVS DIODE DO-214AB
DO-214ABROHS3 CompliantActive
TVS DIODE 6VWM 10.3VC DO-214AB
- Manufacturer
- Littelfuse
- Manufacturer part #
- 3.0SMCJ6.0CA
- Store part #
- C3718867
- Package / case
- DO-214AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
96 in stock
#C3718867
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹158.63 | ₹158.63 |
| 10+ | ₹156.70 | ₹1,567.00 |
| 30+ | ₹155.41 | ₹4,662.30 |
| 100+ | ₹154.33 | ₹15,433.00 |
1 × ₹158.63
₹158.63
excl. GST
₹187.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
3.0SMCJ6.0CA
₹158.63 for 1 + GST
Specifications
- Clamping Voltage
- 10.3V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 1.4565kA@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 3kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 7.37V
- type
- TVS
- Reverse Leakage Current (Ir)
- 800uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.889 g
Overview
The 3.0SMCJ Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Key features
- Excellent clamping capability
- Low incremental surge resistance
- High temperature to reflow soldering guaranteed: 260°C/40sec
- VBR@TJ = VBR@≥25°C × (1 + aT × (TJ - 25)) (aT: Temperature Coefficient, typical value is 0.1%)
- UL Recognized compound meeting flammability rating V-0.
- Meet MSL level1, per J-STD-020, LF maximun peak of 260°C
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.01)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMDJ6.0CA#C50917809KUU · SMC | KUU | SMC | 2,970 | ₹33.15 · 2,970 in stock | View |
 | SMDJ6.0CA#C46956797OTW · SMC | OTW | SMC | 3,000 | ₹18.32 · 3,000 in stock | View |
 | SMDJ6.0CA#C49363580HXY MOSFET · SMC | HXY MOSFET | SMC | 70 | ₹34.20 · 70 in stock | View |
 | SMDJ6.0CA#C5270671YFW · DO-214AB(SMC) | YFW | DO-214AB(SMC) | 500 | ₹38.74 · 500 in stock | View |
 | SMDJ6.0CA#C5161567ZHIDE · DO-214AB(SMC) | ZHIDE | DO-214AB(SMC) | 60 | ₹36.42 · 60 in stock | View |
