LittelfuseDatasheet (PDF)

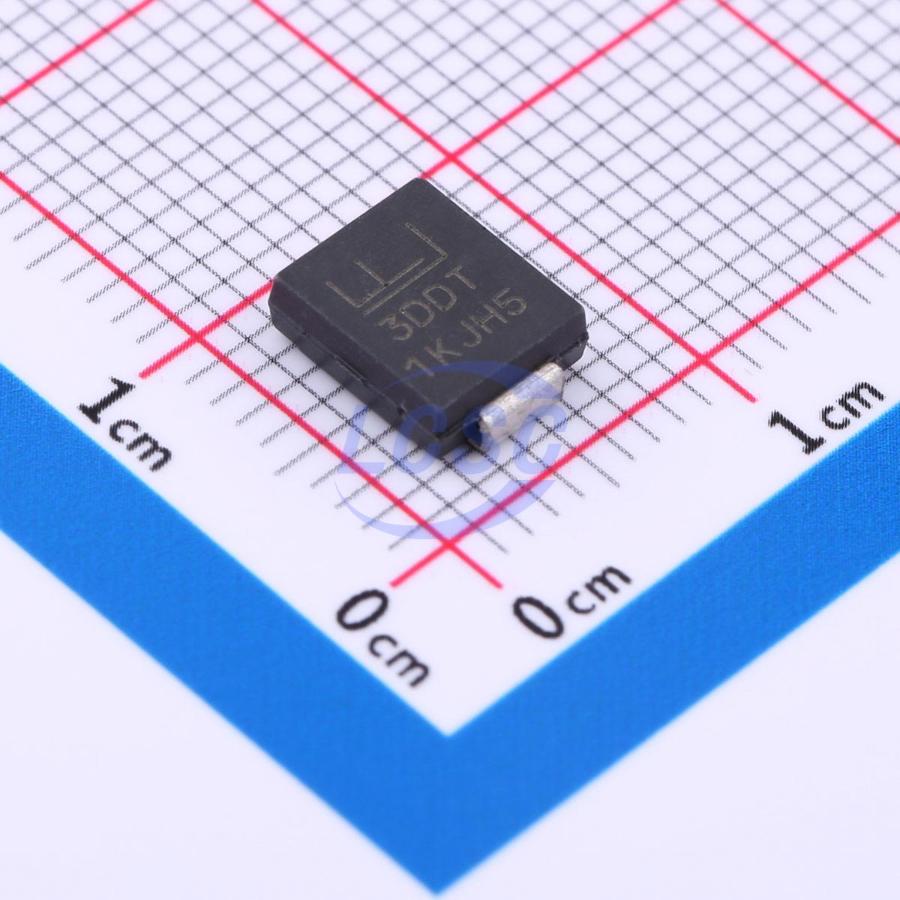

3.0SMCJ8.5CA
14.4VC Clamp 208.3A Ipp TVS DIODE DO-214AB
DO-214ABROHS CompliantActive
TVS DIODE 8.5VWM 14.4VC DO-214AB
- Manufacturer
- Littelfuse
- Manufacturer part #
- 3.0SMCJ8.5CA
- Store part #
- C3718157
- Package / case
- DO-214AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C3718157
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹164.95 | ₹164.95 |
| 10+ | ₹150.00 | ₹1,500.00 |
| 30+ | ₹141.80 | ₹4,254.00 |
| 100+ | ₹132.58 | ₹13,258.00 |
| 500+ | ₹128.48 | ₹64,240.00 |
| 1,000+ | ₹126.64 | ₹1,26,640.00 |
1 × ₹164.95
₹164.95
excl. GST
₹194.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
3.0SMCJ8.5CA
₹164.95 for 1 + GST
Specifications
- Clamping Voltage
- 14.4V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 208.3A
- Peak Pulse Power Dissipation (Ppp)
- 3kW
- Number of Channels
- 1
- Voltage - Breakdown
- 9.44V
- type
- TVS
- Reverse Leakage Current (Ir)
- 20uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 8.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.46 g
Overview
The 3.0SMCJ Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Key features
- Excellent clamping capability
- Low incremental surge resistance
- High temperature to reflow soldering guaranteed: 260°C/40sec
- VBR@TJ = VBR@≥25°C × (1 + aT × (TJ - 25)) (aT: Temperature Coefficient, typical value is 0.1%)
- UL Recognized compound meeting flammability rating V-0.
- Meet MSL level1, per J-STD-020, LF maximun peak of 260°C
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.01)
