VBsemi ElecDatasheet (PDF)

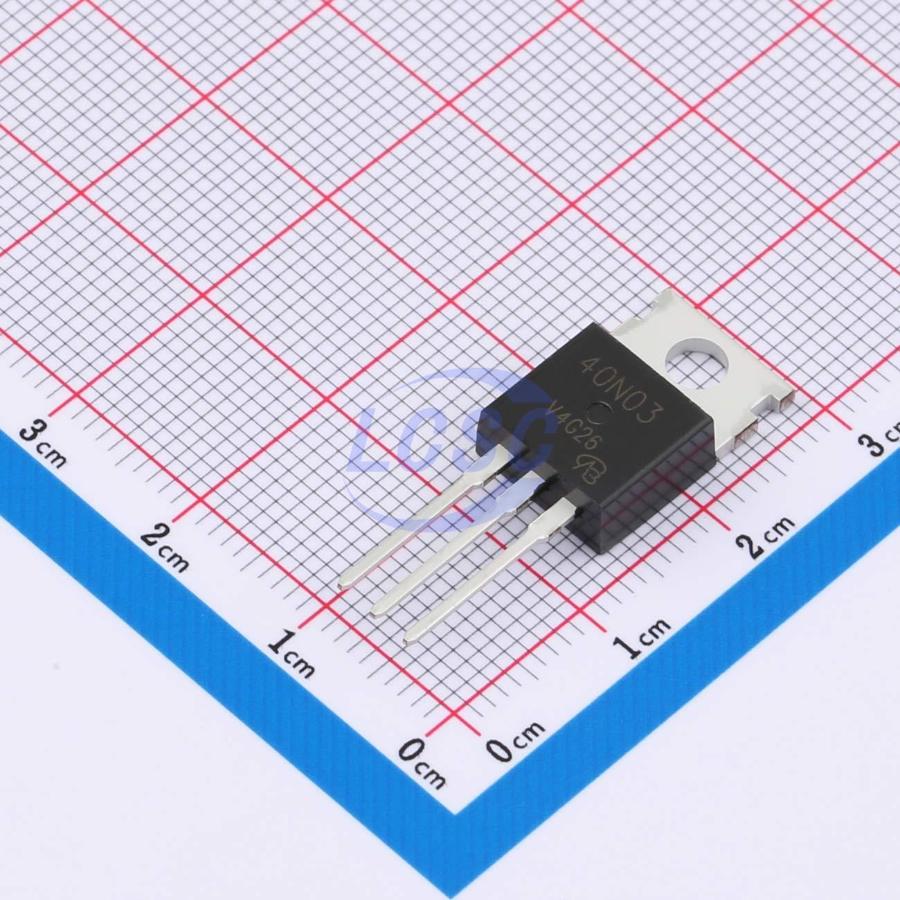

40N03-VB TO220
N-Channel 30V 80A 120W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 30V 80A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 40N03-VB TO220
- Store part #
- C29779530
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C29779530
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.47 | ₹72.47 |
| 10+ | ₹56.93 | ₹569.30 |
| 50+ | ₹50.42 | ₹2,521.00 |
| 100+ | ₹42.02 | ₹4,202.00 |
| 500+ | ₹38.23 | ₹19,115.00 |
| 1,000+ | ₹36.13 | ₹36,130.00 |
1 × ₹72.47
₹72.47
excl. GST
₹85.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
40N03-VB TO220
₹72.47 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 525pF
- Ciss-Input Capacitance
- 1.6nF
- Pd - Power Dissipation
- 120W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 80A
- Reverse Transfer Capacitance (Crss)
- 370pF
- RDS(on)
- 9mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 45nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.5 g
Overview
Applications
- OR gate
- Server
- DC-DC converter
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPP096N03LG-VB#C29778836VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 7 | ₹72.47 · 7 in stock | View |
 | IRL3714ZPBF-VB#C19188139VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹72.47 · 20 in stock | View |
 | PHP45N03T-VB#C20755108VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹75.62 · 20 in stock | View |
 | IPP147N03LG-VB#C20755361VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 16 | ₹75.62 · 16 in stock | View |
 | P40NF03L-VB#C20755138VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹75.62 · 20 in stock | View |
