VBsemi ElecDatasheet (PDF)

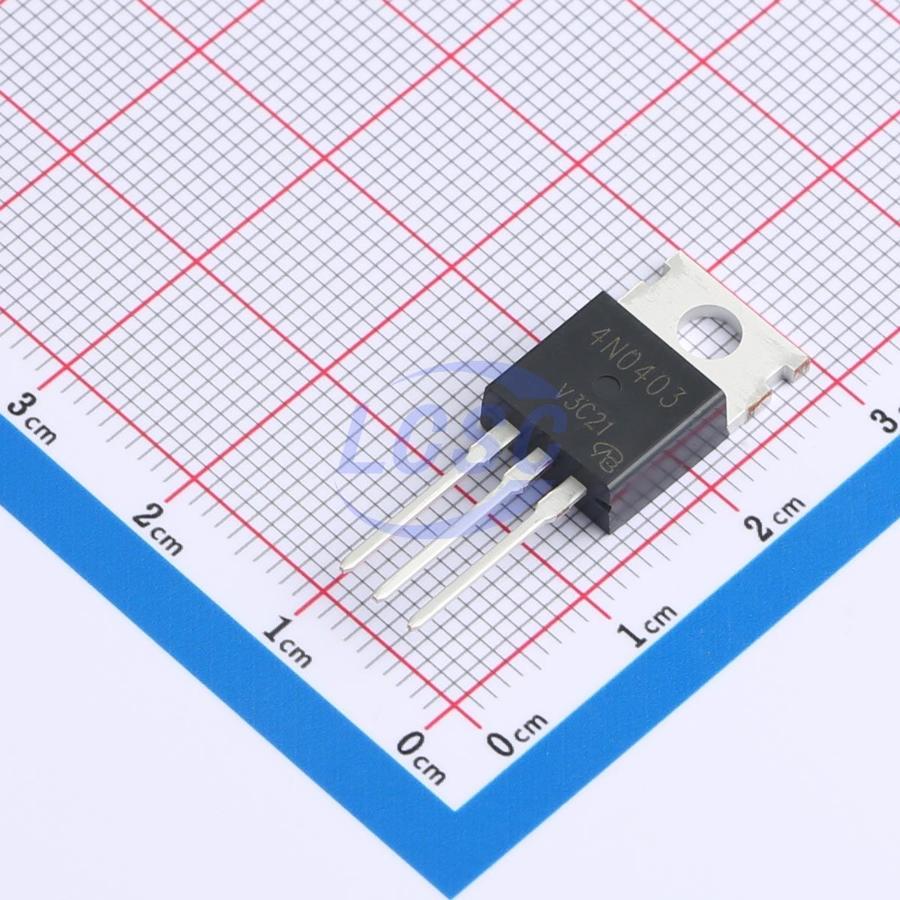

4N0403 TO220-VB
N-Channel 40V 110A 3.13W Through Hole TO-220AB
TO-220ABROHS CompliantActive
MOSFET N-CH 40V 110A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 4N0403 TO220-VB
- Store part #
- C7568972
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C7568972
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹114.48 | ₹114.48 |
| 10+ | ₹93.06 | ₹930.60 |
| 50+ | ₹82.34 | ₹4,117.00 |
| 100+ | ₹71.64 | ₹7,164.00 |
| 500+ | ₹65.33 | ₹32,665.00 |
| 1,000+ | ₹62.18 | ₹62,180.00 |
1 × ₹114.48
₹114.48
excl. GST
₹135.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
4N0403 TO220-VB
₹114.48 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 750pF
- Current - Continuous Drain(Id)
- 110A
- Ciss-Input Capacitance
- 2.9nF
- Pd - Power Dissipation
- 3.13W
- Reverse Transfer Capacitance (Crss)
- 310pF
- RDS(on)
- 6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 130nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
Applications
- Synchronous rectification
- Power supply
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMP60N04-VB#C22389775VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹110.07 · 10 in stock | View |
 | HM80N04-VB#C29778730VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹110.07 · 10 in stock | View |
 | FDP8441-VB#C29778969VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹110.07 · 10 in stock | View |
 | BUK9504-40A-VB#C29779273VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹110.07 · 10 in stock | View |
 | NP80N04MHE-S18-AY-VB#C29779473VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹110.07 · 10 in stock | View |
