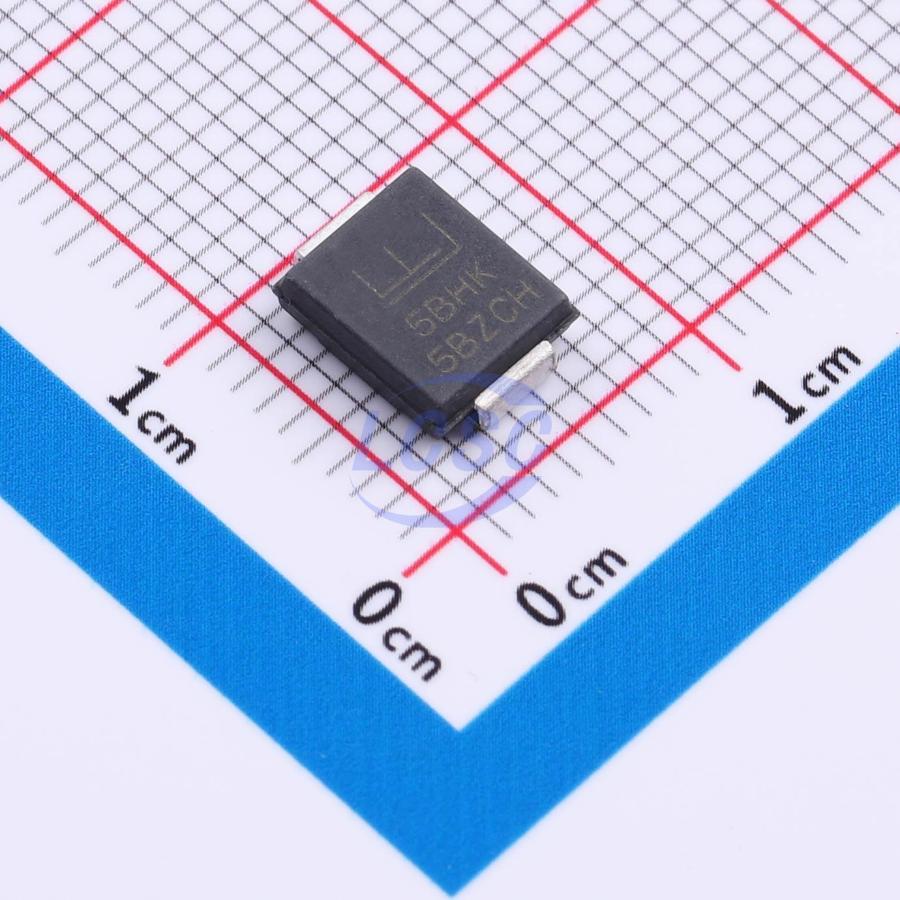

5.0SMDJ130CA

The 5.0SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Applications

• TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

Key features

• 5000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
• SMD low profile surface mount package minimizing PCB footprint
• Typical failure mode is short from over-specified voltage or current
• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
• IEC 61000-4-2 ESD 30kV(Air), 30kV (Contact)
• ESD protection of data lines in accordance with IEC 61000 - 4-2
• EFT protection of data lines in accordance with IEC 61000 - 4-4
• Built-in strain relief
• Glass passivated chip junction
• Fast response time: typically less than 1.0ps from 0V to BV min
• Excellent clamping capability
• Low incremental surge resistance
• Typical IR less than 5μA when VBR min > 22V
• High temperature to reflow soldering guaranteed: 260°C/40sec
• VBR @ T J = VBR@25°C × (1 + αT x (TJ - 25))(αT:Temperature Coefficient)
• UL Recognized compound meeting flammability rating V-0
• Meet MSL level1, per J-STD-020, LF maximum peak of 260°C
• Matte tin lead–free plated
• Halogen free and RoHS compliant
• Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.01)
• Recognized to UL 497B as an Isolated Loop Circuit Protector
