TECH PUBLICDatasheet (PDF)

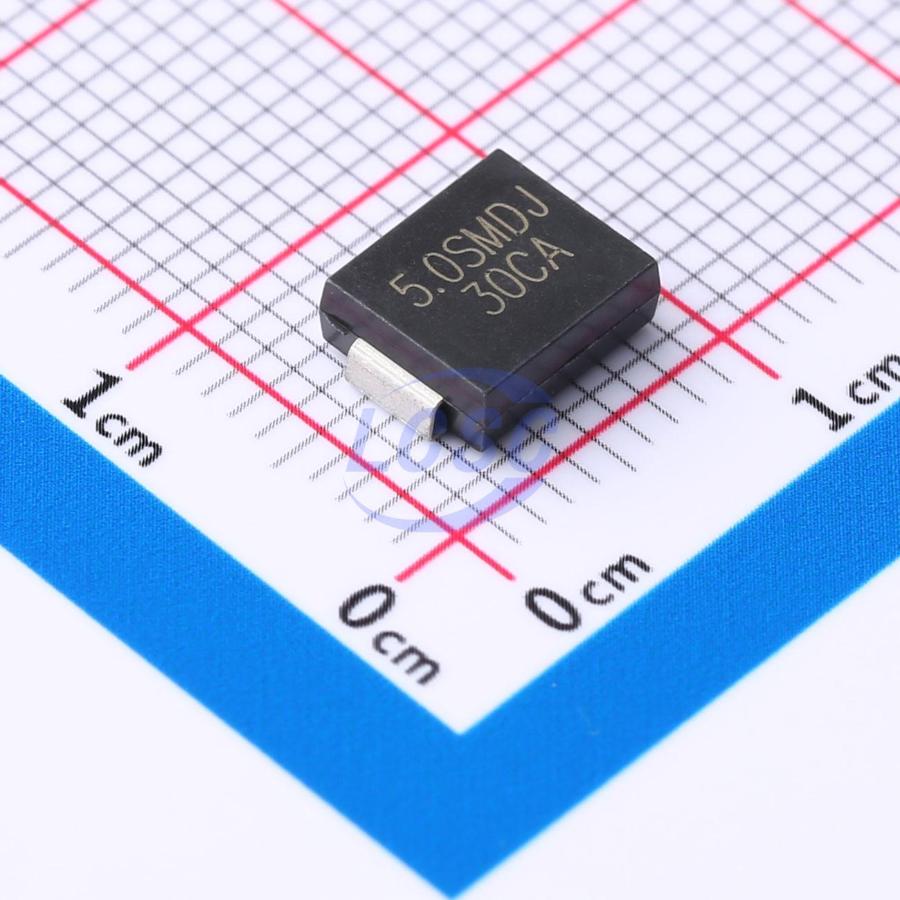

5.0SMDJ30CA
48.4VC Clamp 103.3A@10/1000us Ipp DO-214AB(SMC)
DO-214AB(SMC)RoHSActive
30VWM 48.4VC DO-214AB(SMC)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 5.0SMDJ30CA
- Store part #
- C5310979
- Package / case
- DO-214AB(SMC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,613 in stock
#C5310979
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.96 | ₹74.96 |
| 10+ | ₹60.84 | ₹608.40 |
| 30+ | ₹53.89 | ₹1,616.70 |
| 100+ | ₹46.94 | ₹4,694.00 |
| 500+ | ₹39.98 | ₹19,990.00 |
| 1,000+ | ₹37.81 | ₹37,810.00 |
1 × ₹74.96
₹74.96
excl. GST
₹88.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
5.0SMDJ30CA
₹74.96 for 1 + GST
Specifications
- Clamping Voltage
- 48.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 103.3A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 36.8V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 30V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, telecommunication.
Key features
- UL recognition, file #E517074
- 500oW peak pulse power capability with a 10/1000μs waveform
- Low leakage
- Uni and Bidirectional unit
- Excellent clamping capability
- Very fast response time
- Meets MSL level 1
