JSCJDatasheet (PDF)

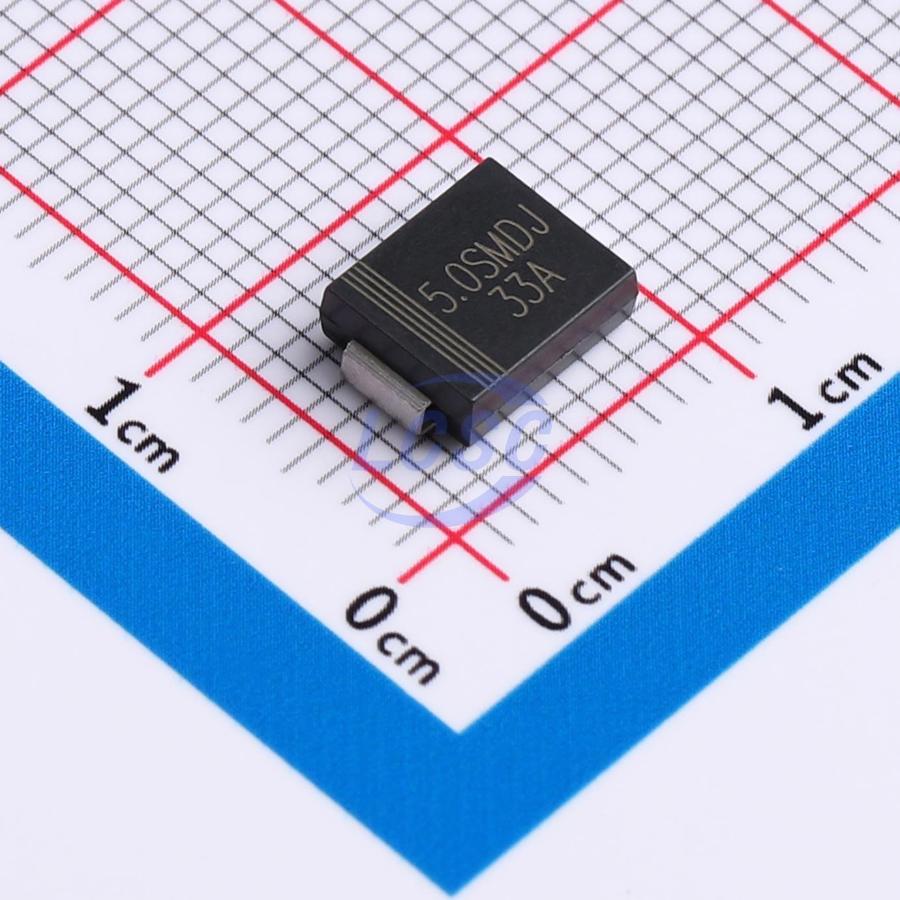

5.0SMDJ33A
53.3V 93.8A@10/1000us 5kW@10/1000us 40.6V Unidirectional 33V DO-214AB TVS Diodes RoHS
DO-214ABROHS CompliantActive
- Manufacturer
- JSCJ
- Manufacturer part #
- 5.0SMDJ33A
- Store part #
- C3036234
- Package / case
- DO-214AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
693 in stock
#C3036234
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.39 | ₹54.39 |
| 10+ | ₹48.30 | ₹483.00 |
| 30+ | ₹45.47 | ₹1,364.10 |
| 100+ | ₹42.43 | ₹4,243.00 |
| 500+ | ₹40.68 | ₹20,340.00 |
| 1,000+ | ₹39.81 | ₹39,810.00 |
1 × ₹54.39
₹54.39
excl. GST
₹64.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
5.0SMDJ33A
₹54.39 for 1 + GST
Specifications
- Clamping Voltage
- 53.3V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 93.8A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 5kW@10/1000us
- Voltage - Breakdown
- 40.6V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 33V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.455 g
Overview
Applications
- Clamping Voltage
Key features
- Peak pulse power 5000W
- Reverse working voltage 11V~440V
- Glass passivated die
