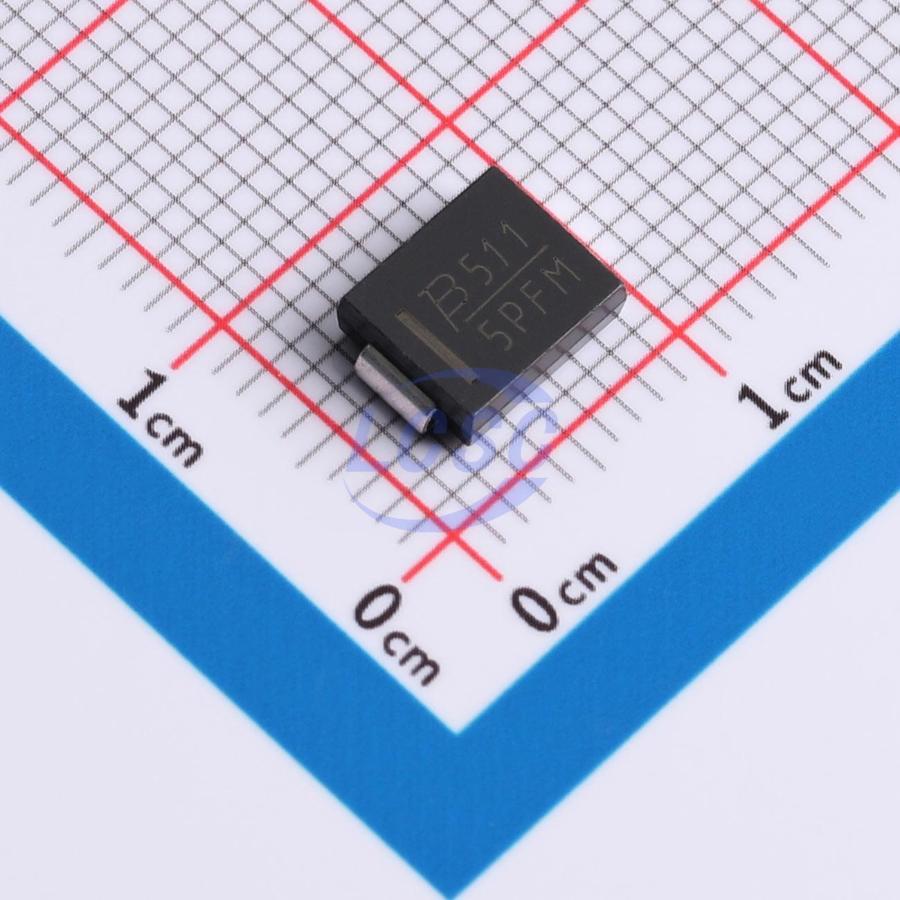

5.0SMDJ33A
53.3VC Clamp 93.9A Ipp TVS DIODE DO-214AB(SMC)
- Manufacturer
- BOURNS
- Manufacturer part #
- 5.0SMDJ33A
- Store part #
- C3718675
- Package / case
- DO-214AB(SMC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C3718675
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹470.51 | ₹470.51 |
| 10+ | ₹463.84 | ₹4,638.40 |
| 30+ | ₹459.33 | ₹13,779.90 |
| 100+ | ₹454.82 | ₹45,482.00 |
1 × ₹470.51
₹470.51
excl. GST
₹555.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
5.0SMDJ33A
₹470.51 for 1 + GST
Specifications
- Clamping Voltage
- 53.3V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 93.9A
- Peak Pulse Power Dissipation (Ppp)
- 5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 36.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 33V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.548 g
Overview
Portable communications, computing and video equipment manufacturers are challenging the semiconductor industry to develop increasingly higher power density circuit protection components. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 170 V and Breakdown Voltage up to 209 V. Typical fast response times are less than 1.0 ps from 0 V to Breakdown Voltage. Chip Diodes conform to JEDEC standards, are easy to handle with standard pick and place equipment and the flat configuration minimizes roll away.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 5.0SMDJ33A#C2990367Liown · SMC(DO-214AB) | Liown | SMC(DO-214AB) | 3,095 | ₹52.31 · 3,095 in stock | View |
 | 5.0SMDJ33A/TR13#C522689Brightking · SMC(DO-214AB) | Brightking | SMC(DO-214AB) | 5,132 | ₹63.86 · 5,132 in stock | View |
 | 5.0SMDJ33A#C2688201WPMtek · SMC(DO-214AB) | WPMtek | SMC(DO-214AB) | 15 | ₹47.51 · 15 in stock | View |
 | 5.0SMDJ33A#C3012616PAKER · SMC(DO-214AB) | PAKER | SMC(DO-214AB) | 5 | ₹43.63 · 5 in stock | View |
 | 5.0SMDJ33A#C5125699BORN · SMC(DO-214AB) | BORN | SMC(DO-214AB) | 5,798 | ₹59.55 · 5,798 in stock | View |
