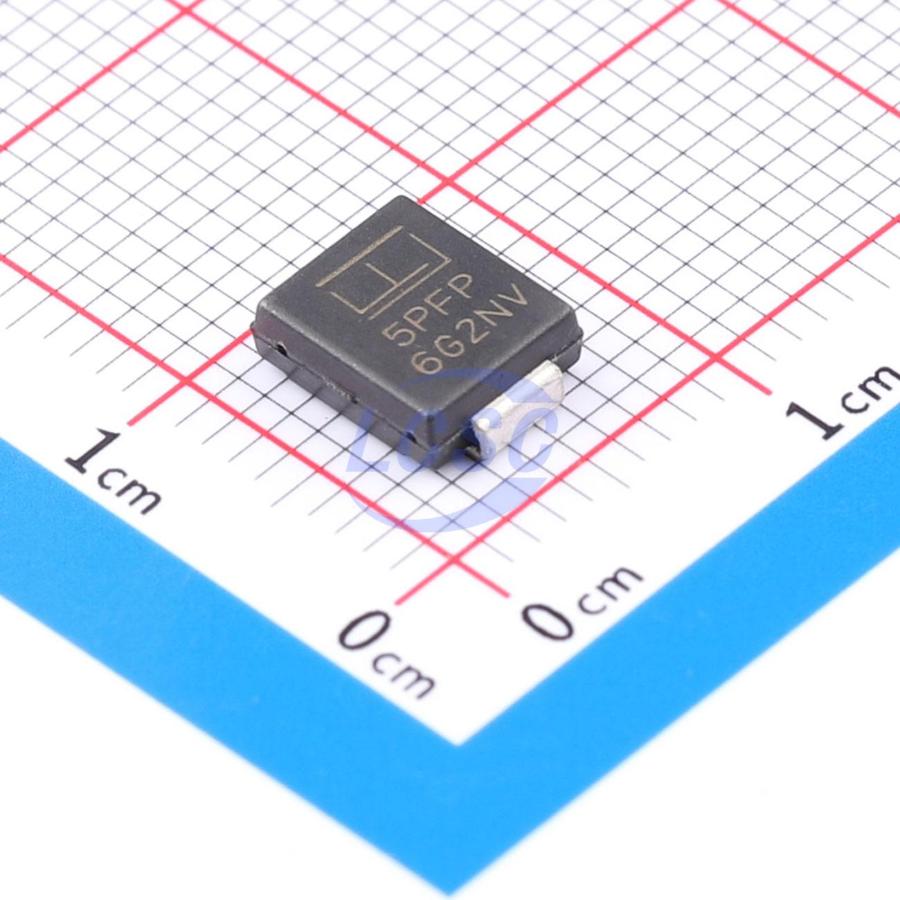

5.0SMDJ36A
58.1VC Clamp 86.1A Ipp TVS DIODE DO-214AB(SMC)
- Manufacturer
- BOURNS
- Manufacturer part #
- 5.0SMDJ36A
- Store part #
- C3719872
- Package / case
- DO-214AB(SMC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C3719872
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹379.48 | ₹379.48 |
| 10+ | ₹335.41 | ₹3,354.10 |
| 30+ | ₹307.84 | ₹9,235.20 |
| 100+ | ₹279.40 | ₹27,940.00 |
| 500+ | ₹266.81 | ₹1,33,405.00 |
| 1,000+ | ₹261.16 | ₹2,61,160.00 |
1 × ₹379.48
₹379.48
excl. GST
₹447.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
5.0SMDJ36A
₹379.48 for 1 + GST
Specifications
- Clamping Voltage
- 58.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 86.1A
- Peak Pulse Power Dissipation (Ppp)
- 5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 40V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.821 g
Overview
Portable communications, computing and video equipment manufacturers are challenging the semiconductor industry to develop increasingly higher power density circuit protection components. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 170 V and Breakdown Voltage up to 209 V. Typical fast response times are less than 1.0 ps from 0 V to Breakdown Voltage. Chip Diodes conform to JEDEC standards, are easy to handle with standard pick and place equipment and the flat configuration minimizes roll away.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 5.0SMDJ36A#C2990368Liown · SMC(DO-214AB) | Liown | SMC(DO-214AB) | 815 | ₹50.14 · 815 in stock | View |
 | 5.0SMDJ36A/TR13#C522690Brightking · SMC(DO-214AB) | Brightking | SMC(DO-214AB) | 1,225 | ₹56.99 · 1,225 in stock | View |
 | 5.0SMDJ36A#C2836932Leiditech · SMC(DO-214AB) | Leiditech | SMC(DO-214AB) | 231 | ₹124.68 · 231 in stock | View |
 | 5.0SMDJ36A#C5270684YFW · DO-214AB(SMC) | YFW | DO-214AB(SMC) | 200 | ₹75.03 · 200 in stock | View |
 | 5.0SMDJ36A#C284074DOWO · SMC(DO-214AB) | DOWO | SMC(DO-214AB) | 12,910 | ₹44.69 · 12,910 in stock | View |
