JSCJDatasheet (PDF)

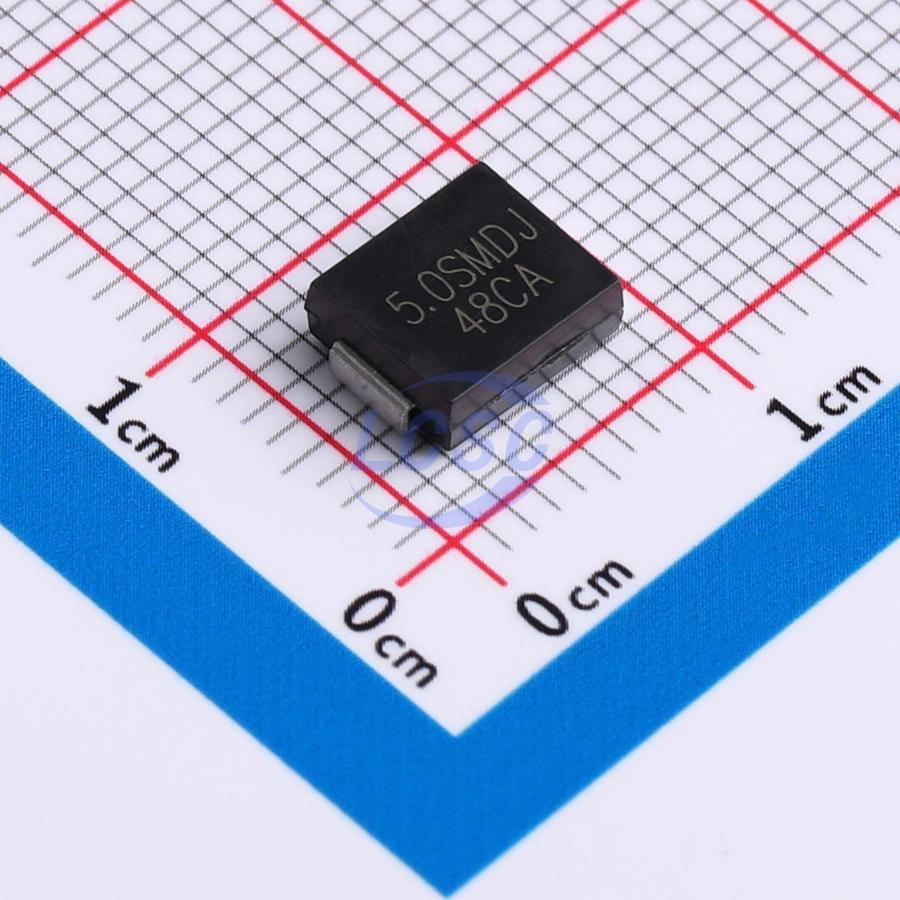

5.0SMDJ48CA
77.4VC Clamp 64.6A Ipp TVS DIODE SMCG
SMCGROHS CompliantSold out at source
- Manufacturer
- JSCJ
- Manufacturer part #
- 5.0SMDJ48CA
- Store part #
- C5295065
- Package / case
- SMCG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,927 in stock
#C5295065
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹49.39 | ₹49.39 |
| 10+ | ₹43.51 | ₹435.10 |
| 30+ | ₹40.68 | ₹1,220.40 |
| 100+ | ₹37.64 | ₹3,764.00 |
| 500+ | ₹35.89 | ₹17,945.00 |
| 1,000+ | ₹35.03 | ₹35,030.00 |
1 × ₹49.39
₹49.39
excl. GST
₹58.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
5.0SMDJ48CA
₹49.39 for 1 + GST
Specifications
- Clamping Voltage
- 77.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 64.6A
- Peak Pulse Power Dissipation (Ppp)
- 5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 53.3V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 48V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.451 g
Overview
Applications
- Clamping Voltage
Key features
- 5000W
- VRWM 11V - 440V
- Glass passivated chip
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 5.0SMDJ51CA#C3036309JSCJ · SMCG | JSCJ | SMCG | 1,181 | ₹82.83 · 1,181 in stock | View |
