LittelfuseDatasheet (PDF)

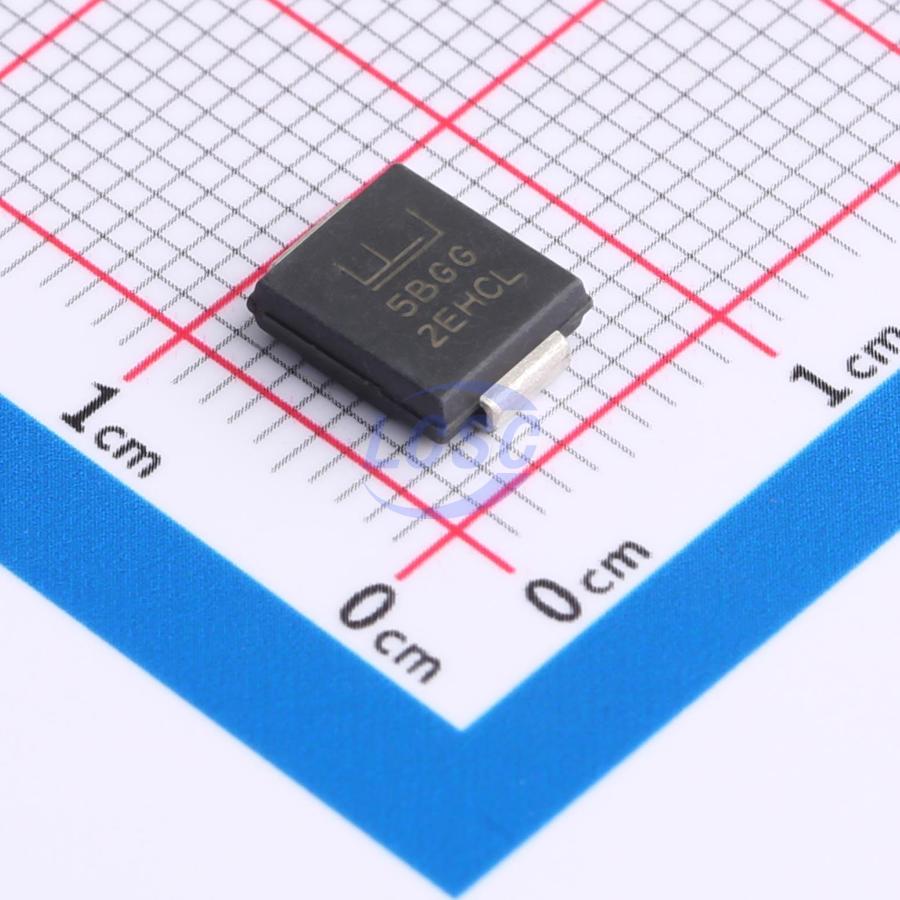

5.0SMDJ58CA
93.6VC Clamp 53.5A Ipp TVS DIODE DO-214AB
DO-214ABROHS3 CompliantActive
TVS DIODE 58VWM 93.6VC DO-214AB
- Manufacturer
- Littelfuse
- Manufacturer part #
- 5.0SMDJ58CA
- Store part #
- C3720029
- Package / case
- DO-214AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
82 in stock
#C3720029
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹346.04 | ₹346.04 |
| 10+ | ₹292.48 | ₹2,924.80 |
| 30+ | ₹259.16 | ₹7,774.80 |
| 100+ | ₹224.75 | ₹22,475.00 |
| 500+ | ₹209.29 | ₹1,04,645.00 |
| 1,000+ | ₹202.54 | ₹2,02,540.00 |
1 × ₹346.04
₹346.04
excl. GST
₹408.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
5.0SMDJ58CA
₹346.04 for 1 + GST
Specifications
- Clamping Voltage
- 93.6V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 53.5A
- Peak Pulse Power Dissipation (Ppp)
- 5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 64.4V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 58V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
The 5.0SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Key features
- 5000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
- SMD low profile surface mount package minimizing PCB footprint
- Typical failure mode is short from over-specified voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- IEC 61000-4-2 ESD 30kV (Air), 30kV (Contact)
- ESD protection of data lines in accordance with IEC 61000 - 4-2
- Built-in strain relief
- Glass passivated chip junction
- Fast response time: typically less than 1.0ps from 0V to BV min
- Excellent clamping capability
- Low incremental surge resistance
- Typical IR less than 5μA when VBR min > 22V
- High temperature to reflow soldering guaranteed: 260°C/40sec
- UL Recognized compound meeting flammability rating V-0
- Meet MSL level1, per J-STD-020, LF maximum peak of 260°C
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.01)
- Recognized to UL 497B as an Isolated Loop Circuit Protector
