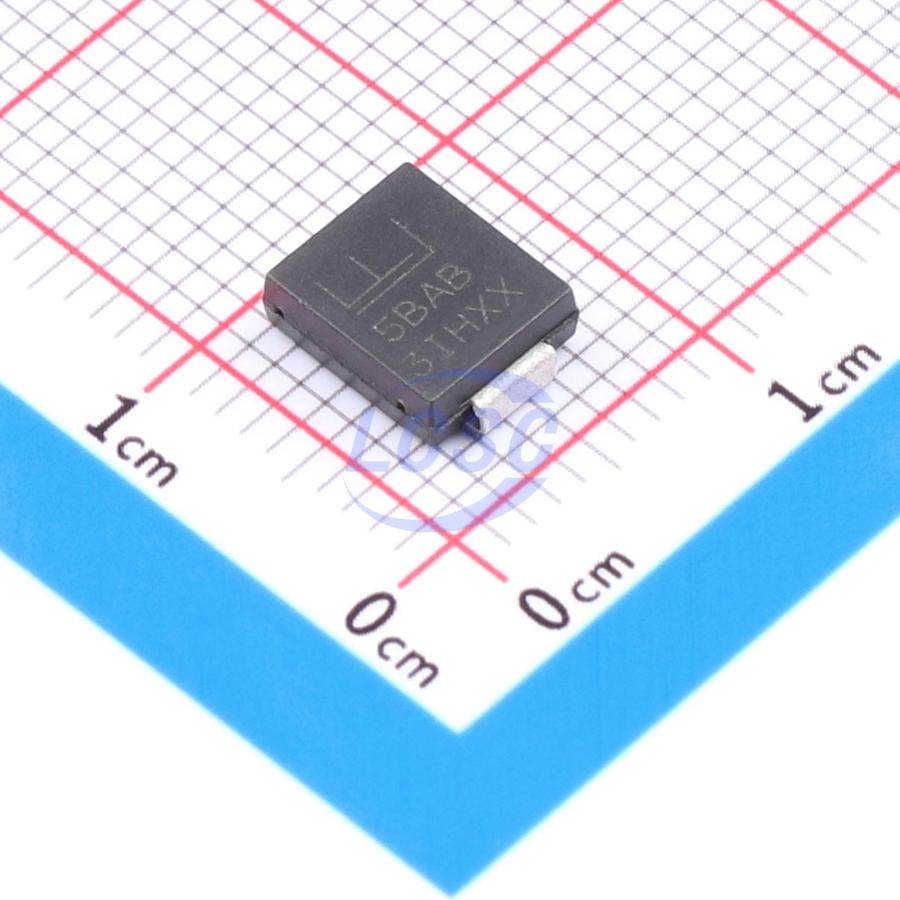

5.0SMDJ6.0CAS

The 5.0SMDJxxS series, single chip design is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Applications

• TVS components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

Key features

• 5000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
• Recognized to UL 497B as an Isolated Loop Circuit Protector
• DO214AB SMT package for minimized board space
• Low profile package Typical failure mode is short from over-specified voltage or current
• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
• ESD protection of data lines in accordance with IEC 61000 - 4 - 2, ESD 30kV (Air), 30kV (Contact)
• EFT protection of data lines in accordance with IEC 61000 - 4 - 4
• Built-in strain relief
• Glass passivated chip junction
• Very fast response time
• Excellent clamping capability
• Low incremental surge resistance
• Typical IR less than 2μA when VBR min>12V
• High temperature to reflow soldering guaranteed: 260°C/10sec
• VBR @ T = VBR@25°C×(1 + α)×(TJ - 25) (αT:Temperature Coefficient)
• UL Recognized compound meeting flammability rating V - 0
• Meet MSL level1, per J - STD - 020, LF maximum peak of 260°C
• Matte tin lead–free plated
• Halogen free and RoHS compliant
• Pb - free E3 means 2nd level interconnect is Pb - free and the terminal finish material is tin(Sn) (IPC/JEDEC J - STD609A.01)
