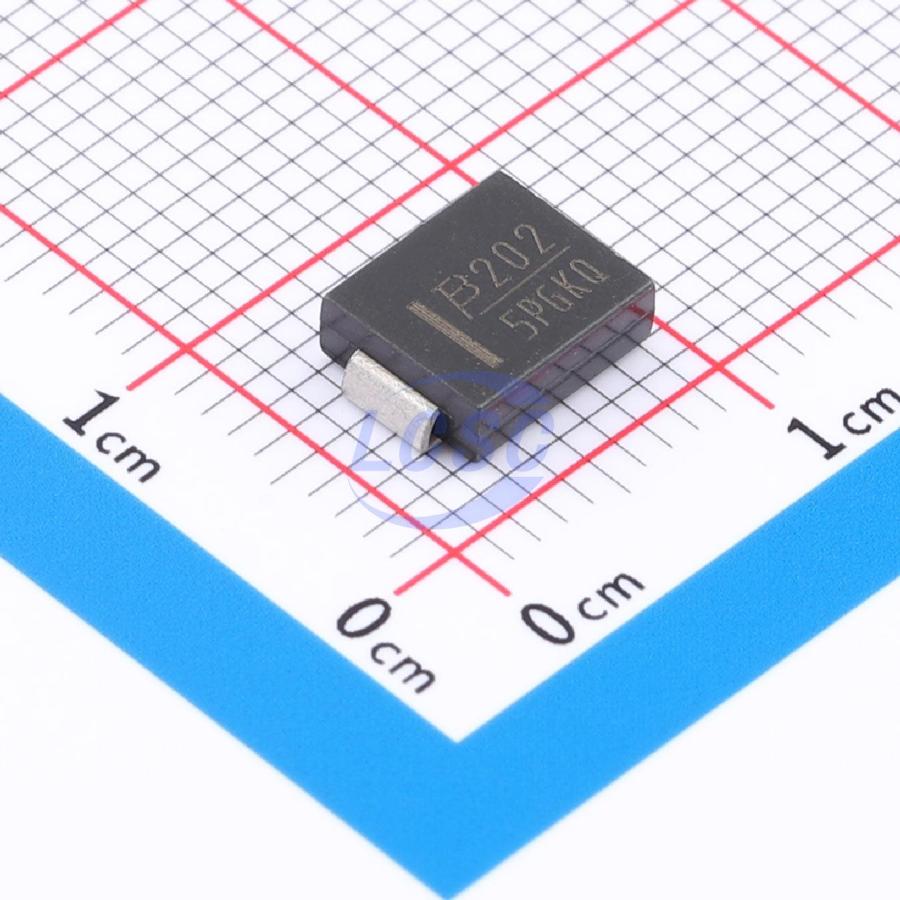

5.0SMDJ60A-Q
96.8VC Clamp 51.7A Ipp TVS DIODE DO-214AB(SMC)
- Manufacturer
- BOURNS
- Manufacturer part #
- 5.0SMDJ60A-Q
- Store part #
- C3715185
- Package / case
- DO-214AB(SMC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39 in stock
#C3715185
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹314.25 | ₹314.25 |
| 10+ | ₹309.73 | ₹3,097.30 |
| 30+ | ₹306.72 | ₹9,201.60 |
| 100+ | ₹303.71 | ₹30,371.00 |
1 × ₹314.25
₹314.25
excl. GST
₹370.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
5.0SMDJ60A-Q
₹314.25 for 1 + GST
Specifications
- Clamping Voltage
- 96.8V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 51.7A
- Peak Pulse Power Dissipation (Ppp)
- 5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 66.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 60V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.364 g
Overview
Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO - 214AB (SMC) size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 170 V and Breakdown Voltage up to 189 V. Typical fast response times are less than 1.0 ps from 0 to Breakdown Voltage. Chip Diodes conform to JEDEC standards, are easy to handle with standard pick and place equipment and the flat configuration minimizes roll away.
Applications
- Protection of power buses
- Protection of I/O interfaces
- Overvoltage transient protection
- Telecom, computer, industrial and consumer electronics applications
Key features
- RoHS compliant and halogen free
- Surface mount SMC package
- Standoff voltage: 5 to 170 volts
- Peak Pulse Power: 5000 watts
- AEC - Q101 compliant
- UL Recognized
