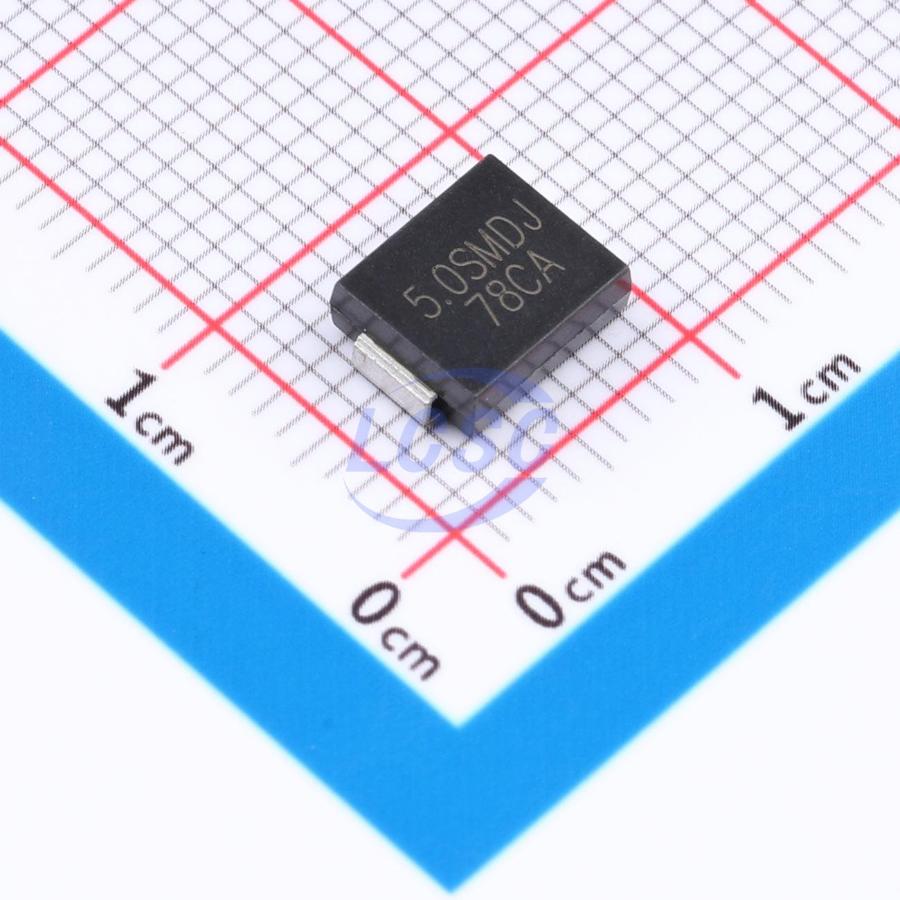

5.0SMDJ78CA TECH PUBLIC

5.0SMDJ78CA

126V 39.7A@10/1000us 5kW@10/1000us 95.8V Bidirectional 78V SMC TVS Diodes

SMCRoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: 5.0SMDJ78CA
Store part #: C54194928
Package / case: SMC
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C54194928

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
1+	₹78.04	₹78.04
10+	₹62.70	₹627.00
30+	₹54.92	₹1,647.60
100+	₹47.35	₹4,735.00
500+	₹42.81	₹21,405.00
1,000+	₹40.43	₹40,430.00

Quantity (min 1)

1 × ₹78.04

₹78.04

excl. GST

₹92.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

5.0SMDJ78CA

₹78.04 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 126V
Operating Temperature: -55℃~+150℃
Peak Pulse Current (Ipp): 39.7A@10/1000us
Peak Pulse Power Dissipation (Ppp): 5kW@10/1000us
Voltage - Breakdown: 95.8V
Number of Channels: 1
type: TVS
Reverse Leakage Current (Ir): 5uA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 78V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.402 g

Overview

Applications

For protecting sensitive electronic devices against voltage transients on sensor unit signal lines caused by inductive load switching and lightning strikes in IC, MOSFET, consumer, computer, industrial, and telecom applications.

Key features

UL certified, file number E517074
5000 W peak pulse power capability under 10/1000 μs waveform
Low leakage
Uni- and bidirectional versions
Excellent clamping capability
Extremely fast response time
MSL Level 1 compliant
Package: DO-214AB (SMC)
Molding compound meets UL 94 V-0 flammability rating, RoHS compliant
Terminals: tin-plated leads, solderable per J-STD-002 and JESD22-B102
Polarity: color band indicates cathode terminal in unidirectional types; no marking on bidirectional types
