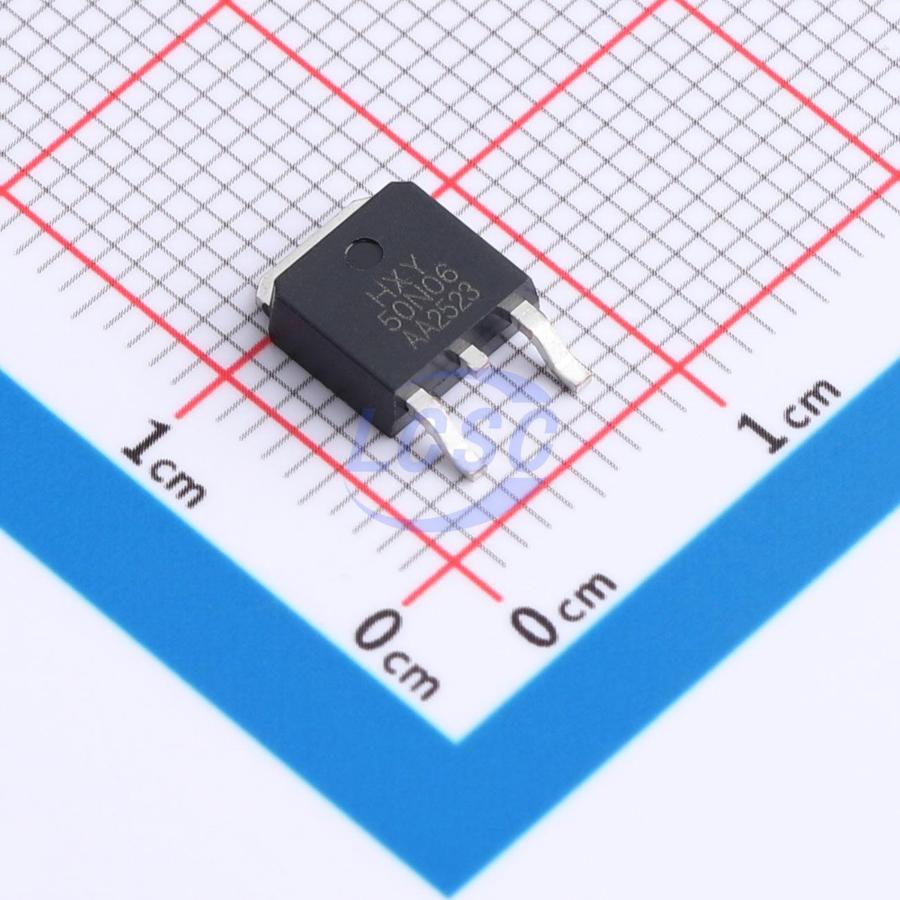

HXY MOSFETDatasheet (PDF)
50N06
N-Channel 60V 50A 45W Surface Mount TO-252-2L
TO-252-2LROHS CompliantActive
MOSFET N-CH 60V 50A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- 50N06
- Store part #
- C7495278
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
305 in stock
#C7495278
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.96 | ₹104.80 |
| 50+ | ₹17.07 | ₹853.50 |
| 150+ | ₹15.12 | ₹2,268.00 |
| 500+ | ₹13.67 | ₹6,835.00 |
| 2,500+ | ₹10.72 | ₹26,800.00 |
| 5,000+ | ₹10.13 | ₹50,650.00 |
5 × ₹20.96
₹104.80
excl. GST
₹123.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
50N06
₹104.80 for 5 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 145pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 2.423nF
- Pd - Power Dissipation
- 45W
- Reverse Transfer Capacitance (Crss)
- 97pF
- RDS(on)
- 11mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19.3nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.468 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLR2905ZPBF-HXY#C20606222HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 160 | ₹49.53 · 160 in stock | View |
 | IRFR3806TRPBF-HXY#C20606223HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 5 | ₹48.87 · 5 in stock | View |
 | FDD5353-HXY#C22366410HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 15 | ₹30.19 · 15 in stock | View |
 | STN2610D-HXY#C22366411HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 20 | ₹25.08 · 20 in stock | View |
 | IPD30N06S2-15-HXY#C22366412HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 10 | ₹36.28 · 10 in stock | View |
