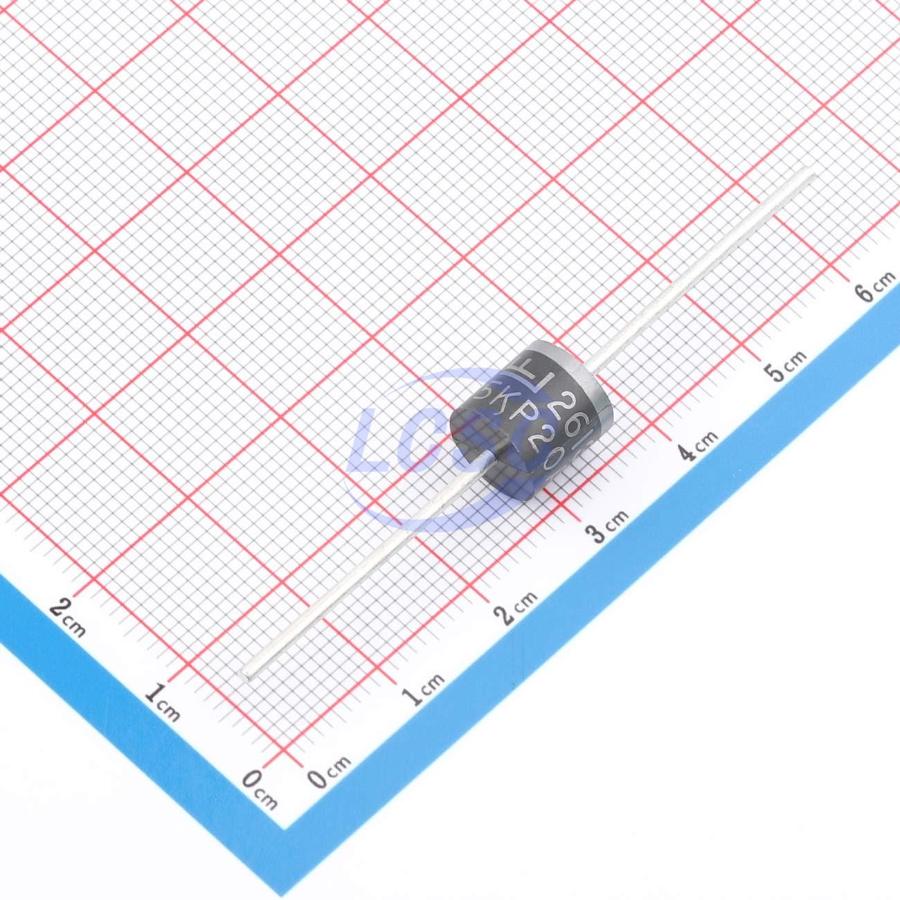

5KP20A-B
32.4V 157.4A 5kW@10/1000us 24.5V Unidirectional 20V P600 TVS Diodes RoHS
P600ROHS CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- 5KP20A-B
- Store part #
- C25269394
- Package / case
- P600
- Category
- TVS Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C25269394
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹413.54 | ₹413.54 |
| 10+ | ₹363.89 | ₹3,638.90 |
| 30+ | ₹332.95 | ₹9,988.50 |
| 100+ | ₹301.35 | ₹30,135.00 |
| 500+ | ₹286.95 | ₹1,43,475.00 |
| 1,000+ | ₹280.71 | ₹2,80,710.00 |
1 × ₹413.54
₹413.54
excl. GST
₹487.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per bag
5KP20A-B
₹413.54 for 1 + GST
Specifications
- Clamping Voltage
- 32.4V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 157.4A
- Peak Pulse Power Dissipation (Ppp)
- 5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 24.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 20V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 100 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.432 g
Overview
The 5KP series is designed to protect sensitive electronic equipment from voltage transients caused by lightning strikes and other transient voltage events.
Applications
- Telecommunications applications
- Computer applications
- Industrial electronics applications
- Consumer electronics applications
Key features
- 5kW peak pulse capability at 10/1000μs waveform, repetition rate (duty cycle) 0.01%
- Glass passivated chip junction in P600 package
- Fast response time: typically less than 1.0ps from 0V to minimum breakdown voltage
- Typical failure mode is short circuit under overvoltage or overcurrent conditions
- Whisker test per Table 4a and 4c of JEDEC JESD201A, passing Level 1 and Level 2
- IEC 61000-4-2 ESD 30kV (air), 30kV (contact)
- Low dynamic resistance
- Typical reverse leakage current less than 2μA when minimum breakdown voltage exceeds 12V
- Breakdown voltage at junction temperature = Breakdown voltage at 25°C x (1 + temperature coefficient x (junction temperature - 25)) (typical temperature coefficient 0.1%)
- UL recognized compound, compliant with V-0 flammability rating
- Halogen-free and RoHS compliant
- Lead-free E3 denotes second level interconnect lead-free, terminal finish material Tin (Sn) (IPC/JEDEC J-STD-609A.01)
- Recognized by UL 497B as isolated loop circuit protector
