LittelfuseDatasheet (PDF)

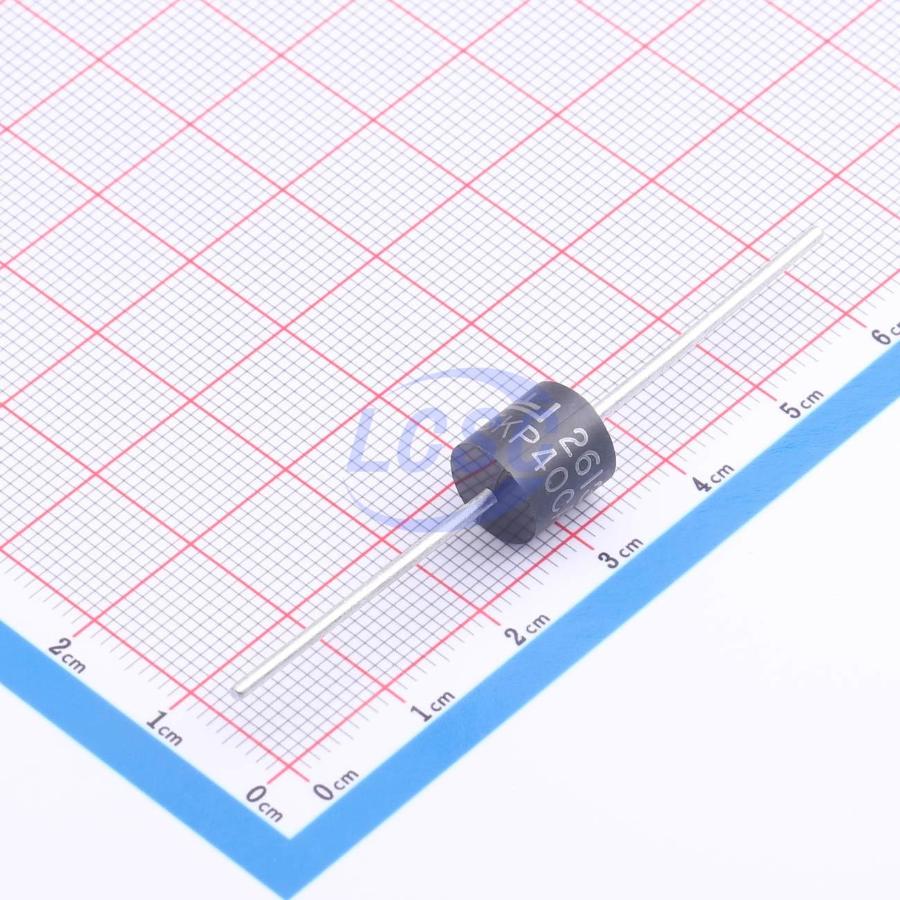

5KP40CA-B
64.5VC Clamp 79.1A Ipp TVS DIODE P600
P600ROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- 5KP40CA-B
- Store part #
- C3713982
- Package / case
- P600
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C3713982
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹539.93 | ₹539.93 |
| 10+ | ₹477.38 | ₹4,773.80 |
| 30+ | ₹438.27 | ₹13,148.10 |
| 100+ | ₹398.29 | ₹39,829.00 |
| 500+ | ₹380.23 | ₹1,90,115.00 |
| 1,000+ | ₹372.49 | ₹3,72,490.00 |
1 × ₹539.93
₹539.93
excl. GST
₹637.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per box
5KP40CA-B
₹539.93 for 1 + GST
Specifications
- Clamping Voltage
- 64.5V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 79.1A
- Peak Pulse Power Dissipation (Ppp)
- 5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 44.4V
- type
- TVS
- Reverse Leakage Current (Ir)
- 2uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 40V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 100 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.388 g
Overview
The 5KP series is designed to protect sensitive electronic equipment against voltage transients caused by lightning strikes and other transient voltage events.
Applications
- Telecom applications
- Computer applications
- Industrial applications
- Consumer electronics applications
Key features
- 5kW peak pulse capability at 10/1000μs waveform, repetition rate (duty cycle) 0.01%
- Glass passivated chip junction in P600 package
- Fast response time: typically less than 1.0ps from 0V to minimum breakdown voltage
- Typical failure mode is short circuit under overvoltage or overcurrent conditions
- Whisker testing per Table 4a and 4c of JEDEC JESD201A, passes Level 1 and Level 2
- IEC 61000-4-2 ESD 30kV (air), 30kV (contact)
- Low dynamic resistance
- Typical reverse leakage current less than 2μA when minimum breakdown voltage >12V
- Breakdown voltage at junction temperature = breakdown voltage at 25°C × (1 + temperature coefficient × (junction temperature − 25)) (typical temperature coefficient 0.1%)
- UL recognized compound, meets V-0 flammability rating
- Halogen-free and RoHS compliant
- Lead-free E3 indicates second-level interconnect lead-free, terminal finish material is tin (Sn) (IPC/JEDEC J-STD-609A.01)
- Recognized by UL 497B as isolating loop circuit protector
