LittelfuseDatasheet (PDF)

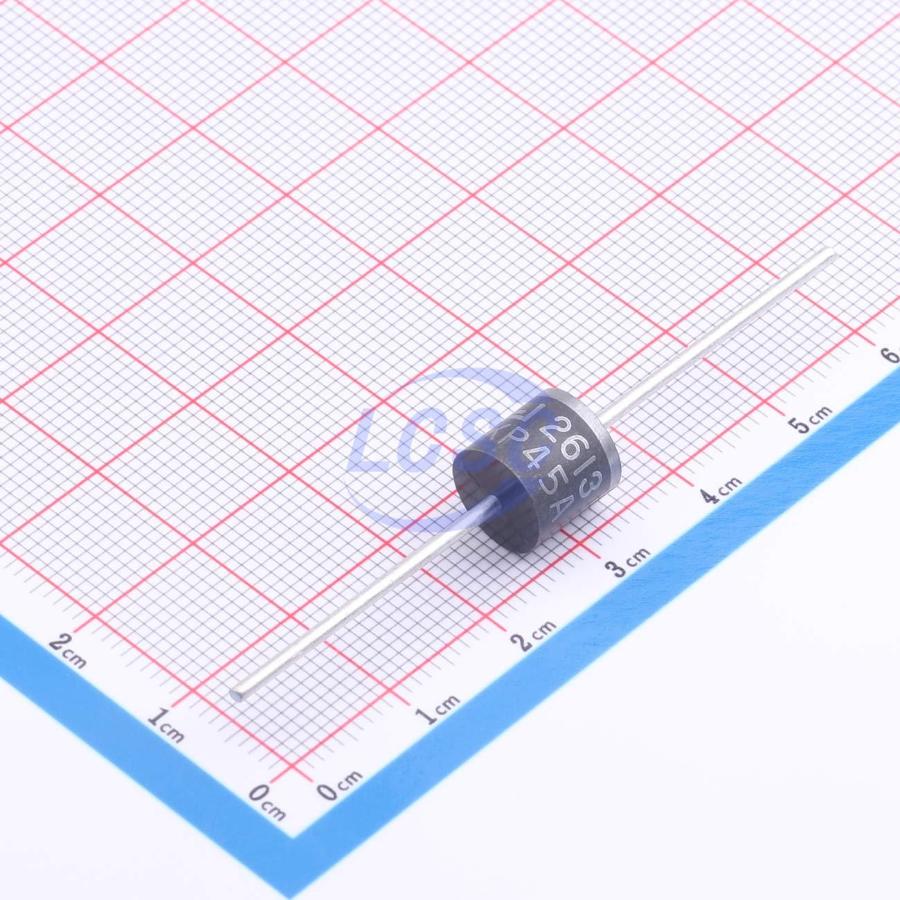

5KP45A-B
72.7VC Clamp 70.2A Ipp TVS DIODE P600
P600ROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- 5KP45A-B
- Store part #
- C3709499
- Package / case
- P600
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C3709499
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹427.95 | ₹427.95 |
| 10+ | ₹378.51 | ₹3,785.10 |
| 30+ | ₹347.57 | ₹10,427.10 |
| 100+ | ₹315.75 | ₹31,575.00 |
| 500+ | ₹301.35 | ₹1,50,675.00 |
| 1,000+ | ₹295.12 | ₹2,95,120.00 |
1 × ₹427.95
₹427.95
excl. GST
₹504.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per box
5KP45A-B
₹427.95 for 1 + GST
Specifications
- Clamping Voltage
- 72.7V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 70.2A
- Peak Pulse Power Dissipation (Ppp)
- 5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 50V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 45V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 100 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.374 g
Overview
The 5KP series is designed to protect sensitive electronic equipment from voltage transients caused by lightning strikes and other transient voltage events.
Applications
- Telecommunications applications
- Computer applications
- Industrial electronics applications
- Consumer electronics applications
Key features
- 5kW peak pulse capability at 10/1000μs waveform, repetition rate (duty cycle) 0.01%
- Glass passivated chip junction in P600 package
- Fast response time: typically less than 1.0ps from 0V to minimum breakdown voltage
- Typical failure mode is short circuit under overvoltage or overcurrent conditions
- Whisker test per Table 4a and 4c of JEDEC JESD201A, passing Level 1 and Level 2
- IEC 61000-4-2 ESD 30kV (air), 30kV (contact)
- Low dynamic resistance
- Typical reverse leakage current less than 2μA when minimum breakdown voltage exceeds 12V
- Breakdown voltage at junction temperature = Breakdown voltage at 25°C x (1 + temperature coefficient x (junction temperature - 25)) (typical temperature coefficient 0.1%)
- UL recognized compound, compliant with V-0 flammability rating
- Halogen-free and RoHS compliant
- Lead-free E3 denotes second level interconnect lead-free, terminal finish material Tin (Sn) (IPC/JEDEC J-STD-609A.01)
- Recognized by UL 497B as isolated loop circuit protector
