LittelfuseDatasheet (PDF)

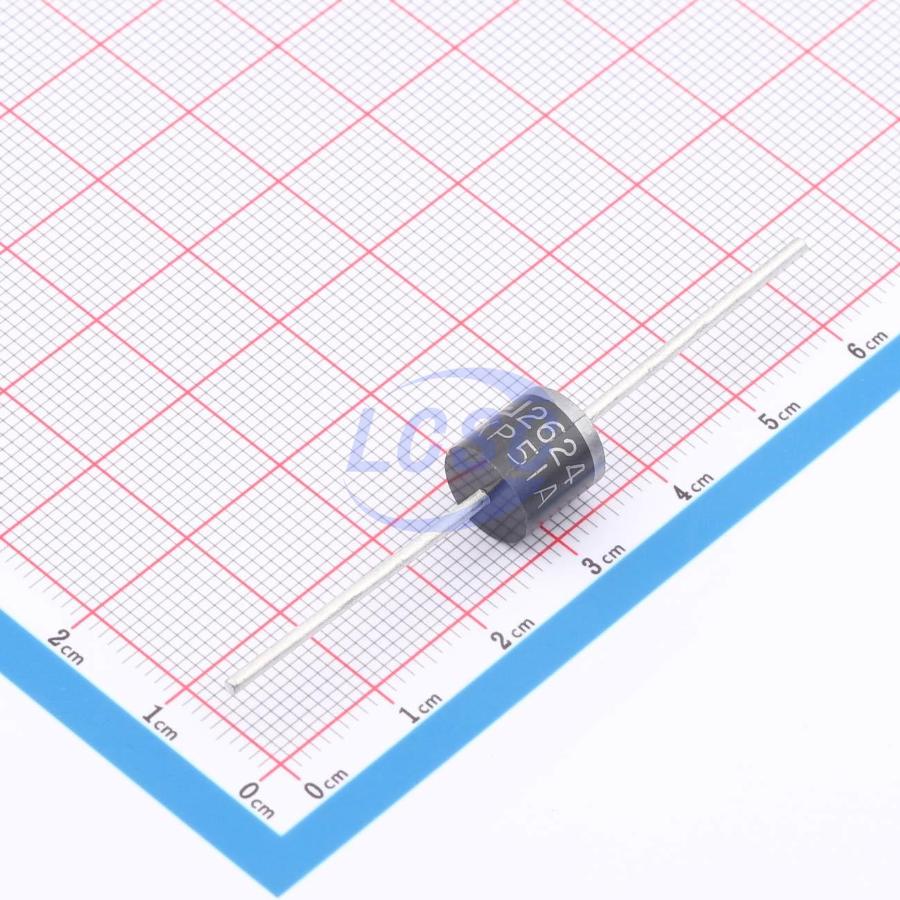

5KP51A-B
82.4VC Clamp 61.9A Ipp TVS DIODE P600
P600ROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- 5KP51A-B
- Store part #
- C3712506
- Package / case
- P600
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C3712506
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹327.18 | ₹327.18 |
| 10+ | ₹278.17 | ₹2,781.70 |
| 30+ | ₹247.61 | ₹7,428.30 |
| 100+ | ₹216.16 | ₹21,616.00 |
1 × ₹327.18
₹327.18
excl. GST
₹386.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per box
5KP51A-B
₹327.18 for 1 + GST
Specifications
- Clamping Voltage
- 82.4V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 61.9A
- Peak Pulse Power Dissipation (Ppp)
- 5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 56.7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 2uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 51V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 100 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.429 g
Overview
The 5KP series is designed to protect sensitive electronic equipment from voltage transients caused by lightning strikes and other transient voltage events.
Applications
- Telecommunications
- Computer
- Industrial
- Consumer Electronics
Key features
- 5kW peak pulse capability at 10/1000μs waveform, repetition rate (duty cycle) 0.01%
- P600 package with glass passivated chip junction
- Fast response time: typically less than 1.0ps from 0V to minimum breakdown voltage
- Excellent clamping capability
- Typical failure mode is short circuit due to overvoltage or overcurrent
- Whisker tested per Table 4a and 4c of JEDEC JESD201A
- IEC 61000-4-2 ESD 30kV (air), 30kV (contact)
- Data line EFT protection per IEC 61000-4-4
- Low incremental surge resistance
- Typical reverse current less than 2μA when minimum breakdown voltage exceeds 12V
- Guaranteed high-temperature reflow soldering: 260°C / 40 seconds / 0.375 inch (9.5mm) lead length, 5 lbs (2.3kg) pull force
- Breakdown voltage at junction temperature = breakdown voltage at 25°C × (1 + temperature coefficient × (junction temperature − 25)) (typical temperature coefficient 0.1%)
- UL recognized compound, rated V-0 flammability
- Matte tin lead-free plating
- Halogen-free and RoHS compliant
- Lead-free E3 denotes second level interconnect lead-free, terminal finish material is tin (Sn) (IPC/JEDEC J-STD-609A.01)
