LittelfuseDatasheet (PDF)

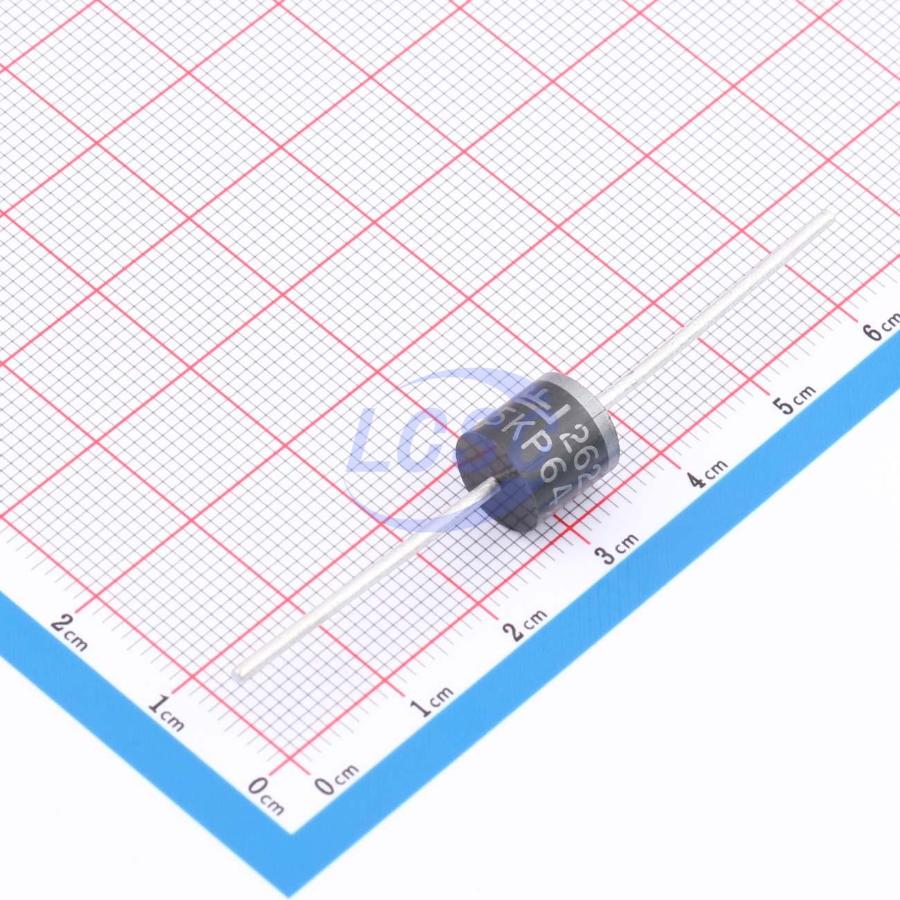

5KP64A-B
103VC Clamp 49.5A Ipp TVS DIODE P600
P600ROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- 5KP64A-B
- Store part #
- C3704223
- Package / case
- P600
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C3704223
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹418.40 | ₹418.40 |
| 10+ | ₹369.95 | ₹3,699.50 |
| 30+ | ₹339.73 | ₹10,191.90 |
| 100+ | ₹308.66 | ₹30,866.00 |
| 500+ | ₹294.72 | ₹1,47,360.00 |
| 1,000+ | ₹288.51 | ₹2,88,510.00 |
1 × ₹418.40
₹418.40
excl. GST
₹493.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per box
5KP64A-B
₹418.40 for 1 + GST
Specifications
- Clamping Voltage
- 103V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 49.5A
- Peak Pulse Power Dissipation (Ppp)
- 5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 71.1V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 64V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 100 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.377 g
Overview
The 5KP series is designed to protect sensitive electronic equipment from voltage transients caused by lightning strikes and other transient voltage events.
Applications
- Telecommunications
- Computer
- Industrial
- Consumer Electronics
Key features
- 5kW peak pulse capability at 10/1000μs waveform, repetition rate (duty cycle) 0.01%
- P600 package with glass passivated chip junction
- Fast response time: typically less than 1.0ps from 0V to minimum breakdown voltage
- Excellent clamping capability
- Typical failure mode is short circuit due to overvoltage or overcurrent
- Whisker tested per Table 4a and 4c of JEDEC JESD201A
- IEC 61000-4-2 ESD 30kV (air), 30kV (contact)
- Data line EFT protection per IEC 61000-4-4
- Low incremental surge resistance
- Typical reverse current less than 2μA when minimum breakdown voltage exceeds 12V
- Guaranteed high-temperature reflow soldering: 260°C / 40 seconds / 0.375 inch (9.5mm) lead length, 5 lbs (2.3kg) pull force
- Breakdown voltage at junction temperature = breakdown voltage at 25°C × (1 + temperature coefficient × (junction temperature − 25)) (typical temperature coefficient 0.1%)
- UL recognized compound, rated V-0 flammability
- Matte tin lead-free plating
- Halogen-free and RoHS compliant
- Lead-free E3 denotes second level interconnect lead-free, terminal finish material is tin (Sn) (IPC/JEDEC J-STD-609A.01)
