HXY MOSFETDatasheet (PDF)

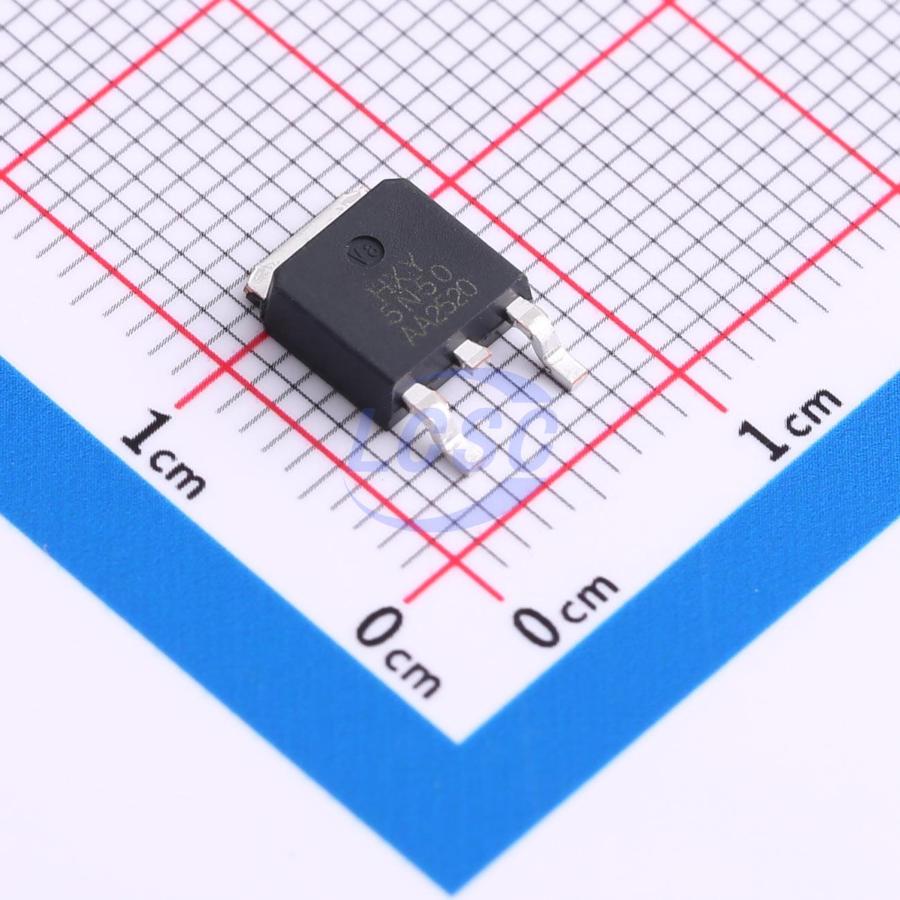

5N50
N-Channel 500V 5A 75W Surface Mount TO-252-2L
TO-252-2LROHS CompliantActive
MOSFET N-CH 500V 5A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- 5N50
- Store part #
- C7473289
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
180 in stock
#C7473289
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.44 | ₹152.20 |
| 50+ | ₹24.42 | ₹1,221.00 |
| 150+ | ₹21.84 | ₹3,276.00 |
| 500+ | ₹18.61 | ₹9,305.00 |
| 2,500+ | ₹14.79 | ₹36,975.00 |
| 5,000+ | ₹13.93 | ₹69,650.00 |
5 × ₹30.44
₹152.20
excl. GST
₹179.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
5N50
₹152.20 for 5 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -45℃~+125℃
- Drain to Source Voltage
- 500V
- Output Capacitance(Coss)
- 42pF
- Current - Continuous Drain(Id)
- 5A
- Ciss-Input Capacitance
- 582pF
- Pd - Power Dissipation
- 83W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 1.3Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 14nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.385 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDD5N50NZTM-HXY#C49256442HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 129 | ₹92.15 · 129 in stock | View |
 | STD5NK50ZT4-HXY#C53262956HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 78 | ₹62.72 · 78 in stock | View |
 | IRFR430BTM-HXY#C53262957HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹81.19 · 48 in stock | View |
 | SPD03N50C3ATMA1-HXY#C53262958HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹88.06 · 48 in stock | View |
 | IRFR430BTF-HXY#C53262959HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹144.33 · 48 in stock | View |
