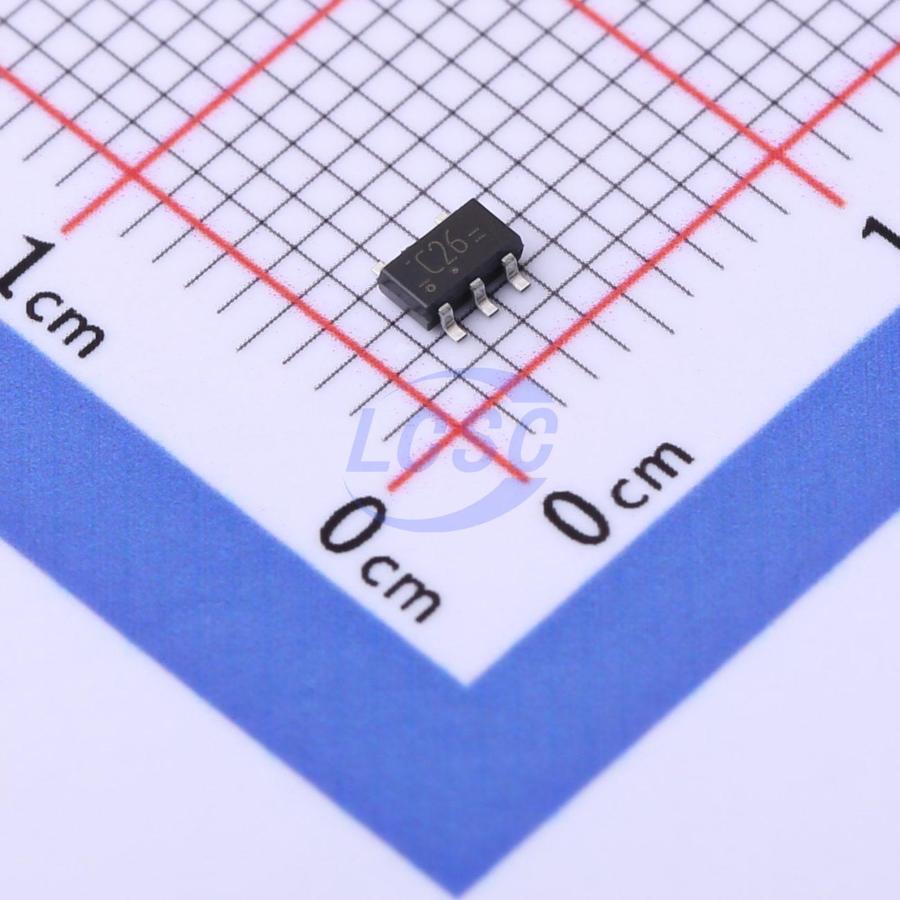

74AHCT1G126GV,125
4.5V~5.5V 1 1 4.7ns@5V,50pF SC-74A Buffers, Drivers, Receivers, Transceivers RoHS
SC-74AROHS3 CompliantActive
Bus buffer/line driver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHCT1G126GV,125
- Store part #
- C554572
- Package / case
- SC-74A
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,110 in stock
#C554572
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.68 | ₹58.40 |
| 50+ | ₹9.18 | ₹459.00 |
| 150+ | ₹7.92 | ₹1,188.00 |
| 500+ | ₹6.99 | ₹3,495.00 |
| 3,000+ | ₹6.18 | ₹18,540.00 |
| 6,000+ | ₹5.81 | ₹34,860.00 |
5 × ₹11.68
₹58.40
excl. GST
₹68.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHCT1G126GV,125
₹58.40 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Function
- Output enable;Level shifting
- Current - Output High(IOH)
- 8mA
- Series
- 74AHCT
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 4.7ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
The 74AHC1G126; 74AHCT1G126 is a single buffer/line driver with 3-state output. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments.
Applications
- Level translation in mixed-voltage environments
- Buffer/line driver
- 3-state outputs
Key features
- Symmetrical output impedance
- Balanced propagation delays
- Wide supply voltage range from 2.0 V to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- Input levels: For 74AHC1G126: CMOS level; For 74AHCT1G126: TTL level
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V; CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHCT1G125W5-7#C842287DIODES · SOT-25-5 | DIODES | SOT-25-5 | 2,050 | ₹16.26 · 2,050 in stock | View |
 | 74AHCT1G126W5-7#C842288DIODES · SOT-25 | DIODES | SOT-25 | 2,320 | ₹9.14 · 2,320 in stock | View |
 | 74AHCT1G125GV,125#C12494Nexperia · SOT-753 | Nexperia | SOT-753 | 415 | ₹45.10 · 415 in stock | View |
 | 74AHCT1G125QW5-7#C3755013DIODES · SOT-25 | DIODES | SOT-25 | 5 | ₹9.75 · 5 in stock | View |
 | SN74AHCT1G126DBVR-TP#C42460245TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,970 | ₹5.34 · 2,970 in stock | View |
