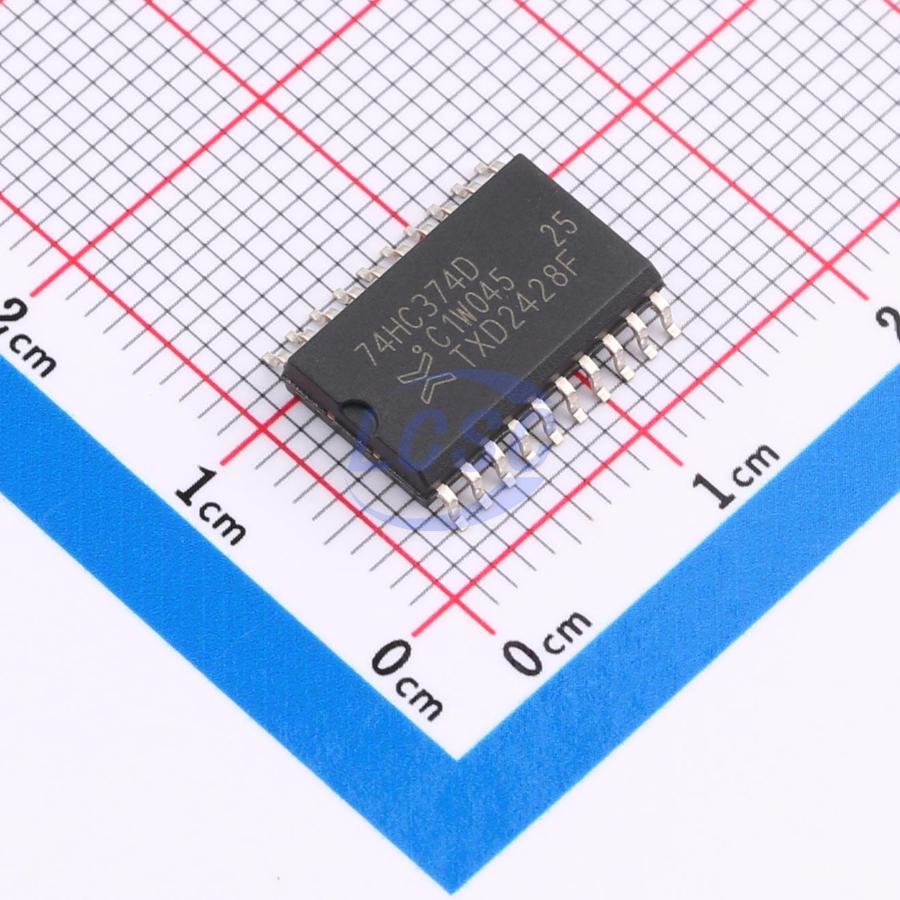

74HC374D,653

The 74HC374; 74HCT374 is an octal positive-edge triggered D-type flip-flop with 3-state outputs. The device features a clock (CP) and output enable (OE) inputs. The flip-flops will store the state of their individual D-inputs that meet the set-up and hold time requirements on the LOW-to-HIGH clock (CP) transition. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Operation of the OE input does not affect the state of the flip-flops. Inputs also include clamp diodes, this enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Applications

• Digital logic circuits
• Data registers
• Bus interfaces
• Signal processing
• Timing control
• Low-power systems
• High noise immunity applications

Key features

• Wide supply voltage range from 2.0 to 6.0 V
• CMOS low power dissipation
• High noise immunity
• Input levels: For 74HC374: CMOS level For 74HCT374: TTL level
• Octal bus interface
• Non-inverting 3-state outputs
• 8-bit positive, edge-triggered register
• Common 3-state output enable input
• Independent register and 3-state buffer operation
• Complies with JEDEC standards JESD8C (2.7 V to 3.6 V) JESD7A (2.0V to 6.0V)
• Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
• ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V
• Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
