74HCT244D,653
4.5V~5.5V 4 2 13ns@4.5V,50pF SOIC-20-300mil Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-20-300milROHS3 CompliantActive

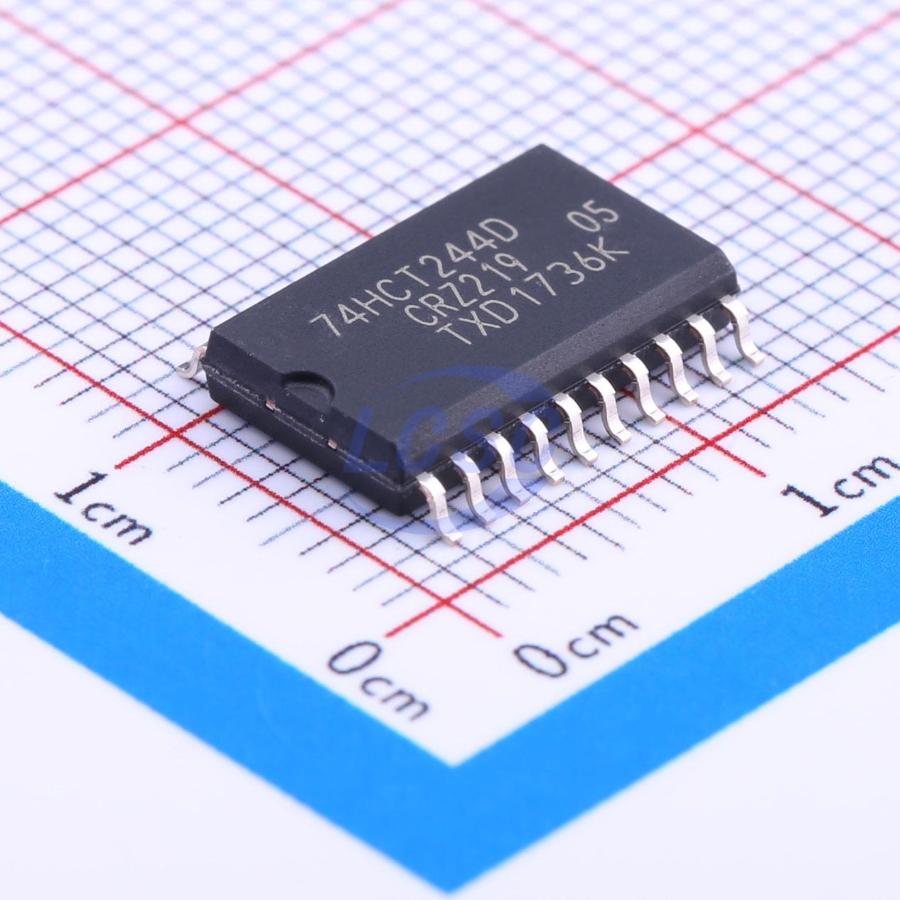

Octal buffer/line driver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HCT244D,653
- Store part #
- C5978
- Package / case
- SOIC-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,181 in stock
#C5978
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.43 | ₹52.43 |
| 10+ | ₹41.12 | ₹411.20 |
| 30+ | ₹36.33 | ₹1,089.90 |
| 100+ | ₹30.24 | ₹3,024.00 |
| 500+ | ₹27.64 | ₹13,820.00 |
| 1,000+ | ₹25.89 | ₹25,890.00 |
1 × ₹52.43
₹52.43
excl. GST
₹61.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
74HCT244D,653
₹52.43 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 6mA
- Voltage - Supply
- 4.5V~5.5V
- Series
- 74HCT
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 6mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 160uA
- Propagation Delay
- 13ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.918 g
Overview
The 74HC244; 74HCT244 is an 8-bit buffer/line driver with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. The device features two output enables (1OE and 2OE), each controlling four of the 3-state outputs. A HIGH on nOE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Wide supply voltage range from 2.0 to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Input levels: For 74HC244: CMOS level; For 74HCT244: TTL level
- Octal bus interface
- Non-inverting 3-state outputs
- Complies with JEDEC standards: JESD8C (2.7 V to 3.6 V), JESD7A (2.0 V to 6.0 V)
- ESD protection: HBM JESD22-A114F exceeds 2000 V, MM JESD22-A115-A exceeds 200 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AIP74HCT244SA.TB#C2943303Wuxi I-core Elec · SOP-20-300mil | Wuxi I-core Elec | SOP-20-300mil | 95 | ₹29.23 · 95 in stock | View |
 | SN74HCT240DWR#C132264TI · SOIC-20-300mil | TI | SOIC-20-300mil | On request | ₹86.70 · 0 in stock | View |
 | SN74HCT244DWR#C6776TI · SOIC-20-300mil | TI | SOIC-20-300mil | 2,724 | ₹144.01 · 2,724 in stock | View |
 | CD74HCT241M96#C2860724TI · SOIC-20-300mil | TI | SOIC-20-300mil | 3 | ₹159.77 · 3 in stock | View |
 | SN74AHCT244DWR#C2675568TI · SOIC-20-300mil | TI | SOIC-20-300mil | 851 | ₹84.01 · 851 in stock | View |
