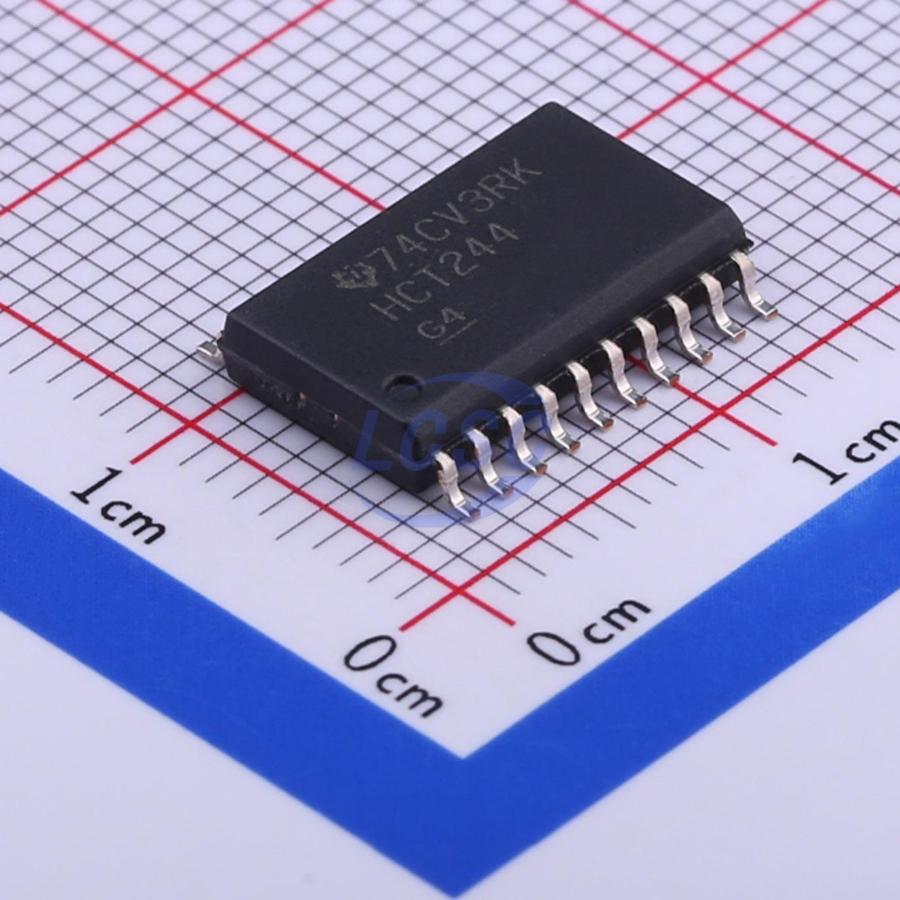

SN74HCT244DWR
Buffer Driver Tri-State Output SOIC-20-300mil
SOIC-20-300milROHS3 CompliantActive
OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74HCT244DWR
- Store part #
- C6776
- Package / case
- SOIC-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,724 in stock
#C6776
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹144.01 | ₹144.01 |
| 10+ | ₹117.26 | ₹1,172.60 |
| 30+ | ₹103.99 | ₹3,119.70 |
| 100+ | ₹90.72 | ₹9,072.00 |
| 500+ | ₹69.62 | ₹34,810.00 |
| 1,000+ | ₹65.70 | ₹65,700.00 |
1 × ₹144.01
₹144.01
excl. GST
₹169.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HCT244DWR
₹144.01 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 6mA
- Series
- 74HCT
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 6mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 25ns@5.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.747 g
Overview
These octal buffers and line drivers are specifically designed to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The SNx4HCT244 devices feature two 4-bit buffers or drivers with separate output-enable (OE) inputs. When OE is low, the device passes non-inverted data from the A inputs to the Y outputs. When OE is high, the outputs are in a high-impedance state.
Applications
- Servers
- LED displays
- Network switches
- Telecom infrastructure
- Motor drivers
- I/O expanders
Key features
- Operating Voltage Range of 4.5 V to 5.5 V
- High - Current Outputs Drive Up To 15 LSTTL Loads
- Low Power Consumption, 80 - μA Max ICC
- Typical propagation delay time (tpd) = 13 ns
- ±6 - mA Output Drive at 5 V
- Low Input Current of 1 μA Max
- Inputs Are TTL - Voltage Compatible
- 3 - State Outputs Drive Bus Lines or Buffer Memory Address Registers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HCT240DWR#C132264TI · SOIC-20-300mil | TI | SOIC-20-300mil | On request | ₹86.70 · 0 in stock | View |
 | CD74HCT241M96#C2860724TI · SOIC-20-300mil | TI | SOIC-20-300mil | 3 | ₹159.77 · 3 in stock | View |
 | AIP74HCT244SA.TB#C2943303Wuxi I-core Elec · SOP-20-300mil | Wuxi I-core Elec | SOP-20-300mil | 95 | ₹29.23 · 95 in stock | View |
 | 74HCT244D,653#C5978Nexperia · SOIC-20-300mil | Nexperia | SOIC-20-300mil | 14,181 | ₹52.43 · 14,181 in stock | View |
 | AiP74HCT244SA20.TR#C52120883Wuxi I-core Elec · SOP-20 | Wuxi I-core Elec | SOP-20 | 1,975 | ₹26.17 · 1,975 in stock | View |
