MSKSEMIDatasheet (PDF)

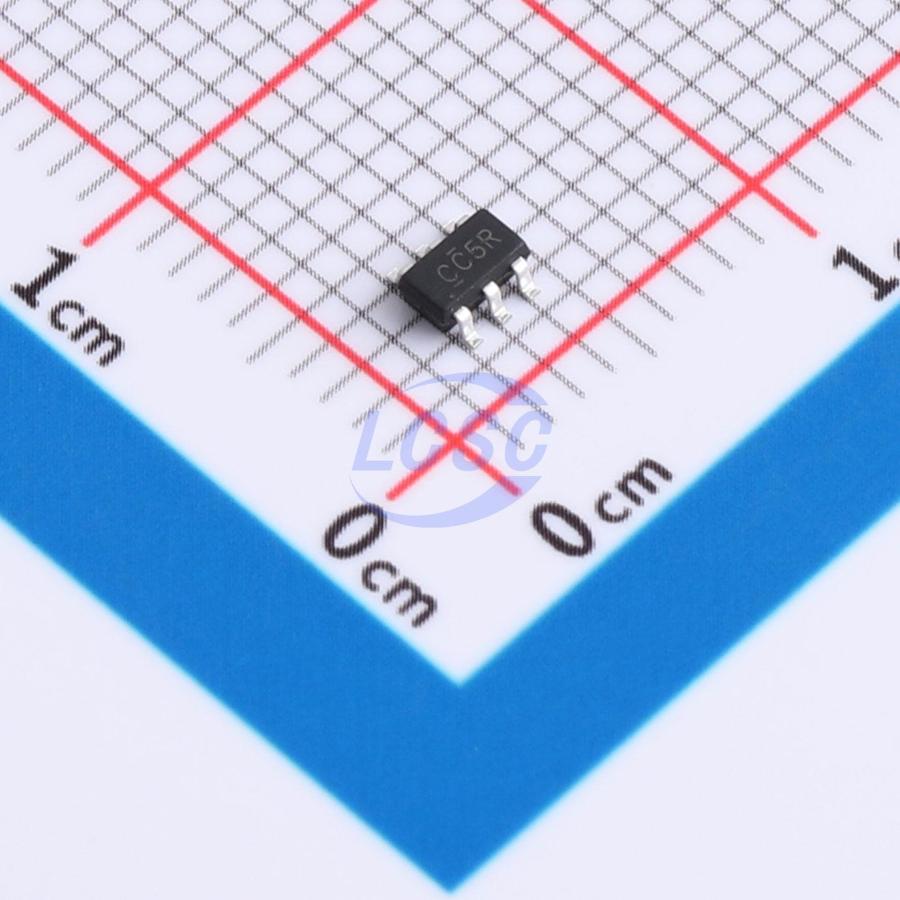

74LVC1G3157GV-MS
1.65V~5.5V 1 350MHz 50Ω Video,audio SOT-23-6 Analog Switches - Special Purpose
SOT-23-6RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- 74LVC1G3157GV-MS
- Store part #
- C52988866
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,770 in stock
#C52988866
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.78 | ₹97.80 |
| 100+ | ₹7.79 | ₹779.00 |
| 300+ | ₹6.79 | ₹2,037.00 |
| 3,000+ | ₹6.05 | ₹18,150.00 |
| 6,000+ | ₹5.45 | ₹32,700.00 |
| 9,000+ | ₹5.15 | ₹46,350.00 |
10 × ₹9.78
₹97.80
excl. GST
₹115.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G3157GV-MS
₹97.80 for 10 + GST
Specifications
- Turn-on time
- 24ns;14ns;7.6ns;5.7ns
- Turn-off time
- 13ns;7.5ns;5.3ns;3.8ns
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1
- -3dB Bandwidth
- 350MHz
- Ron
- 50Ω
- Propagation Delay (tpd)
- 300ps
- Operating Temperature
- -25℃~+85℃
- Applications
- Video,audio
- Features
- Fault protection;Glitch-free switching
- Con
- 15.5pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
The 74LVC1G3157 is an advanced CMOS analog switch fabricated using silicon-gate CMOS technology. It achieves very low propagation delay while maintaining the low power consumption characteristic of CMOS. Analog and digital voltages can vary across the full supply voltage range (from VCC to GND). The select pin features overvoltage protection, allowing voltages up to 5.5V above VCC on the pin without damaging the device or interrupting its operation, regardless of the operating voltage.
Key features
- Low power consumption
- High speed
- Standard CMOS logic levels
- High bandwidth with improved linearity
- Switchable standard NTSC/PAL video, audio, SPDIF, and HDTV signals
- Suitable for clock switching, data multiplexing, etc.
- Low on-resistance
- Break-before-make circuit to prevent accidental short circuits
- Operating temperature range: -25℃ ~ +85℃
- Package: SOT-363, XSON-6(1x1.5), SOT23-6
