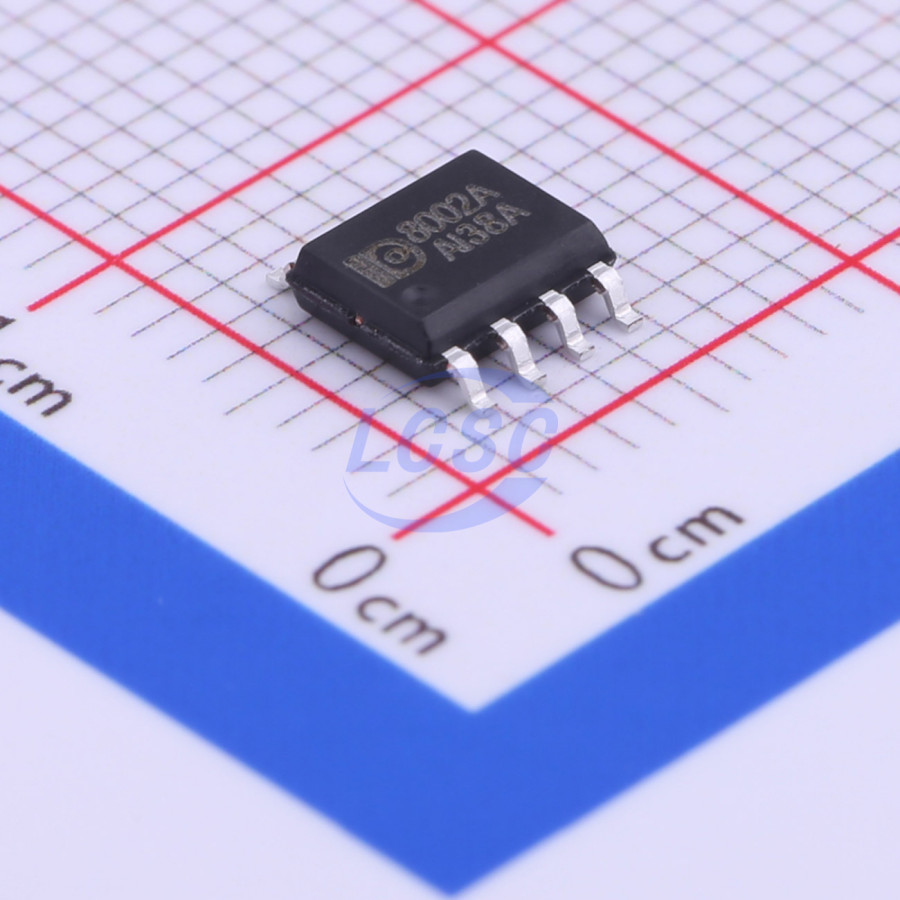

8002A

The 8002A is a Class AB, mono, bridge audio power amplifier with shutdown mode. Operating at 5V with a 1kHz input signal, it delivers a maximum output power of 3W (4Ω load, THD<10%) or 2W (4Ω load, THD<1%); total harmonic distortion plus noise is less than 1% across the 20Hz to 20kHz audio bandwidth. The device requires minimal external components to deliver high-quality output power, with no external coupling capacitors, bootstrap capacitors, snubber networks, or feedback resistors required at the output. The 8002A comes in an SOP-8 package, making it ideal for low-power, compact portable systems. It supports a shutdown mode via a control pin for reduced power consumption and incorporates an internal thermal shutdown protection mechanism. The amplifier is unity-gain stable and operates reliably, with voltage gain adjustable through external resistor configuration.

Applications

• Personal computers
• Passive speakers
• Toys and game consoles
• Portable consumer electronics

Key features

• THD+N < 10% (at 3W output), THD+N < 1% (at 2W output)
• High output power (4Ω load, 1kHz frequency)
• Low shutdown mode leakage current: 10μA (typical)
• Externally adjustable gain
• Unity-gain stable
• Wide operating voltage range: 2.2V~5.5V
• No external coupling capacitors, bootstrap capacitors, or snubber networks required
• SHUTDOWN pin must not be left floating; connect to GND when not in use
• SOP-8 package
