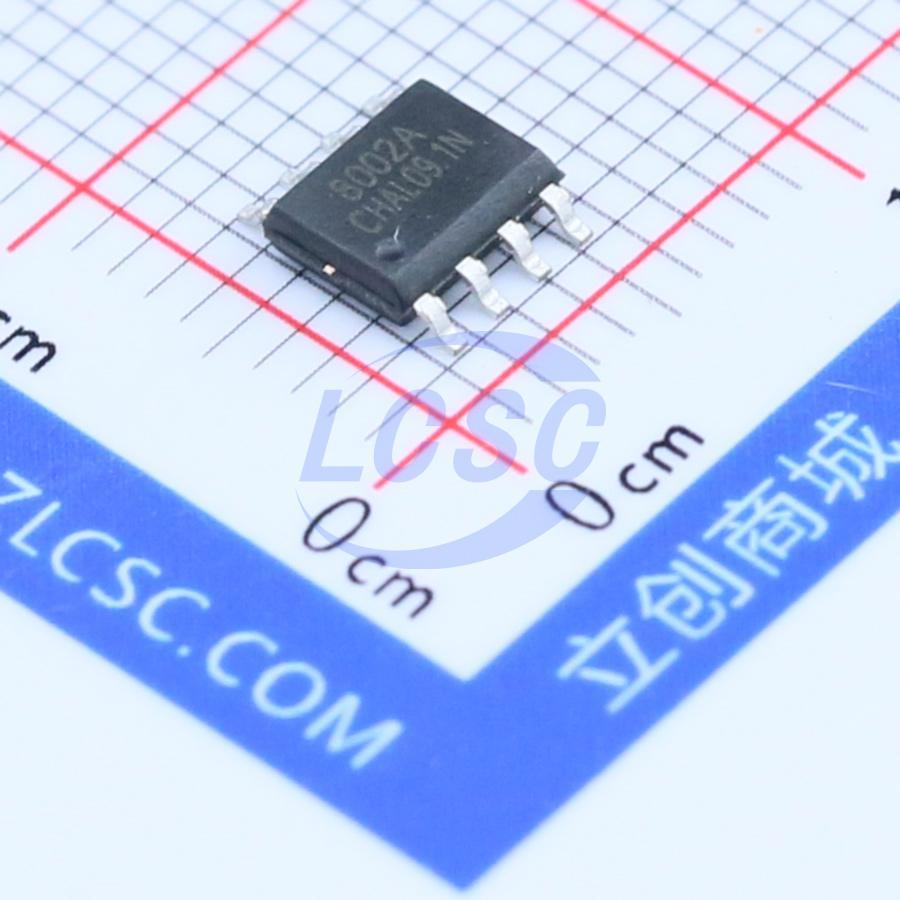

FM8002A
4.4mA 2.5V~5.5V 1-Channel 2Wx1@4Ω SOP-8 Audio Amplifiers RoHS
SOP-8ROHS CompliantActive
2W audio power amplifier IC
- Manufacturer
- FM
- Manufacturer part #
- FM8002A
- Store part #
- C94625
- Package / case
- SOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,88,080 in stock
#C94625
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.49 | ₹74.90 |
| 100+ | ₹6.09 | ₹609.00 |
| 300+ | ₹5.32 | ₹1,596.00 |
| 4,000+ | ₹4.86 | ₹19,440.00 |
| 8,000+ | ₹4.23 | ₹33,840.00 |
| 20,000+ | ₹4.18 | ₹83,600.00 |
10 × ₹7.49
₹74.90
excl. GST
₹88.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FM8002A
₹74.90 for 10 + GST
Specifications
- Quiescent Current
- 4.4mA
- Voltage - Supply
- 2.5V~5.5V
- Features
- Enable/shutdown function;Automatic mute/no-noise switch;Analog voltage gain
- Total Harmonic Distortion + Noise (THD+N)
- 0.2%
- Operating Temperature
- -40℃~+85℃
- Speaker Channels
- 1-Channel
- Output Power
- 2Wx1@4Ω
- Power Supply Rejection Ratio (PSRR)
- 63dB
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.16 g
Overview
FM8002A is an audio power amplifier designed for portable electronic products. At 5V, the maximum output power is 1.5W (8Ω load) and 2.0W (4Ω load). FM8002A features a simple application circuit requiring minimal external components. No external coupling capacitors or bootstrap capacitors are needed at the output. Housed in an SOP8 package, it is well suited for low-voltage, low-power audio applications. FM8002A supports shutdown mode via a control pin to reduce power consumption. Through innovative "switch/toggle noise" suppression technology, FM8002A eliminates pop noise during power-on and power-off. FM8002A operates with high stability, a gain-bandwidth product of up to 2.5MHz, and is unity-gain stable. The voltage gain can be adjusted by configuring external resistors, offering convenient design flexibility.
Applications
- Suitable for portable devices, desktop computers, and audio equipment operating at low voltage
Key features
- No output coupling capacitor or external buffer circuit required
- Stable gain output
- External gain setting
- Package: SOP-8
