TECH PUBLICDatasheet (PDF)
824001

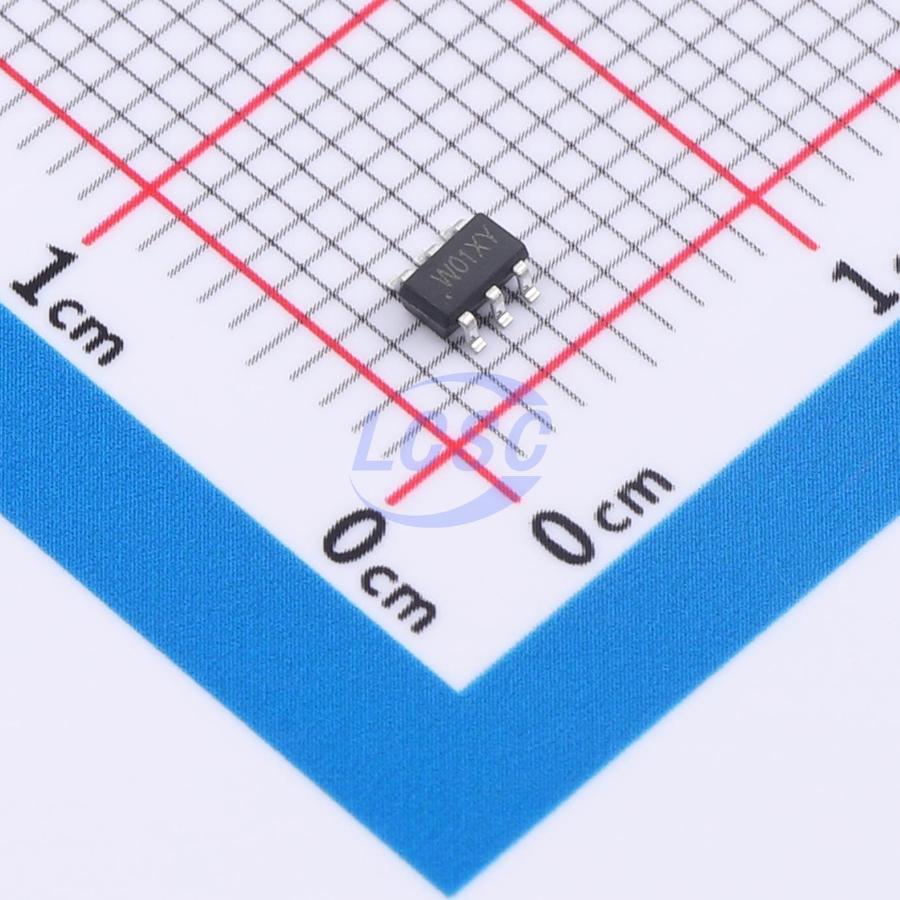

12V 4A@8/20us 150W@8/20us 6.5V 5V SOT-23-6 TVS Diodes
SOT-23-6RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 824001
- Store part #
- C52817046
- Package / case
- SOT-23-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,610 in stock
#C52817046
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.97 | ₹59.70 |
| 100+ | ₹4.70 | ₹470.00 |
| 300+ | ₹4.07 | ₹1,221.00 |
| 3,000+ | ₹3.60 | ₹10,800.00 |
| 6,000+ | ₹3.21 | ₹19,260.00 |
| 9,000+ | ₹3.03 | ₹27,270.00 |
10 × ₹5.97
₹59.70
excl. GST
₹70.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
824001
₹59.70 for 10 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Voltage - Breakdown
- 6.5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
Applications
- Mobile phones and accessories
- Personal digital assistants
- USB 2.0 and USB 3.0 power and data cables
- Laptops and handheld devices
Key features
- Low operating voltage: 5V
- Ultra-low capacitance: 0.3pF typical (I/O to I/O)
- Ultra-low leakage: nanoamp-level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test air discharge: ±25kV
- Contact discharge: ±20kV
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Surge): 4.0A (8/20μs)
- Lead-free devices
- Typical response time < 1 ns
