TECH PUBLICDatasheet (PDF)

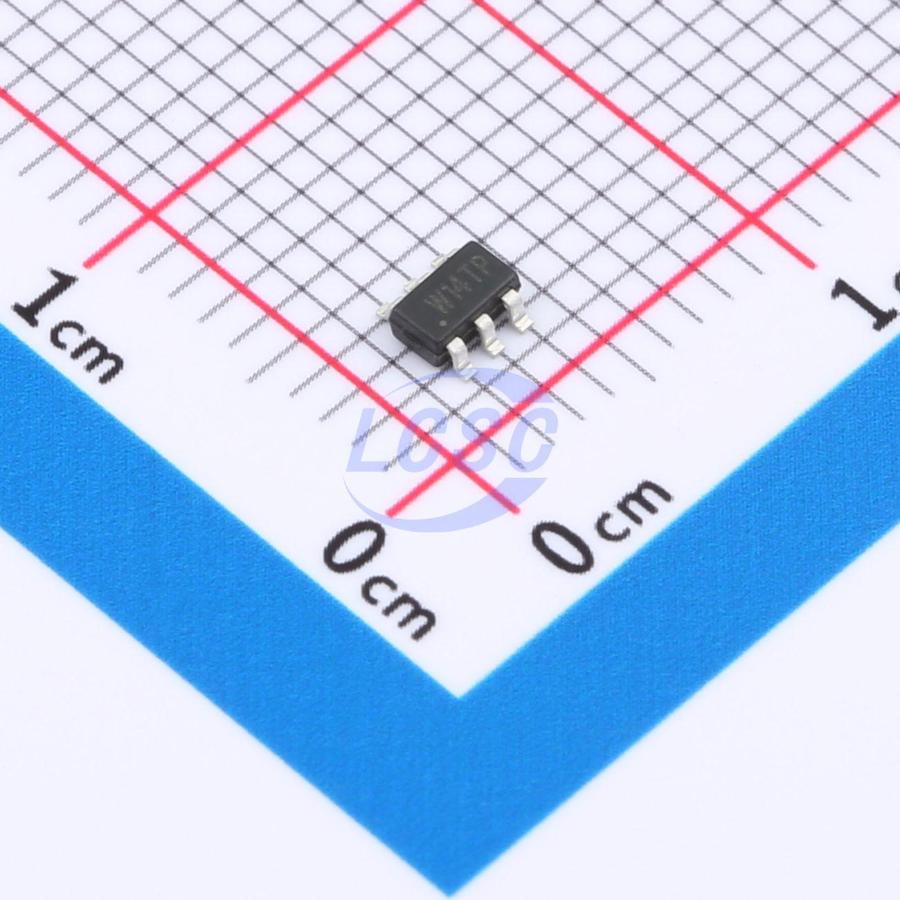

824014
15VC Clamp 4A@8/20us Ipp SOT-23-6
SOT-23-6RoHSActive
5VWM 15VC SOT-23-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 824014
- Store part #
- C23380829
- Package / case
- SOT-23-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,875 in stock
#C23380829
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.60 | ₹53.00 |
| 50+ | ₹8.31 | ₹415.50 |
| 150+ | ₹7.16 | ₹1,074.00 |
| 500+ | ₹6.30 | ₹3,150.00 |
| 3,000+ | ₹5.61 | ₹16,830.00 |
| 6,000+ | ₹5.27 | ₹31,620.00 |
5 × ₹10.60
₹53.00
excl. GST
₹62.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
824014
₹53.00 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Voltage - Breakdown
- 6.5V
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- USB 2.0 and USB3.0 power and data line
- Notebooks and Handhelds
Key features
- Low operating voltage: 5V
- Ultra low capacitance: 0.3pF typical (I/O to I/O)
- Ultra low leakage: nA level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC6 1000-4-5(Lightning):4.0A(8/20μs)
- These are Pb-Free Devices
- Response Time is Typically < 1 ns
