TECH PUBLICDatasheet (PDF)

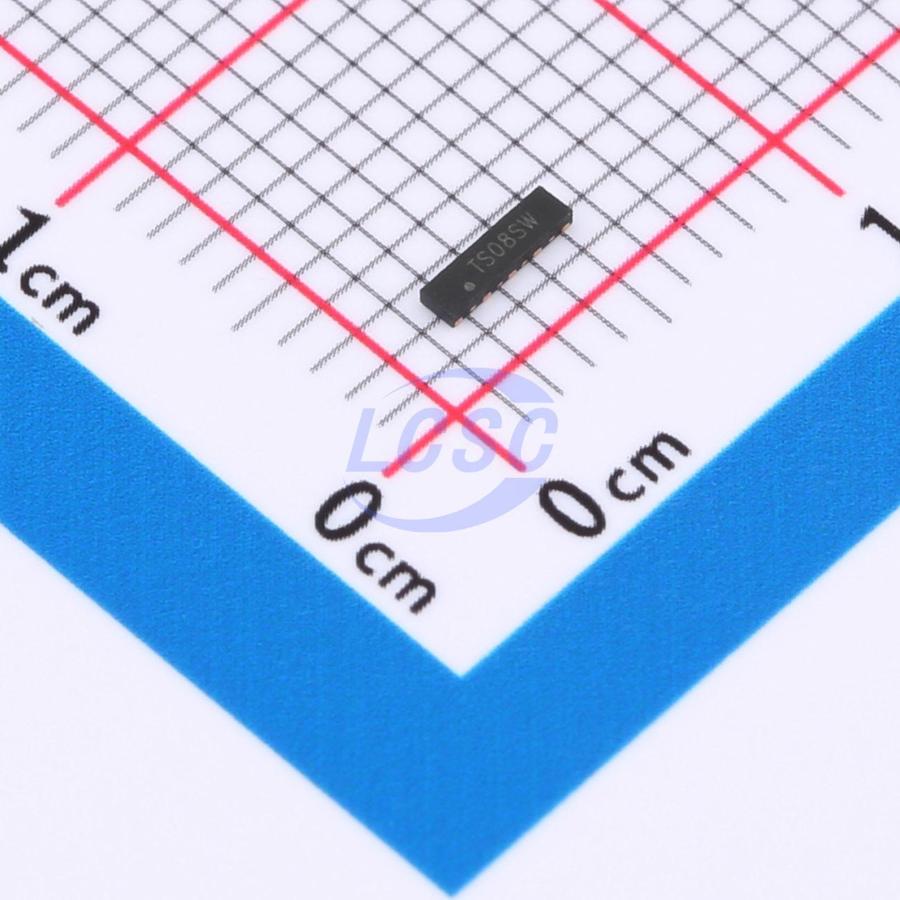

824014883
18VC Clamp 4A@8/20us Ipp DFN-9(1x3.8)
DFN-9(1x3.8)RoHSActive
3.3VWM 18VC DFN-9(1x3.8)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 824014883
- Store part #
- C22435039
- Package / case
- DFN-9(1x3.8)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,715 in stock
#C22435039
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.48 | ₹212.40 |
| 50+ | ₹34.05 | ₹1,702.50 |
| 150+ | ₹30.44 | ₹4,566.00 |
| 500+ | ₹25.93 | ₹12,965.00 |
| 3,000+ | ₹23.92 | ₹71,760.00 |
| 6,000+ | ₹22.72 | ₹1,36,320.00 |
5 × ₹42.48
₹212.40
excl. GST
₹250.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
824014883
₹212.40 for 5 + GST
Specifications
- Clamping Voltage
- 18V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Number of Channels
- 8
- Voltage - Breakdown
- 3.6V
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.135 g
Overview
Applications
- USB 3.0, 3.1 and type C
- HDMI 1.4 High-Speed Data Lines
Key features
- Ultra low capacitance: 0.29pF typical (IO to I0)
- Ultra low leakage: nA level
- Low operating voltage: 3.3V
- Low clamping voltage
- Protects eight data lines
- Leadless flow-through package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
- IEC61000-4-5 (Lightning) 4A (8/20μs)
- IEC61000-4-4 (EFT) 40A (5/50ns)
