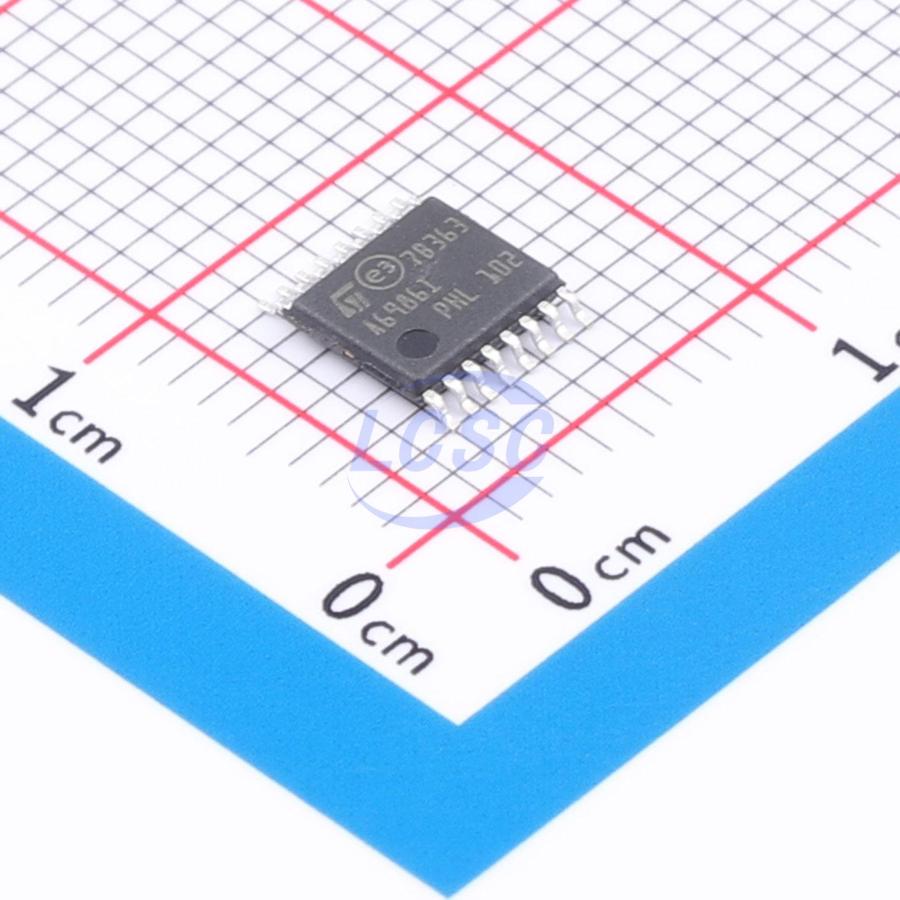

A6986ITR

225kHz~1.1MHz Step-down type Adjustable 1.9A HTSSOP-16 Voltage Regulators - DC DC Switching Regulators RoHS

HTSSOP-16ROHS3 CompliantActive

Automotive 38 V, 5 W synchronous iso-buck converter

Manufacturer: ST
Manufacturer part #: A6986ITR
Store part #: C3191052
Package / case: HTSSOP-16
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

20 in stock

#C3191052

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹727.50	₹727.50
10+	₹625.78	₹6,257.80
30+	₹563.55	₹16,906.50
100+	₹511.62	₹51,162.00

Quantity (min 1)

1 × ₹727.50

₹727.50

excl. GST

₹858.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

A6986ITR

₹727.50 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃@(TJ)
Frequency - Switching: 225kHz~1.1MHz
Function: Step-down type
Number of Outputs: 1
Features: Frequency synchronization;Adjustable soft-start;Cycle-by-cycle current limiting;Overcurrent Protection;Operating status indication;Built-in LDO regulator
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4V~38V
Switch tube (built-in/external): Built-in
Output Current: 1.9A
Quiescent Current: 1.5mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.06 g

Overview

The A6986I is an automotive grade device specifically designed for the isolated buck topology. The 100% duty cycle capability and the wide input voltage range meet the cold crank and load dump specifications for automotive systems. The primary output voltage can be accurately adjusted, whereas the isolated secondary output is derived by using a given transformer ratio. No optocoupler is required. The primary sink capability typically up to 1.9 A (even during soft-start) allows a proper energy transfer to the secondary side as well as enabling a tracked soft-start of the secondary output. The control loop is based on a peak current mode architecture and the device operates in forced PWM. The 300 ns blanking time filters oscillations, generated by the transformer leakage inductance, making the solution more robust. Pulse-by-pulse current sensing on both power elements implements an effective constant current protection in the primary side. Due to the primary reverse current limit, the secondary output is protected against short-circuit events. A primary output voltage supervisor, which notifies primary output voltage regulation through the RST open collector output, overvoltage protection, adjustable switching frequency, synchronization and a programmable soft-start are also available. For traditional buck topology in automotive application the A6986 / A6985F / A6986F / A6986H is recommended.
