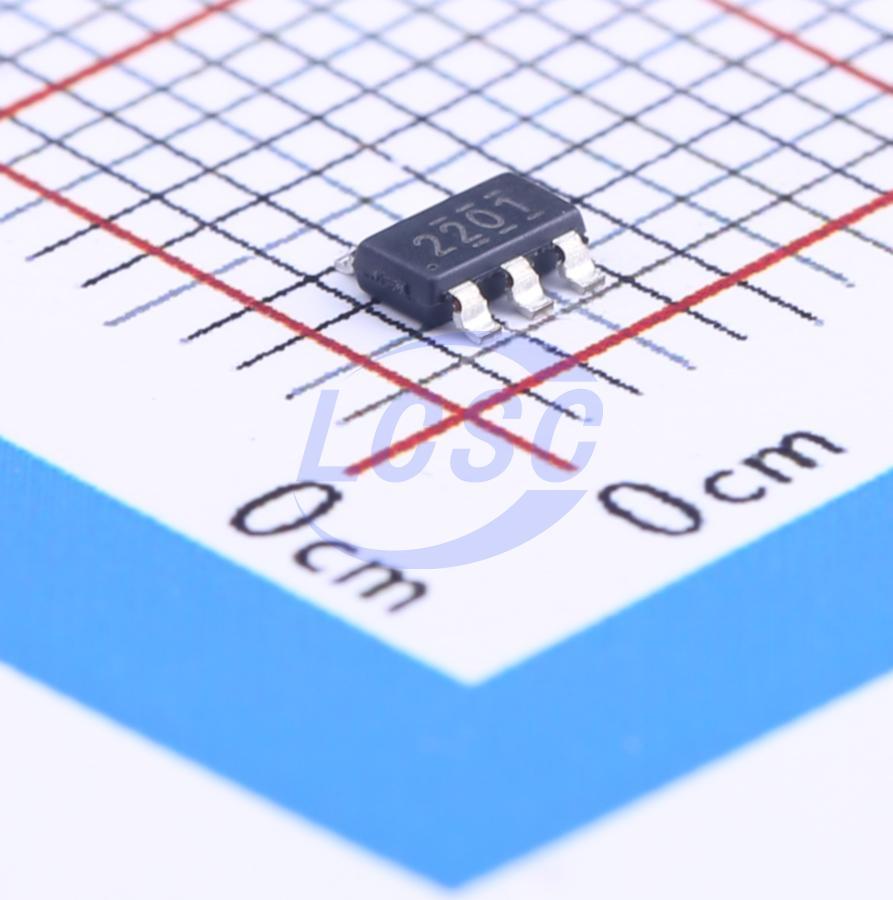

TPS562201DDCR

TPS562201 and TPS562208 are easy-to-use 2A synchronous buck converters in a SOT-23 package. These devices are optimized to operate with a minimum number of external components while achieving low standby current. These SMPS devices employ D-CAP2 mode control to provide fast transient response and support low-ESR output capacitors such as high-polymer capacitors and ultra-low ESR ceramic capacitors without requiring external compensation components. The TPS562201 can operate in pulse-skip mode to maintain high efficiency during light-load operation. The TPS562201 and TPS562208 are available in a 6-pin 1.6mm×2.9mm SOT (DDC) package, rated for a junction temperature range of -40°C to 125°C.

Applications

• Digital TV power supply
• HD Blu-Ray disc player
• Network home terminal equipment
• Digital set-top box (STB)
• Security surveillance

Key features

• TPS562201 and TPS562208 2A converters integrate 140mΩ and 84mΩ FETs
• D-CAP2™ mode control for fast transient response
• Input voltage range: 4.5V to 17V
• Output voltage range: 0.76V to 7V
• Pulse skip mode (TPS562201) or continuous conduction mode (TPS562208)
• 580kHz switching frequency
• Low shutdown current: less than 10μA
• 2% feedback voltage accuracy (25°C)
• Start-up from pre-biased output voltage
• Cycle-by-cycle overcurrent limiting
• Discontinuous mode overcurrent protection
• Non-latching UVP and TSD protection
• Fixed soft-start time: 1.0ms
