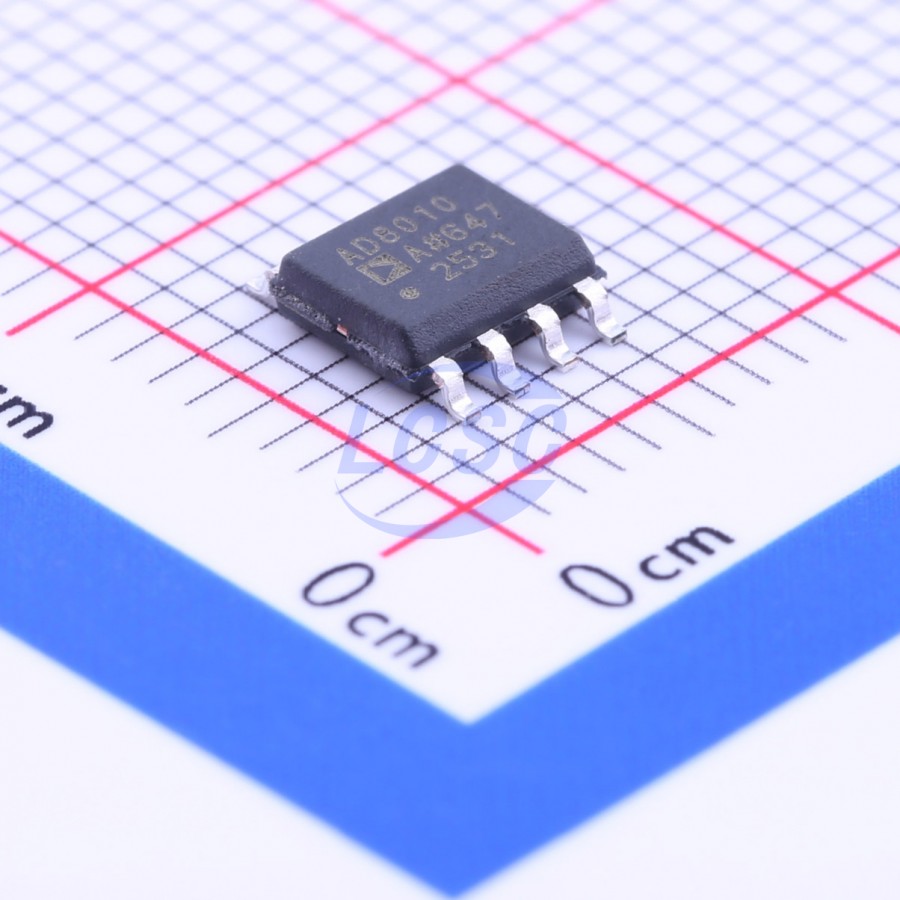

AD8010ARZ

The AD8010 is a low power, high current amplifier capable of delivering a minimum load drive of 175 mA. Signal performance such as 0.02% and 0.03° differential gain and phase error is maintained while driving eight 75 Ω back terminated video lines. The current feedback amplifier features gain flatness to 60 MHz and -3 dB (G = +1) signal bandwidth of 230 MHz and only requires a typical of 15.5 mA supply current from ± 5 V supplies. These features make the AD8010 an ideal component for Video Distribution Amplifiers or as the drive amplifier within high data rate Digital Subscriber Line (VDSL and xDSL) systems. The AD8010 is an ideal component choice for any application that needs a driver that will maintain signal quality when driving low impedance loads. The AD8010 is offered in three package options: an 8-lead DIP, 16-lead wide body SOIC and a low thermal resistance 8-lead SOIC, and operates over the industrial temperature range of -40°C to +85°C.

Applications

• Video Distribution Amplifier
• VDSL, xDSL Line Driver
• Communications
• ATE
• Instrumentation

Key features

• 200 mA of Output Current
• 9 Ω Load
• SFDR –54 dBc @ 1 MHz
• Differential Gain Error 0.04%, f = 4.43 MHz
• Differential Phase Error 0.06°, f = 4.43 MHz
• Maintains Video Specifications Driving Eight Parallel 75 Ω Loads 0.02% Differential Gain 0.03° Differential Phase 0.1 dB Gain Flatness to 60 MHz
• THD –72 dBc @ 1 MHz, Rₗ = 18.75 Ω
• IP3 42 dBm @ 5 MHz, Rₗ = 18.75 Ω
• 1 dB Gain Compression 21 dBm @ 5 MHz, R̄ₗ = 100 Ω
• 230 MHz -3 dB Bandwidth, G = +7, Rₗ = 18.75 Ω
• 800 V/μs Slew Rate, Rₗ = 18.75 Ω
• 25 ns Settling Time to 0.1%
• Available in 8-Lead DIP, 16-Lead Wide Body SOIC and Thermally Enhanced 8-Lead SOIC
