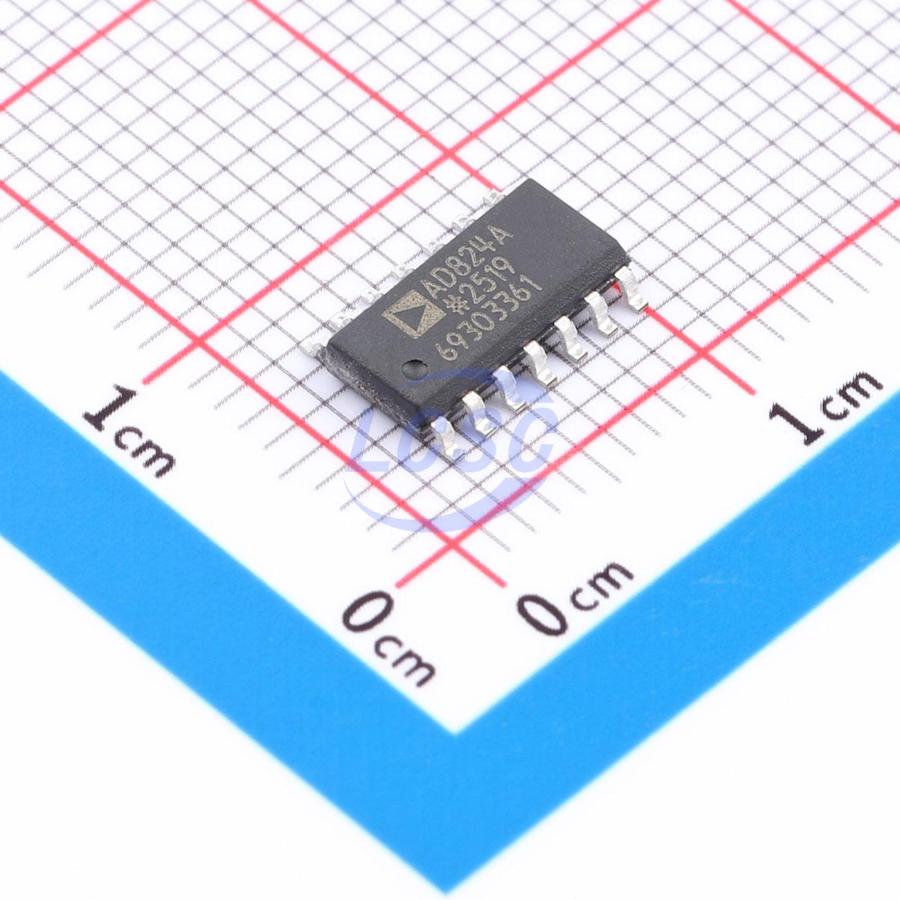

AD824ARZ-14

The AD824 is a quad, FET input, single supply amplifier, featuring rail-to-rail outputs. The combination of FET inputs and rail-to-rail outputs makes the AD824 useful in a wide variety of low voltage applications where low input current is a primary consideration. The AD824 is guaranteed to operate from a 3V single supply up to ±15V dual supplies. AD824AR-3V parametric performance at 3V is fully guaranteed. Fabricated on complementary bipolar process, the AD824 has a unique input stage that allows the input voltage to safely extend beyond the negative supply and to the positive supply without any phase inversion or latch-up. The output voltage swings to within 15mV of the supplies. Capacitive loads to 350pF can be handled without oscillation. The FET input combined with laser trimming provides an input that has extremely low bias currents with guaranteed offsets below 1mV. This enables high accuracy designs even with high source impedances. Precision is combined with low noise, making the AD824 ideal for use in battery powered medical equipment. The ability of the output to swing rail-to-rail enables designers to build multistage filters in single supply systems and maintain high signal-to-noise ratios. The AD824 is specified over the extended industrial (-40°C to +85°C) temperature range and is available in narrow 14-lead SOIC package.

Applications

• Photo diode preamplifier
• Battery powered instrumentation
• Power supply control and protection
• Medical instrumentation
• Remote sensors
• Low voltage strain gage amplifiers
• DAC output amplifier

Key features

• Single supply operation: 3 V to 30 V
• Very low input bias current: 2 pA
• Wide input voltage range
• Rail-to-rail output swing
• Low supply current per amplifier: 500µA
• Wide bandwidth: 2 MHz
• Slew rate: 2 V/µs
• No phase reversal
