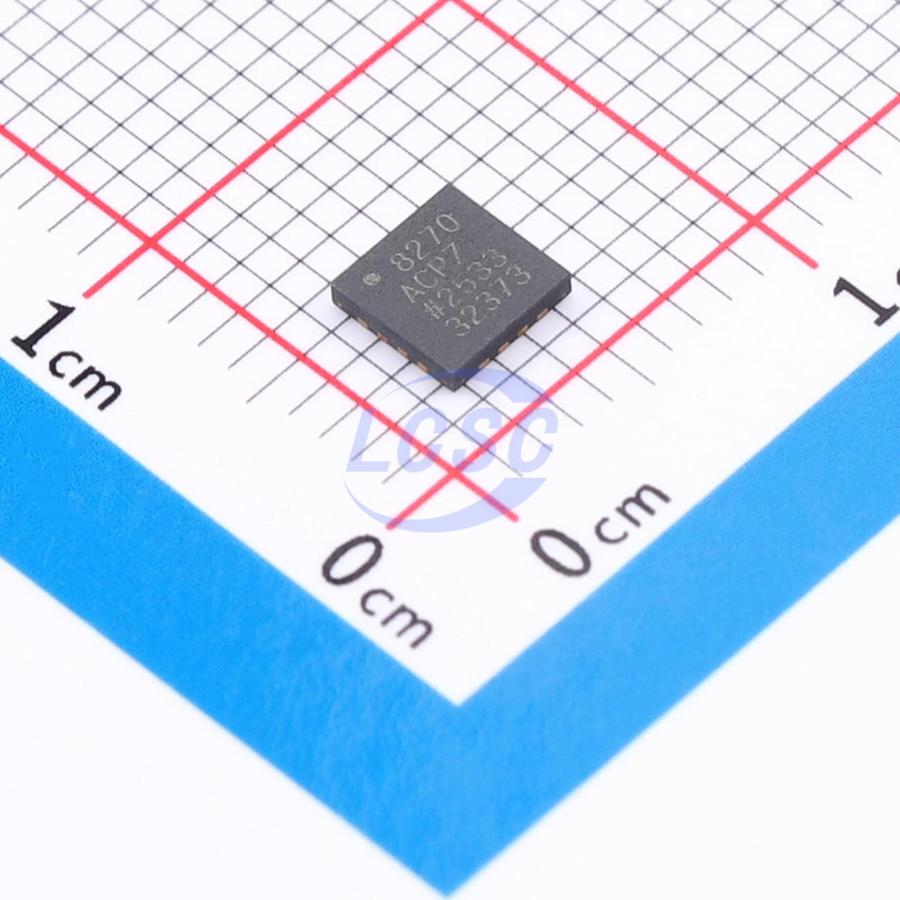

AD8270ACPZ-WP

The AD8270 is a low distortion, dual-channel amplifier with internal gain setting resistors. With no external components, it can be configured as a high performance difference amplifier with gains of 0.5, 1, or 2. It can also be configured in over 40 single-ended configurations, with gains ranging from -2 to +3. The AD8270 is the first dual-difference amplifier in the small 4mm×4mm LFCSP. It requires the same board area as a typical single-difference amplifier. The smaller package allows a 2× increase in channel density and a lower cost per channel, all with no compromise in performance. The AD8270 operates on both single and dual supplies and requires only 2.5mA maximum supply current for each amplifier. It is specified over the industrial temperature range of -40°C to +85°C and is fully RoHS compliant.

Applications

• Instrumentation amplifier building blocks
• Level translators
• Automatic test equipment
• High performance audio
• Sine/cosine encoders

Key features

• With no external resistors
• Difference amplifier: gains of 0.5, 1, or 2
• Single ended amplifiers: over 40 different gains
• Set reference voltage at midsupply
• Excellent ac specifications
• 15 MHz bandwidth
• 30 V/μs slew rate
• High accuracy dc performance
• 0.08% maximum gain error
• 10 ppm/°C maximum gain drift
• 80 dB minimum CMRR (G = 2)
• Two channels in small 4 mm × 4 mm LFCS
• Supply current: 2.5 mA per channel
• Supply range: ±2.5 V to ±18 V
