ADIDatasheet (PDF)

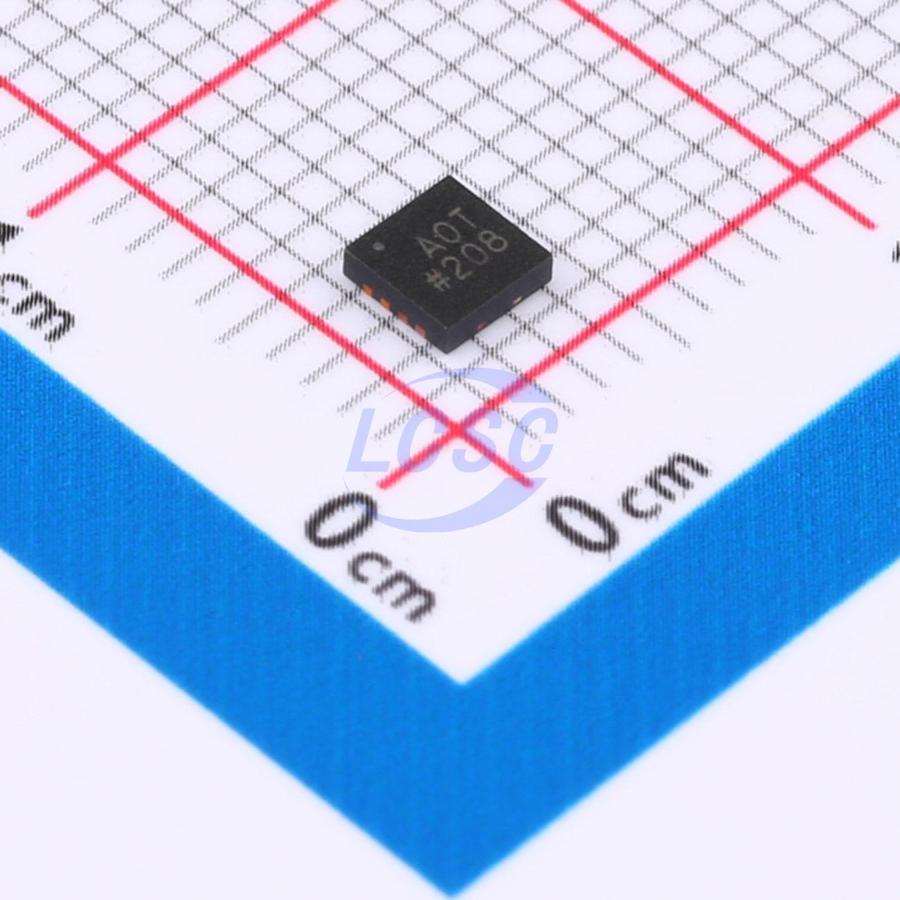

AD8617ACPZ-R7
80mA 2 2.2mV 100V/ms 95dB 0.2pA 50uA 400kHz Rail-to-Rail Input, Rail-to-Rail Output LFCSP-8(3x3) Instrumentation, Op Amps, Buffer Amps RoHS
LFCSP-8(3x3)ROHS3 CompliantActive
Low Cost Micropower, Low Noise CMoS Rail-to-Rail, Input/Output Operational Amplifiers
- Manufacturer
- ADI
- Manufacturer part #
- AD8617ACPZ-R7
- Store part #
- C653007
- Package / case
- LFCSP-8(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C653007
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹511.68 | ₹511.68 |
| 10+ | ₹499.76 | ₹4,997.60 |
| 30+ | ₹491.96 | ₹14,758.80 |
| 100+ | ₹484.15 | ₹48,415.00 |
1 × ₹511.68
₹511.68
excl. GST
₹603.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
AD8617ACPZ-R7
₹511.68 for 1 + GST
Specifications
- Output Current
- 80mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2.2mV
- Slew Rate
- 100V/ms
- Input Offset Current(Ios)
- 0.5pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 0.2pA
- Input Offset Voltage Drift(Vos TC)
- 4.5uV/℃
- Quiescent Current
- 50uA
- Gain Bandwidth Product
- 400kHz
- Input Voltage Noise Density
- 22nV/√Hz@10kHz
- Dual Supply
- -2.5V~-900mV;900mV~2.5V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.056 g
Overview
The AD8613/AD8617/AD8619 are single, dual, and quad micropower, rail-to-rail input and output amplifiers that feature low supply current, as well as low input voltage and current noise. The parts are fully specified to operate from 1.8 V to 5 V single supply, or ±0.9 V and ±2.5 V dual supply. The combination of low noise, very low input bias currents, and low power consumption make the AD8613/AD8617/AD8619 especially useful in portable and loop-powered instrumentation. The ability to swing rail-to-rail at both the input and output enables designers to buffer CMOS ADCs, DACs, ASICs, and other wide output swing devices in low power, single-supply systems.
Applications
- Battery-powered instrumentation
- Multipole filters
- Current shunt sense
- Sensors
- ADC predrivers
- DAC drivers/level shifters
- Low power ASIC input or output amplifiers
Key features
- Offset voltage: 2.2 mV maximum
- Low input bias current: 1 pA maximum
- Single-supply operation: 1.8 V to 5.5 V
- Low noise: 22 nV/√Hz
- Micropower: 50 μA amplifier maximum over temperature
- No phase reversal
- Unity gain stable
- Qualified for automotive applications
