ADIDatasheet (PDF)

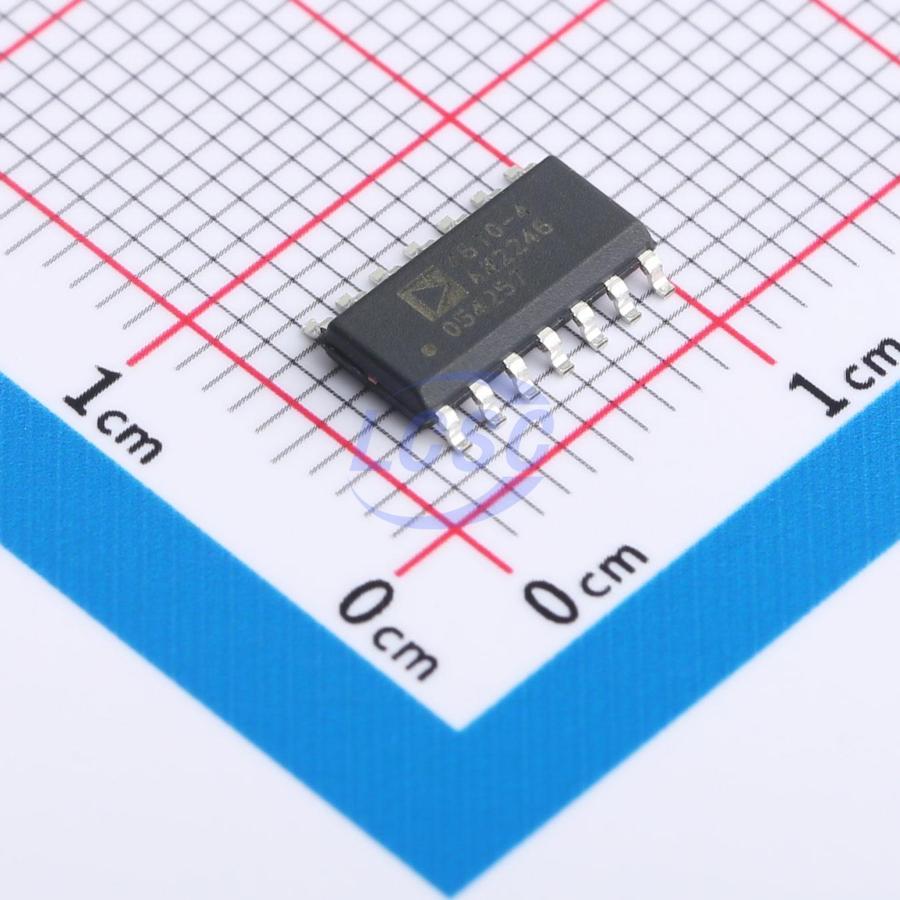

ADA4610-4ARZ
63mA Four channels 400uV 15V/us 100dB 5pA 1.6mA 15.4MHz Rail-to-rail output SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
Low Noise, Precision, Rail-to-Rail Output, JFET Single/Dual/Quad Op Amps
- Manufacturer
- ADI
- Manufacturer part #
- ADA4610-4ARZ
- Store part #
- C462170
- Package / case
- SOIC-14
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C462170
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,909.83 | ₹1,909.83 |
| 10+ | ₹1,885.92 | ₹18,859.20 |
| 30+ | ₹1,844.20 | ₹55,326.00 |
| 100+ | ₹1,807.92 | ₹1,80,792.00 |
1 × ₹1,909.83
₹1,909.83
excl. GST
₹2,253.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 56 per tube
ADA4610-4ARZ
₹1,909.83 for 1 + GST
Specifications
- Output Current
- 63mA
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 400uV
- Slew Rate
- 15V/us
- Input Offset Current(Ios)
- 20pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 5pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 1.6mA
- Gain Bandwidth Product
- 15.4MHz
- Features
- Built-in compensation;Overvoltage protection;High capacitive load driving
- Input Voltage Noise Density
- 7.3nV/√Hz@1kHz
- Dual Supply
- -15V~15V
- Rail to Rail
- Rail-to-rail output
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 56 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.29 g
Overview
The ADA4610-1/ADA4610-2/ADA4610-4 are precision junction field effect transistor (JFET) amplifiers that feature low input noise voltage, current noise, offset voltage, input bias current, and rail-to-rail output. The ADA4610-1 is a single amplifier, the ADA4610-2 is a dual amplifier, and the ADA4610-4 is a quad amplifier. The combination of low offset, noise, and very low input bias current makes these amplifiers especially suitable for high impedance sensor amplification and precise current measurements using shunts. With excellent dc precision, low noise, and fast settling time, the ADA4610-1/ADA4610-2/ADA4610-4 provide superior accuracy in medical instruments, electronic measurement, and automated test equipment. Unlike many competitive amplifiers, the ADA4610-1/ADA4610-2/ADA4610-4 maintain fast settling performance with substantial capacitive loads. Unlike many older JFET amplifiers, the ADA4610-1/ADA4610-2/ADA4610-4 do not suffer from output phase reversal when input voltages exceed the maximum common-mode voltage range. The fast slew rate and great stability with capacitive loads make the ADA4610-1/ADA4610-2/ADA4610-4 ideal for high performance filters. Low input bias currents, low offset, and low noise result in a wide dynamic range for photodiode amplifier circuits. Low noise and distortion, high output current, and excellent speed make the ADA4610-1/ADA4610-2/ADA4610-4 great choices for audio applications. The ADA4610-1/ADA4610-2/ADA4610-4 are specified over the -40℃ to +125℃ extended industrial temperature range.
Applications
- Instrumentation
- Medical instruments
- Multipole filters
- Precision current measurement
- Photodiode amplifiers
- Sensors
- Audio
Key features
- Low offset voltage B grade: 0.4mV maximum (ADA4610-1/ADA4610-2 only) A grade: 1mV maximum
- Low offset voltage drift B grade: 2μV / ℃ maximum (ADA4610-1/ADA4610-2 only) A grade: 8μV / ℃ maximum (SOIC, MSOP, LFCSP packages)
- Low input bias current: 5 pA typical
- Dual-supply operation: 15V to ±15V
- Low voltage noise: 0.45μV p-p at 0.1Hz to 10Hz
- Voltage noise density: 7.30nV / Hz at f = 1kHz
- Low THD + N: 0.00025%
- No phase reversal
- Rail-to-rail output
- Unity-gain stable
- Long-term offset voltage drift (10,000 hours): 5μV typical
- Temperature hysteresis: 8μV typical
