ADIDatasheet (PDF)

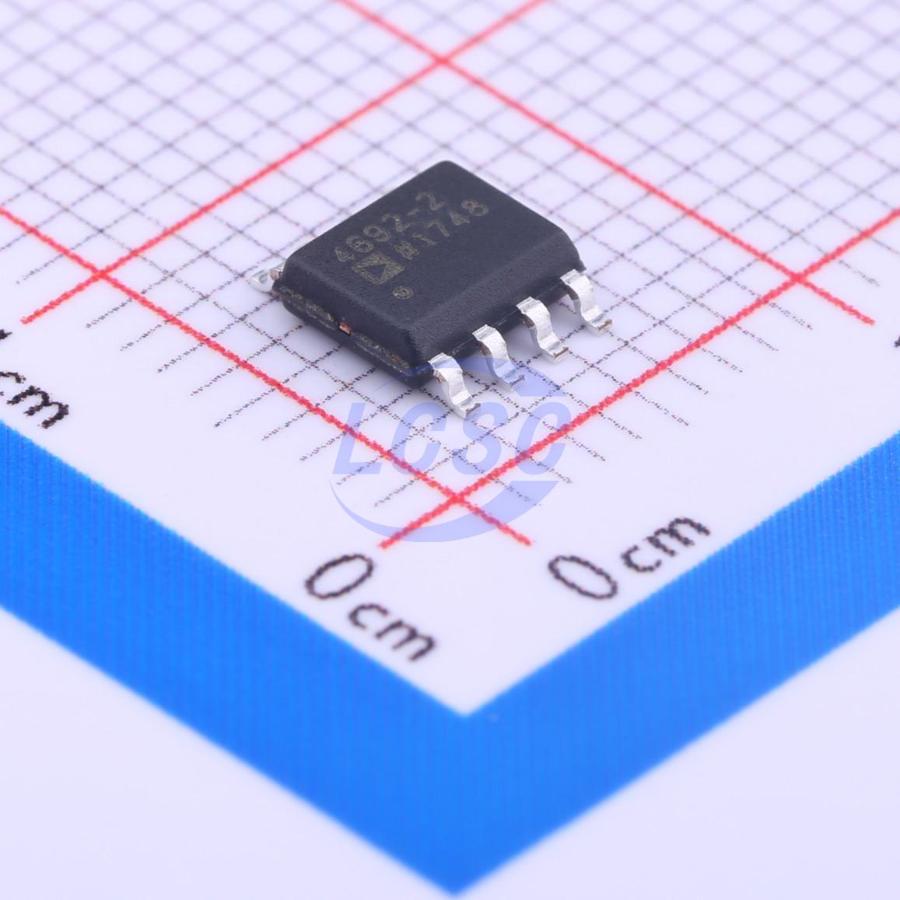

ADA4692-2ARZ-R7
Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Output SOIC-8
SOIC-8ROHS3 CompliantActive
Low-power, 3.6 MHz, low-noise, rail-to-rail output operational amplifier
- Manufacturer
- ADI
- Manufacturer part #
- ADA4692-2ARZ-R7
- Store part #
- C83584
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C83584
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹326.97 | ₹326.97 |
| 10+ | ₹319.81 | ₹3,198.10 |
| 30+ | ₹315.03 | ₹9,450.90 |
| 100+ | ₹310.05 | ₹31,005.00 |
1 × ₹326.97
₹326.97
excl. GST
₹385.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ADA4692-2ARZ-R7
₹326.97 for 1 + GST
Specifications
- Output Current
- 15mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2.5mV
- Slew Rate
- 1.3V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 98dB
- Ib - Input Bias Current
- 5pA
- Input Offset Voltage Drift(Vos TC)
- 4uV/℃
- Quiescent Current
- 165uA
- Gain Bandwidth Product
- 3.6MHz
- Input Voltage Noise Density
- 16nV/√Hz@1kHz
- Dual Supply
- 1.35V~2.5V;-2.5V~-1.35V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.7V~5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
The ADA4691-2/ADA4692-2 are dual-channel and ADA4691-4/ADA4692-4 are quad-channel rail-to-rail output amplifiers operating from a single supply, featuring low power consumption, wide bandwidth, and low noise. The ADA4691-2 includes two independent shutdown pins for further supply current reduction. The ADA4691-4 is a quad-channel amplifier with integrated dual shutdown pins — each pin controls one amplifier pair — in a 16-lead LFCSP package. The ADA4692-4 is a quad-channel version without shutdown mode. These amplifiers are suited for a wide range of applications. Audio, filters, photodiode amplifiers, and charge amplifiers all benefit from this combination of characteristics. These amplifiers deliver high gain and slew rate response across the full audio band at low power, making them ideal for low-noise, low-distortion portable consumer audio players. Industrial applications using high-impedance sensors such as thermoelectric and IR sensors benefit from the high input impedance, 0.5 pA low input bias current, low offset drift, and sufficient bandwidth and response for low-gain applications. The ADA4691/ADA4692 family is rated for the -40°C to +125°C extended industrial temperature range. The ADA4691-2 is available in 10-lead LFCSP and 9-lead WLCSP packages. The ADA4692-2 is available in 8-lead SOIC and 8-lead LFCSP packages. The ADA4691-4 is available in a 16-lead LFCSP package. The ADA4692-4 is available in a 14-lead TSSOP package.
Applications
- Photodiode amplifier
- Sensor amplifier
- Portable medical equipment and instrumentation
- Portable audio: MP3, PDA, and smartphone communications
- Low-side current sensing
- ADC driver
- Active filter
- Sample and hold
Key features
- Low power: 180 μA (typical)
- Ultra-low input bias current: 0.5 pA (typical)
- Low noise: 16 nV/√Hz (typical)
- Bandwidth: 3.6 MHz
- Offset voltage: 500 μV (typical)
- Low offset voltage drift: 4 μV/°C (maximum)
- Low distortion: 0.003% THD+N
- 2.7 V to 5 V single supply or ±1.35 V to ±2.5 V dual supply
- Available in compact 2 mm×2 mm LFCSP package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | COS822SR#C693067COSINE · SOIC-8 | COSINE | SOIC-8 | 1,010 | ₹19.90 · 1,010 in stock | View |
 | ADA4692-2ARZ(UMW)#C22365316UMW · SOP-8 | UMW | SOP-8 | 5,970 | ₹30.87 · 5,970 in stock | View |
 | MAX4477ASA+T#C571001MAXIM · SO-8 | MAXIM | SO-8 | 15 | ₹705.36 · 15 in stock | View |
 | SL620D-S08#C54950729Slkor · SOP-8 | Slkor | SOP-8 | 3,990 | ₹43.47 · 3,990 in stock | View |
| TLV2632IDR(UMW)#C22373393UMW · SOP-8 | UMW | SOP-8 | 2,495 | ₹39.72 · 2,495 in stock | View | |
