ADM8828ARTZ-REEL7
120kHz Inverted -5.5V~-1.5V 25mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS3 CompliantActive
Switched-Capacitor Voltage Inverter with Shutdown
- Manufacturer
- ADI
- Manufacturer part #
- ADM8828ARTZ-REEL7
- Store part #
- C658576
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
71 in stock
#C658576
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹817.32 | ₹817.32 |
| 10+ | ₹701.53 | ₹7,015.30 |
| 30+ | ₹631.10 | ₹18,933.00 |
| 100+ | ₹571.79 | ₹57,179.00 |
1 × ₹817.32
₹817.32
excl. GST
₹964.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel

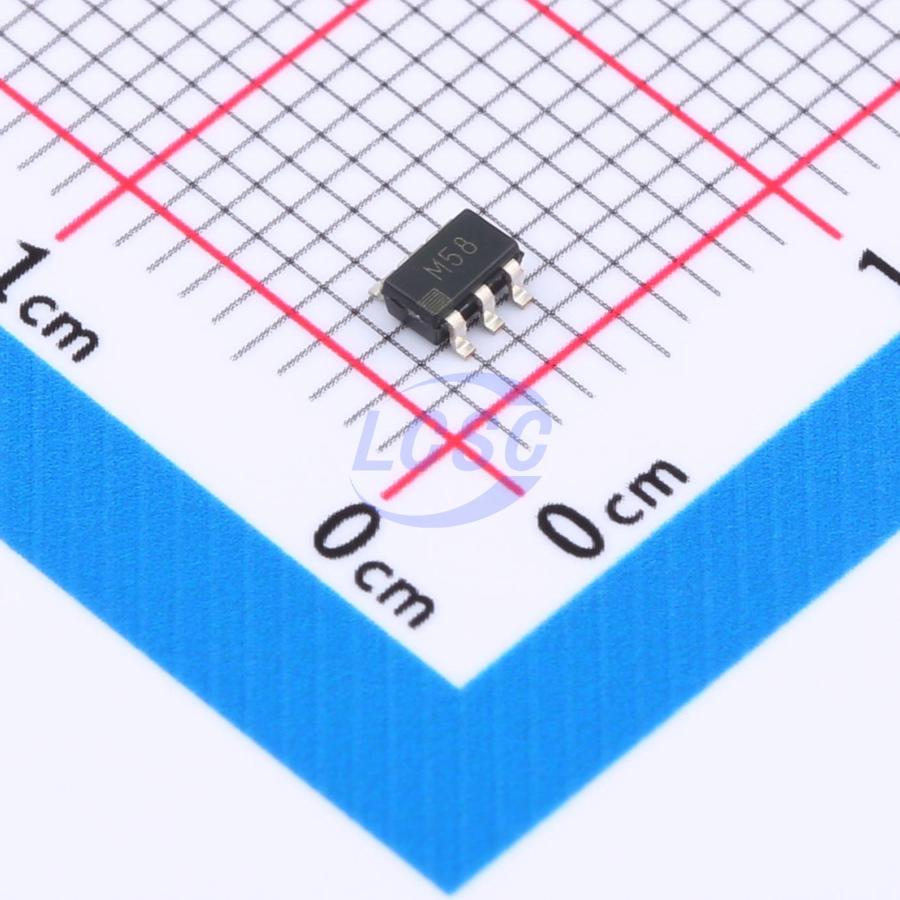

ADM8828ARTZ-REEL7
₹817.32 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 120kHz
- Function
- Inverted
- Features
- Low-power standby
- Operating Voltage
- 1.5V~5.5V
- Output Voltage
- -5.5V~-1.5V
- Output Current
- 25mA
- Energy Efficiency
- 90%
- Quiescent Current
- 1mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.82 g
Overview
The ADM8828/ADM8829 is a charge- pump voltage inverter which may be used to generate a negative supply from a positive input. Input voltages ranging from +1.5 V to +5.5 V can be inverted into a negative +1.5 V to - 5.5 V output supply. This inverting scheme is ideal for generating a negative rail in single power- supply systems. Only two small external capacitors are needed for the charge pump. Output currents up to 25 mA with greater than 99% efficiency are achievable. The ADM8828 also features a low power shutdown (SHDN) pin. This can be used to disable the device and reduce the quiescent current to 20 nA. The ADM8828/ADM8829 is available in a 6- lead SOT- 23 package.
Applications
- Handheld Instruments
- LCD Panels
- Cellular Phones
- PDAs
- Remote Data Acquisition
- Op Amp Power Supplies
Key features
- Inverts Input Supply Voltage
- 99% Voltage Conversion Efficiency
- 25 mA Output Current
- Shutdown Function
- Requires Only Two Capacitors
- 1 μF Capacitors
- 18 Ω Output Resistance
- +1.5 V to +5.5 V Input Range
- 600 μA Quiescent Current
- 20 nA Shutdown Current (ADM8828)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ADM8829ARTZ-REEL7#C658578ADI · SOT-23-6 | ADI | SOT-23-6 | On request | ₹305.31 · 0 in stock | View |
| ADM8829ARTZ-REEL#C658577ADI · SOT-23-6 | ADI | SOT-23-6 | On request | ₹237.84 · 0 in stock | View | |
