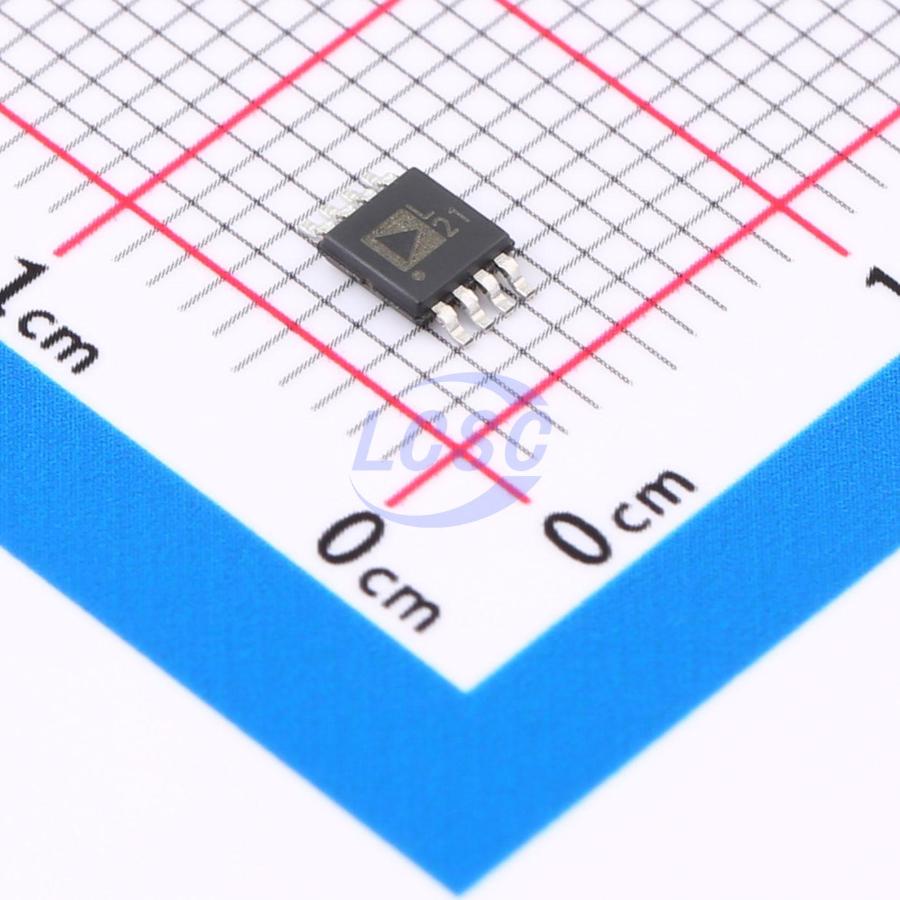

ADP3333ARMZ-5-R7

The ADP3333 is a member of the ADP333x family of precision low dropout (LDO) anyCAP voltage regulators. Pin compatible with the MAX8860, the ADP3333 operates with a wider input voltage range of 2.6 V to 12 V and delivers a load current up to 300 mA. ADP3333 stands out from other conventional LDOs with a novel architecture and an enhanced process that enables it to offer performance advantages over its competition. Its patented design requires only a 1.0 μF output capacitor for stability. This device is insensitive to output capacitor equivalent series resistance (ESR) and is stable with any good quality capacitor, including ceramic (MLCC) types for space-restricted applications. The ADP3333 achieves exceptional accuracy of ±0.8% at room temperature and ±1.8% over temperature, line, and load variations. The dropout voltage of the ADP3333 is only 140 mV (typical) at 300 mA. This device also includes a safety current limit, thermal overload protection, and a shutdown feature. In shutdown mode, the ground current is reduced to less than 1 μA. The ADP3333 has ultralow quiescent current, 70 μA (typical) in light load situations.

Applications

• Cellular phones
• PCMCIA cards
• Personal digital assistants (PDAs)
• DSP/ASIC supplies

Key features

• High accuracy over line and load: ±0.8% @ 25°C, ±1.8% over temperature
• Ultralow dropout voltage: 230 mV (maximum) @ 300 mA
• Requires only C_OUT = 1.0 μF for stability; anyCAP is stable with any type of capacitor (including MLCC)
• Current and thermal limiting
• Low noise
• Low shutdown current: <1 μA
• 2.6 V to 7.28 V supply range
• -40°C to +85°C ambient temperature range
• Ultrasmall 8-lead MSOP package
